General
Product Type |

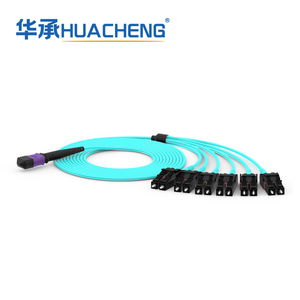

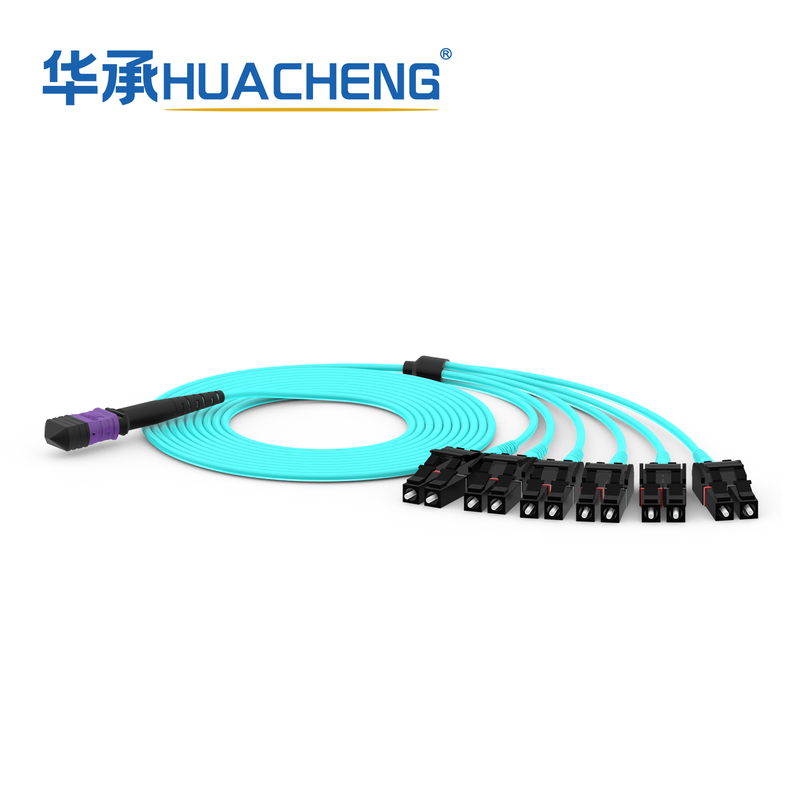

MPO-LC Harness |
Cable Type |
Interconnect, Indoor |
Fiber Type |
MultiMode, 50um, OM3/OM4/OM5 |
Fiber Count |
12 |
Polarity |
TIA-568 Type-B |
Max Insertion Loss, Assembly |
0.6 dB |
Length, Assembly |
1~100m |
Standards and Regulatory Compliance
Cable Qualification Standards |
ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-20 |
Assemblies Qualification Standards |
TIA-568-C.3 |
Flame Rating Standards |
UL-1666 |
RoHS |
Compliant with 2011/65/EU and (EU) 2015/863 |
Environmental Conditions
Operating Temperature |
-20°C to 70°C |
Installation Temperature |
-10°C to 60°C |
Transport and Storage Temperature |
-40°C ~ 70°C |
Cable Design
Cable Type |
250um, Loose Tube, Non-armored |
Fiber Count |
12 |
Outer Diameter, Jacket |
2.0 mm |
Color, Jacket |
Aqua |
Tensile Strength Elements |
Aramid Yarns |
Flame Rating |
Riser (OFNR) |
Mechanical Specifications
Max. Tensile Strength, Short-Term |
100 N |
Max. Tensile Strength, Long-Term |
30 N |
Max. Crush Strength, Short-Term |
35 N/cm |
Min. Bend Radius Installation |
30 mm |
Min. Bend Radius Operation |
20 mm |
Optical Characteristics
Fiber Type |
Bend Insensitive Multimode, OM3/OM4/OM5 |
Maximum Attenuation |
2.8 dB/km / 1.0 dB/km |
Wavelengths |
850 nm / 1300 nm |
Fiber Compliance |
IEC 60793-2-10 |
Fiber Core Diameter |
50 µm |
Minimum Effective Modal Bandwidth (EMB) |
OM4/5: 4700 MHz*km @850nm
OM3: 2000 MHz*km @850nm
OM5: 2470 MHz*km @953nm |
Min. Overfilled Launch (OFL) Bandwidth |
OM4/5: 3500 MHz*km @850nm
OM3: 1500 MHz*km @850nm
OM5: 1850 MHz*km @850nm |
Max. Macro Loss, 7.5mm Mandrel Radius, 2 Turn |
0.2 dB @850nm (Uncabled) |
Max. Macro Loss, 15mm Mandrel Radius, 2 Turn |
0.1 dB @850nm (Uncabled) |
Dimensions
Connector A
Connector Type |
MPO, PC |
Guided PIN |
Non-Pinned |
Ferrule Type |
1 × 12 |
Ferrule Material |
Composite |
Housing Color |
Yellow |
Insertion Loss, Maximum |
0.35 dB |
Return Loss, Minimum |
20 dB |
Boot Type |
Round |
Boot Color |
Black |
Boot Length |
27 mm |
Connector B
Connector Type |
Uniboot LC, UPC |
Guided PIN |
Ceramic |
Housing Color |
Aqua |
Insertion Loss, Maximum |
0.25 dB |
Return Loss, Minimum |
55 dB |
Boot Type |
Round |
Boot Color |
Black |
Boot Length |
27 mm |
Fanout - Connector B Side
Leg Count |
6 |
Leg Diameter |
2.0 mm |
Leg Length |
120 cm |
Leg Color |
Aqua |
Furcation Type |
Heat Shrink |
Furcation Size |
Round, 2.6 mm |
Furcation Length |
30 mm |
Packaging Information
Packaging Type |
Plastic bag |
Units per Delivery |
1 |
