Huacheng's GYXTW is constructed by inserting 250µm optical fibers into a loose tube made of a high-modulus material, which is filled with a water-resistant compound. A layer of double-sided coated plastic steel strip is longitudinally wrapped outside the loose casing. Water-blocking material is added between the steel strip and the loose casing to ensure the compactness and longitudinal water-blocking of the cable. Two parallel steel wires are placed on both sides, and the cable is then formed by extruding a polyethylene sheath.
Characteristics
•Good compression resistance and flexibility
•Coated steel tape enhances the cable's moisture resistance
•Two parallel steel wires ensure the cable's tensile strength

GYTS layer-stranded optical cable is often used as an outdoor communication cable with a large core count structure, suitable for direct burial and pipeline installation. It is widely applied in long-distance and inter-office communication transmission, serving as an outdoor optical transmission line in core networks and MANs, and can also be used as an outdoor optical feeder and distribution line in access networks.
Characteristics
•Excellent mechanical and temperature characteristics
•Superior UV radiation resistance
•Filled with water-blocking gel inside the tubes to protect the optical fibers
•Double-sided coated steel tape enhances the cable's moisture resistance
•Good compression resistance and flexibility

GYTA optical cable is constructed by placing 250μm optical fibers into loose tubes made of a high-modulus material, which are filled with a water-blocking compound. At the center of the cable core is a metal strength member; for some core-count cables, a layer of polyethylene (PE) is extruded over this strength member. The loose tubes are stranded around the central strength member to form a compact, circular cable core, with all gaps within the core filled with water-blocking filler. An aluminum-plastic laminated tape (APL) is longitudinally applied, followed by the extrusion of a polyethylene outer sheath to complete the cable.
Characteristics
•Good mechanical properties and temperature characteristics
•The loose tubes are filled with water-blocking gel to protect the optical fibers
•The aluminum-plastic laminated tape (APL) enhances the cable's moisture resistance
•The specially designed compact cable structure effectively prevents sleeve retraction

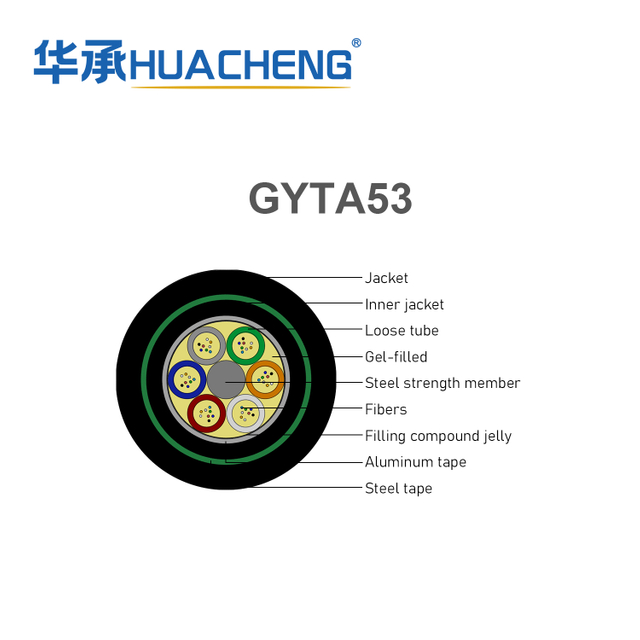

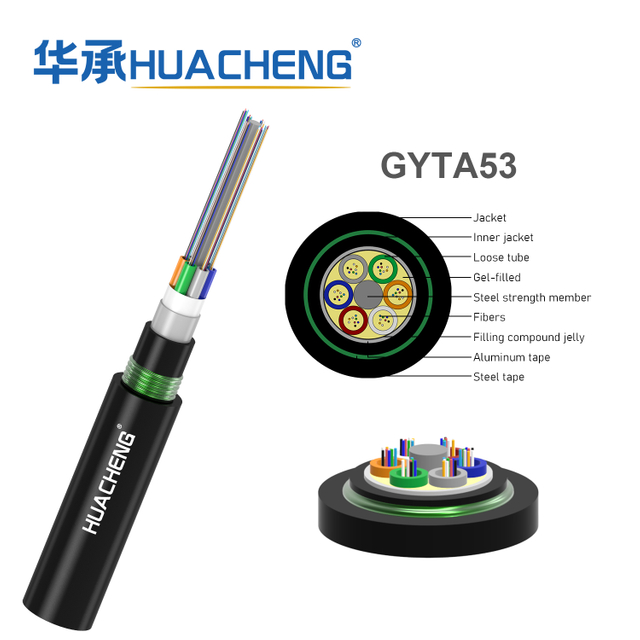

The 250μm optical fibers are placed in a loose tube made of a high-modulus material, which is filled with a water-resistant compound. At the center of the cable core is a metal reinforcing core; for some fiber optic cables, a layer of polyethylene (PE) is extruded over this core. The loose sleeves (and filler rods) are stranded around the central reinforcing core to form a compact, circular cable core, with all gaps within the core filled with water-blocking filler. A polyethylene inner sheath is extruded after the aluminum-plastic laminated tape (APL) is longitudinally applied, followed by the extrusion of a polyethylene outer sheath after the double-sided plastic-coated steel tape (PSP) is longitudinally applied, completing the cable structure.
Characteristics
•Good mechanical properties and temperature characteristics
•The tubes are filled with water-blocking gel to protect the optical fibers
•Good compression resistance and flexibility
•The specially designed compact cable structure effectively prevents sleeve retraction
•Coated aluminum tape enhances the cable's moisture resistance
•Double-sided coated steel tape enhances the cable's moisture resistance

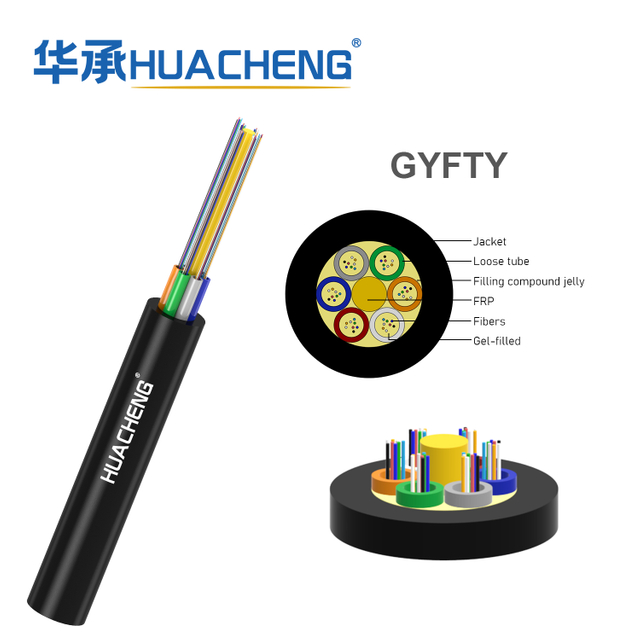

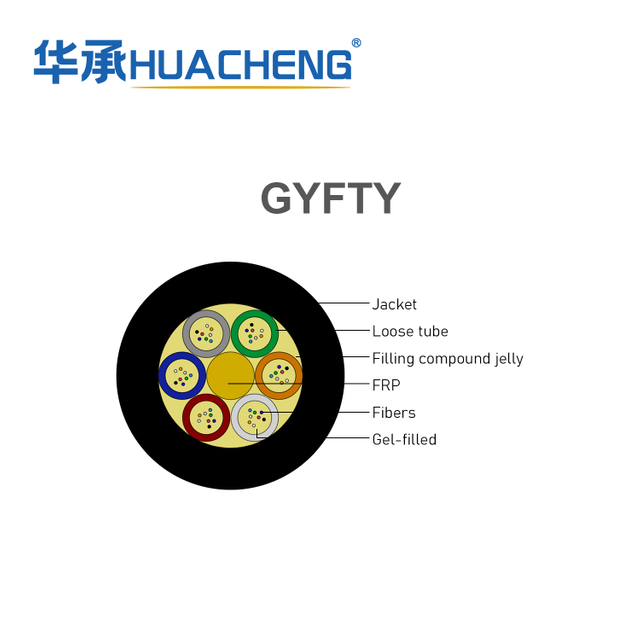

GYFTY optical cable is constructed by placing 250μm optical fibers into loose tubes made of a high-modulus material, which are filled with a water-blocking compound. At the center of the cable core is a glass fiber reinforced plastic (FRP) strength member. The loose tubes (and filler rods) are stranded around the central strength member to form a compact, circular cable core, with all gaps within the core filled with water-blocking filler. A polyethylene sheath is extruded over the cable core to complete the cable.
Characteristics
•Good mechanical properties and temperature characteristics
•The loose tube material itself has excellent hydrolysis resistance and high strength
•The tubes are filled with special water-blocking gel, providing critical protection for the optical fibers
•Good compression resistance and flexibility

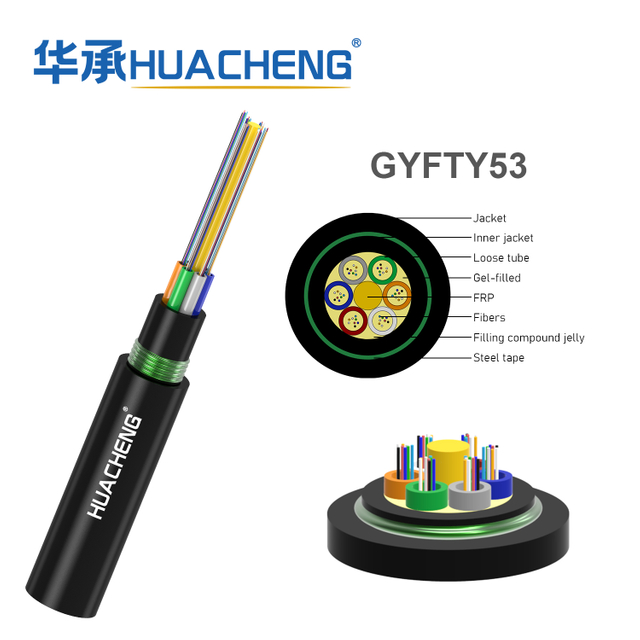

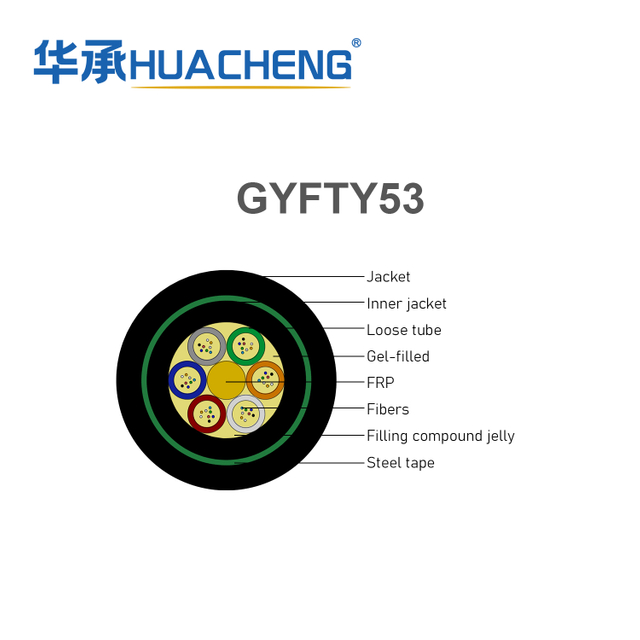

GYFTY53 is a non-metallic reinforced anti-rodent (flame-retardant) optical cable. The optical fibers are placed into PBT loose tubes, which are filled with water-blocking filling compound. At the center of the cable core is a non-metallic strength member, and the gaps are filled with water-blocking filling compound. The loose tubes (and filler rods) are stranded around the central strength member to form a compact, circular cable core. A layer of sheathing material is extruded over the cable core, followed by lamination with steel tape and then extrusion of a polyethylene (flame-retardant) outer sheath.
Characteristics
•Good mechanical properties and temperature characteristics
•The loose tube material itself has excellent hydrolysis resistance and high strength
•The tubes are filled with special water-blocking gel, providing critical protection for the optical fibers
•Good compression resistance and flexibility

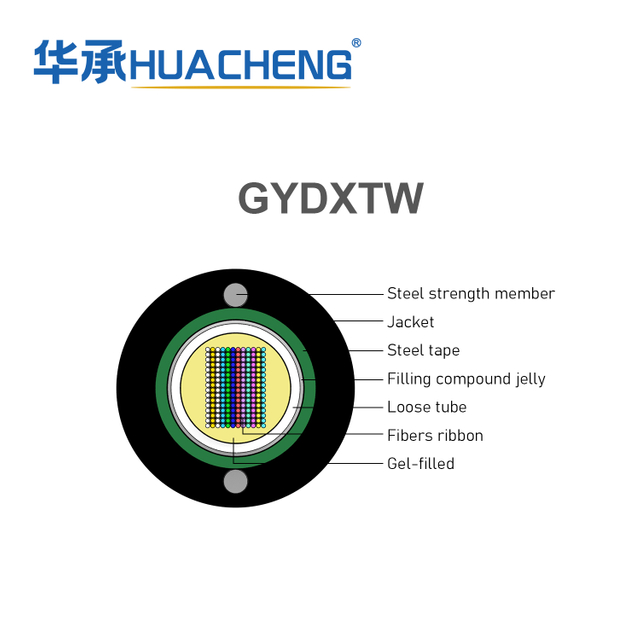

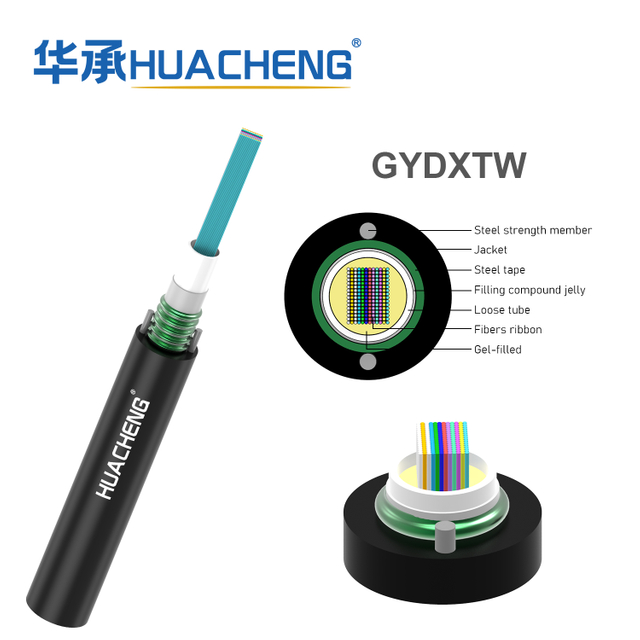

The GYDXTW Unitube Light-Armored Ribbon Fiber Cable is a high-density optical transmission solution, engineered to deliver reliable performance in both outdoor and indoor environments. Combining a central loose-tube structure with lightweight armored protection and ribbon fiber technology, this cable balances durability, space efficiency, and ease of installation for modern communication networks.
Characteristics
•12-core optical fiber ribbon stack
•Central loose-tube structure for a compact, lightweight design
•Double-sided plastic-coated corrugated steel tape armor
•Parallel double steel wire strength member with UV-resistant and weather-resistant polyethylene outer sheath

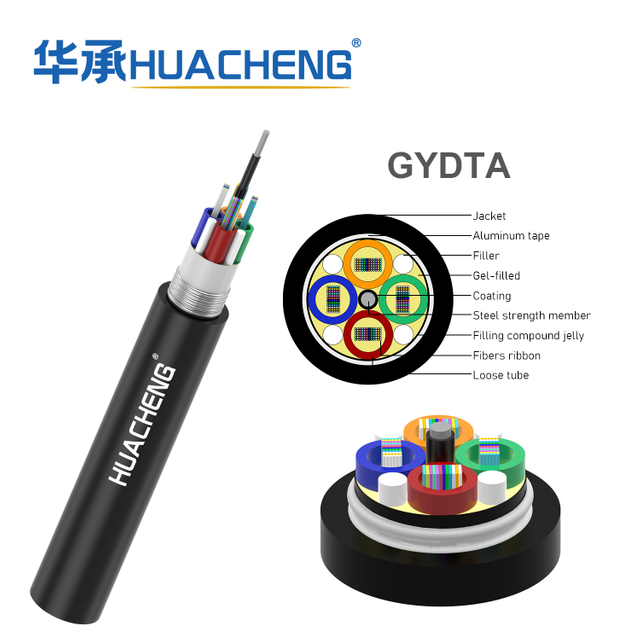

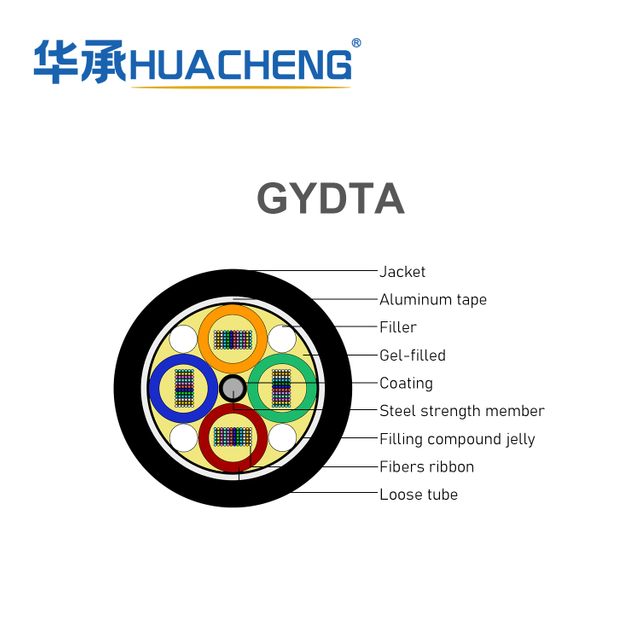

GYDTA optical cable is an outdoor fiber ribbon cable for communication applications, featuring metal strength members, loose tube stranded filled construction, and an aluminum‑polyethylene bonded sheath. It incorporates a full‑section water‑blocking structure to ensure reliable optical signal transmission. The basic structure of the cable generally consists of a cable core, reinforcing steel wires, filling compounds, and a sheath, with an additional outer sheath used in some configurations.
Characteristics
•12-core fiber ribbon stack
•Stranded cable structure
•Central steel wire reinforcement
•Moisture‑resistant aluminum tape bonded to polyethylene outer sheath
•Compact structure and light weight

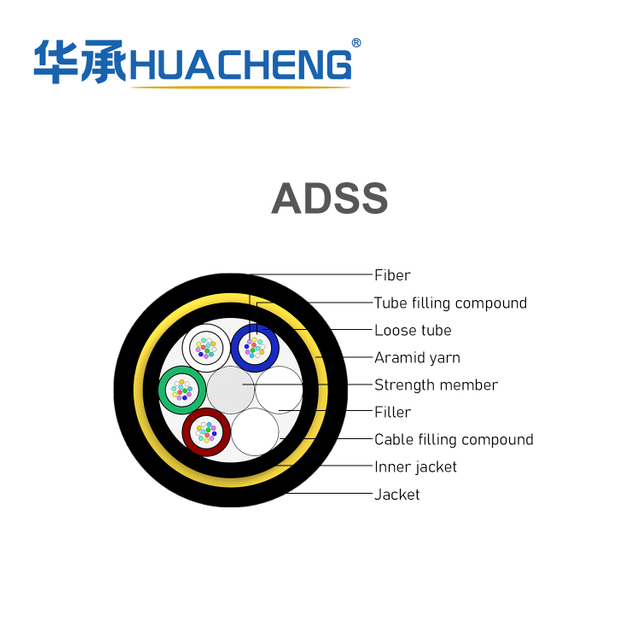

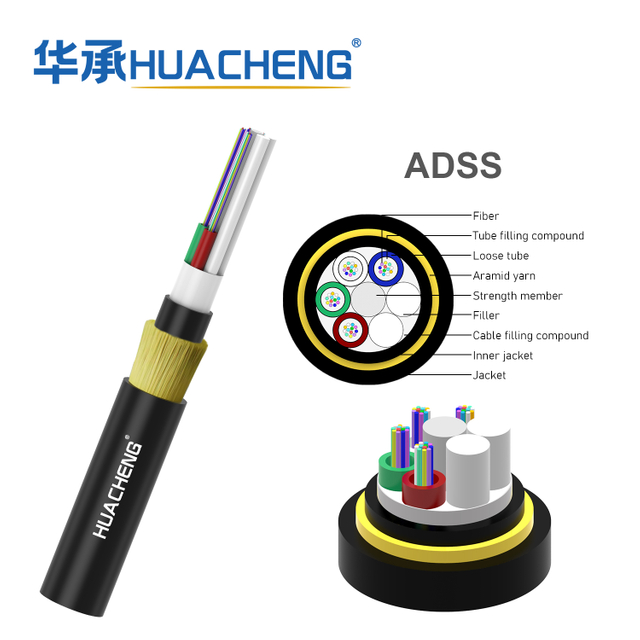

ADSS all-dielectric self-supporting optical cable,non-metallic reinforcement;tension resistance,self-supporting,high insulation,no induction,small diameter,light,easy construction and economic.It is a combination of optical fiber bundle wound on the center reinforcement;through insulation,waterproof,reinforcement,sheath and other protective measures made.
Characteristics
•Can be instaed without shutting off the power
•With AT sheath,excellent electric trace resistance
•Large span,light weight,small cable diameter
•It has excellent tensile properties and temperature characteristics

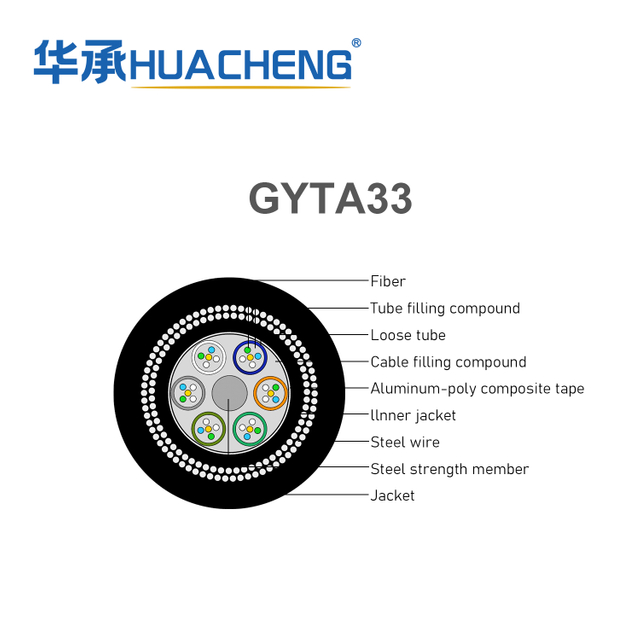

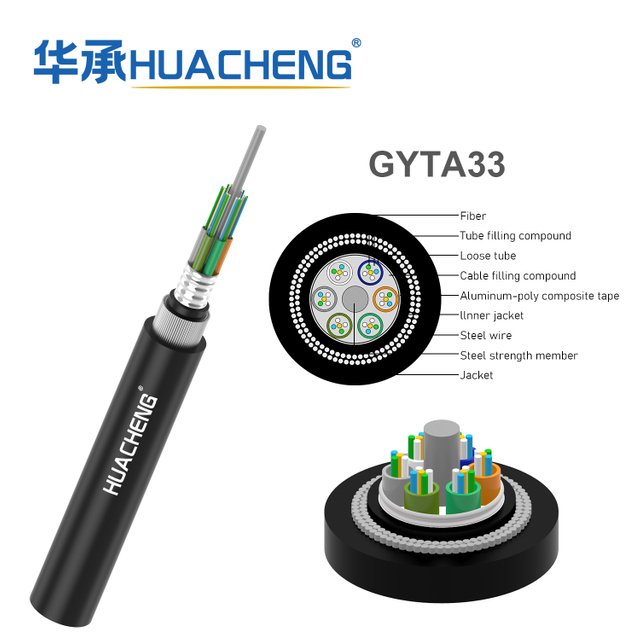

The structure of the GYTA33 optical cable involves placing 250μm optical fibers into loose tubes made of a high-modulus material, which are filled with water-blocking compound. The gaps within the cable core are also filled with water-blocking material. After longitudinally applying an aluminum-polyethylene laminated tape, a polyethylene inner sheath is extruded. This is followed by double-layer single fine round steel wire armoring, and finally a polyethylene outer sheath is extruded to complete the cable.
Characteristics
•Double-layer single fine round steel wire armoring provides the cable with excellent tensile strength.
•The loose tube material itself offers outstanding hydrolysis resistance and high mechanical strength.
•The tubes are filled with special water-blocking gel, delivering critical protection for the optical fibers.
•The cable exhibits excellent compression resistance and flexibility.

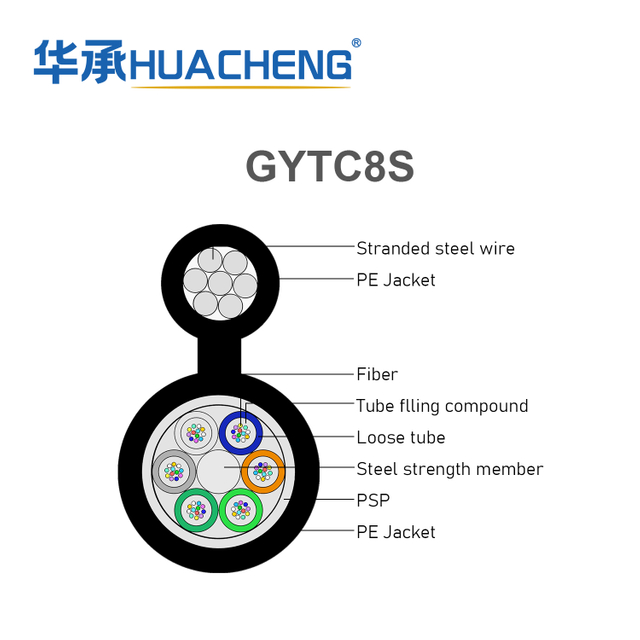

The structure of the GYTC8S optical cable involves placing 250μm optical fibers into loose tubes made of a high-modulus material, which are filled with a water-resistant compound. At the center of the cable core is a metal strength member, around which the loose tubes (and filler rods) are stranded to form a compact, circular cable core. The cable core is longitudinally covered with a plastic-coated aluminum tape (APL), then integrated with steel stranded wires into a figure-8 polyethylene sheath.
Characteristics
•Wire stranded wire has high tensile strength,easy to support overhead laying,reduce the installation cost
•Optical cable has excellent mechanical and temperature characteristics
•Cable core filling,good water blocking function
•Coated with steel tape,improve the anti-moisture ability of optical cable

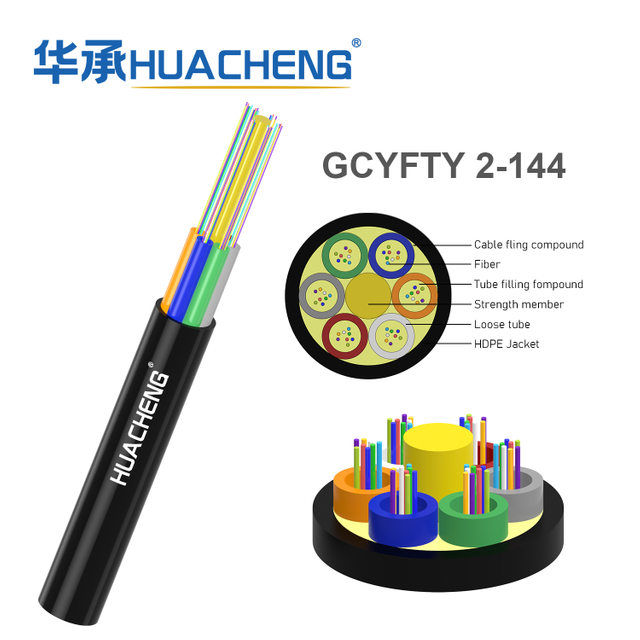

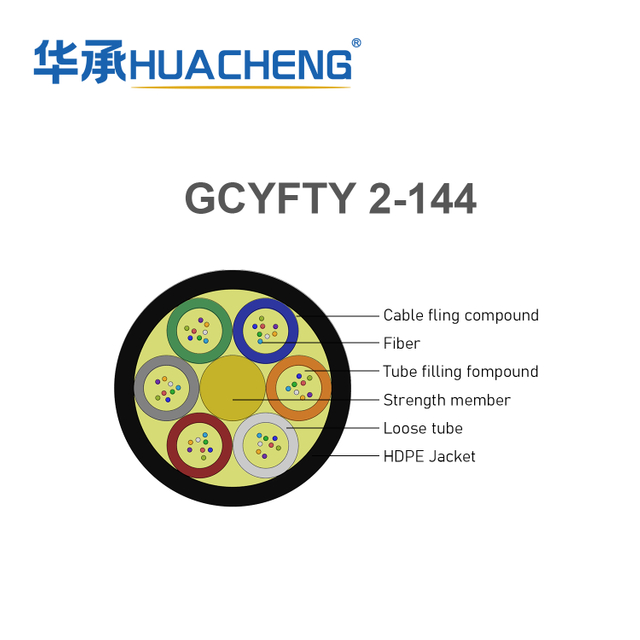

According to customer requirements, we can provide center beam tube air-blown micro optical cables (GCYFXTY, 2–144 cores).
With the rapid development of broadband networks, the shortage of urban pipeline resources, and rising construction costs, higher demands are placed on the utilization rate of pipeline resources, as well as the cost and efficiency of construction and maintenance. The air-blown micro optical cables provided by Huacheng can effectively utilize existing pipeline resources, save pipeline space, reduce construction costs, improve construction efficiency, and allow for the reuse of the cables.
Characteristics
•Adapted to the gas blowing pipe laying
•To adapt to the temperature:-40℃~+70℃
•Make full use of existing pipeline facilities,such as rainwater pipe and cable pipe laying
•Grooves with oil pipeline laying
•Pavement grooved microtubule microcable laying

The all-dry fiber optic cable is not filled with oil paste,but uses dry super absorbent resin(SAP),SAP has better drying and moisture-proof ability than traditional oil paste,providing better water blocking effect for optical fiber and vertical water blocking.Due to the fiber and cable core between there is no ointment,fiber connection without wiping ointment,cleaning agent and wiping paper,more environmental protection also reduces the cost of cable connection,while greatly improving the efficiency of fiber welding.
Characteristics
•Special casing technology,precise yu long craft,strict material selection,make the product stable and reliable
•Choose chemical performance is stable,and can absorb 400 times its own volume moisture of SAP block water
•Casing yarn no ointment,shine in the water,in place of a simple and efficient
•After ten years of practical application case,the product performance is stable and reliable
