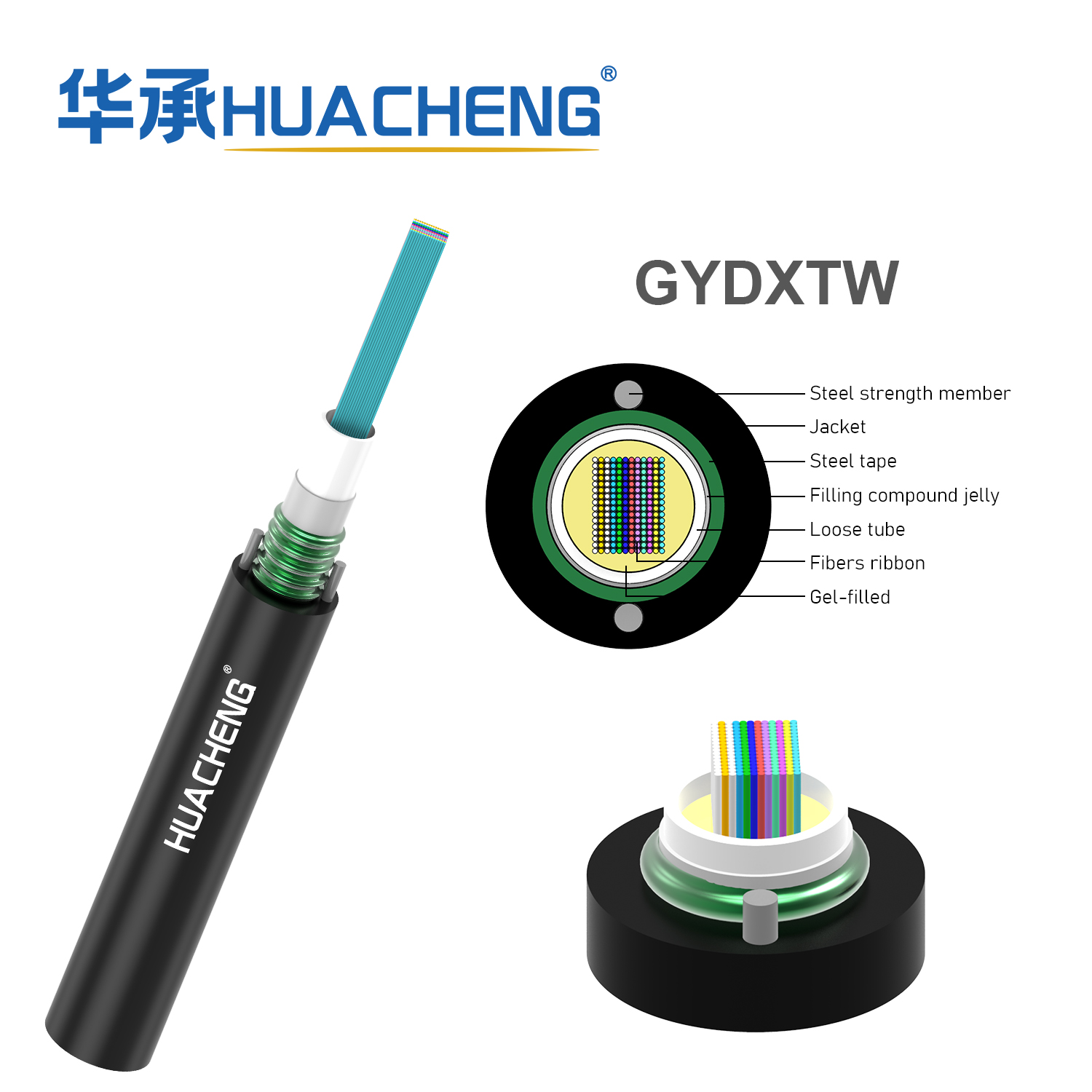

HUACHENG GYDXTW UNITUBE LIGHT-ARMORED RIBBON FIBER CABLE

The GYDXTW Unitube Light-Armored Ribbon Fiber Cable is a high-density optical transmission solution, engineered to deliver reliable performance in both outdoor and indoor environments. Combining a central loose-tube structure with lightweight armored protection and ribbon fiber technology, this cable balances durability, space efficiency, and ease of installation for modern communication networks.
Characteristics

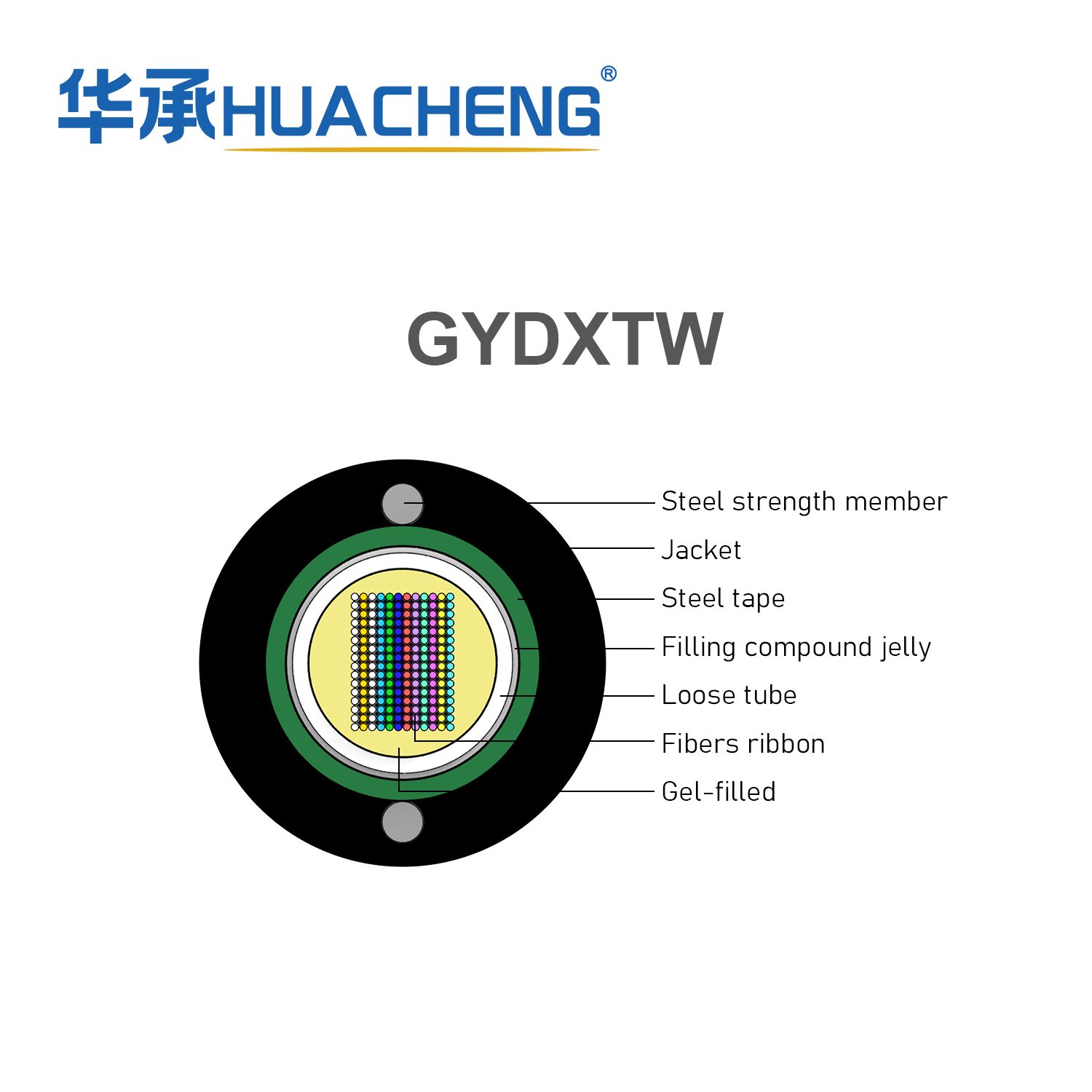

•12-core optical fiber ribbon stack
•Central loose-tube structure for a compact, lightweight design
•Double-sided plastic-coated corrugated steel tape armor
•Parallel double steel wire strength member with UV-resistant and weather-resistant polyethylene outer sheath
Availability:
Inquire Add to Basket

  • GYDXTW

  • HUACHENG

Product Features

Fiber Optic Cable Performance Parameters

Tensile Strength Crush Strength Bending Radius
Long Term (N) Short Term (N) Long Term (N/100mm) Short Term (N/100mm) Dynamic Static
600 1500 1000 3000 20D 10D
600 1500 1000 3000 20D 10D
600 1500 1000 3000 20D 10D
600 1500 1000 3000 20D 10D
600 1500 1000 3000 20D 10D


Fiber Optic Cable Structural Parameters

Cable code Cable Diameter (mm)
GYDXTW-12-60xn 13.9
GYDXTW-72-96xn 15.1
GYDXTW-108-144xn 16.3
GYDXTW-156-204xn 17.9
GYDXTW-216xn 18.4


Product Features
Inquire
