HUACHENG GYTA53 Stranded Loose Tube Armored Cable

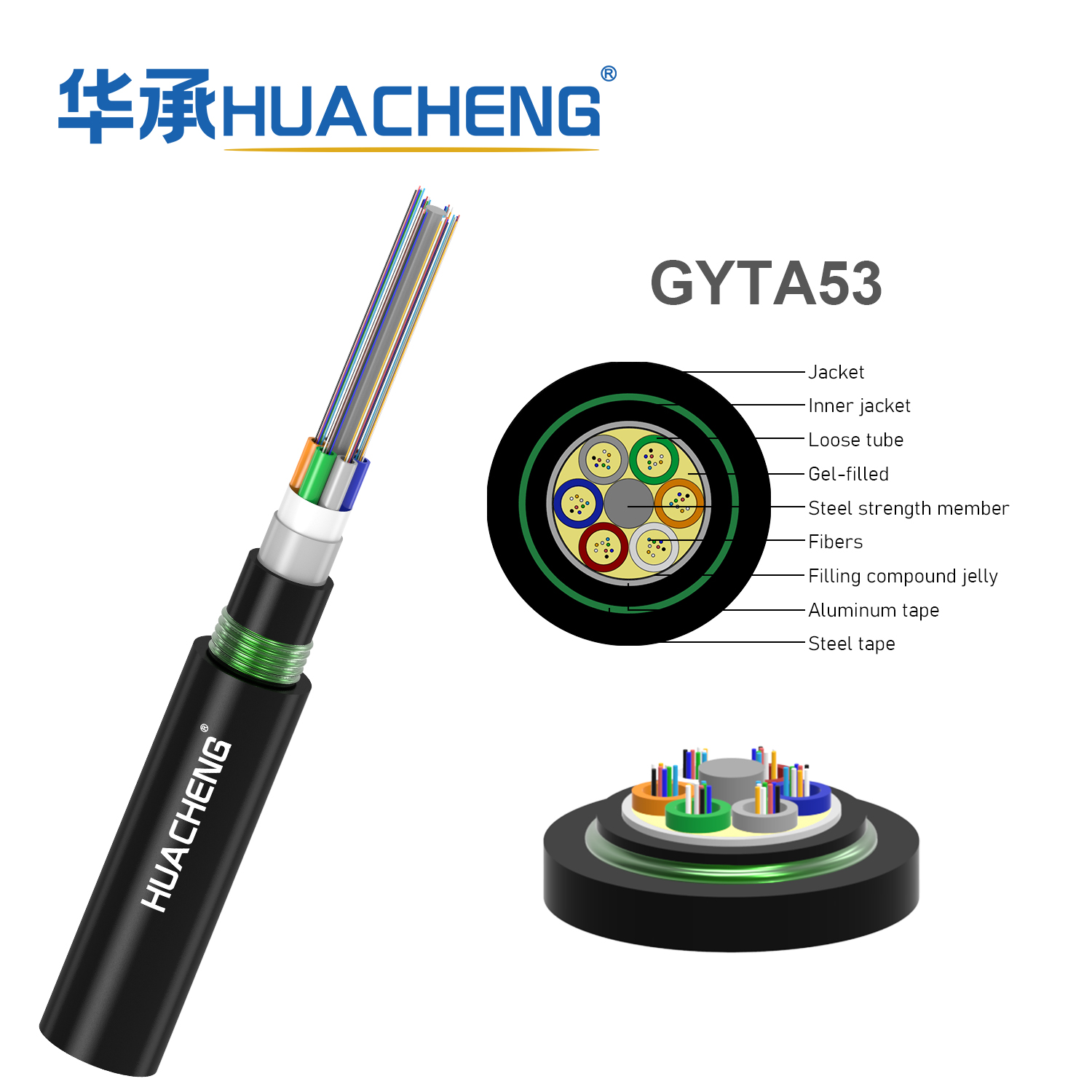

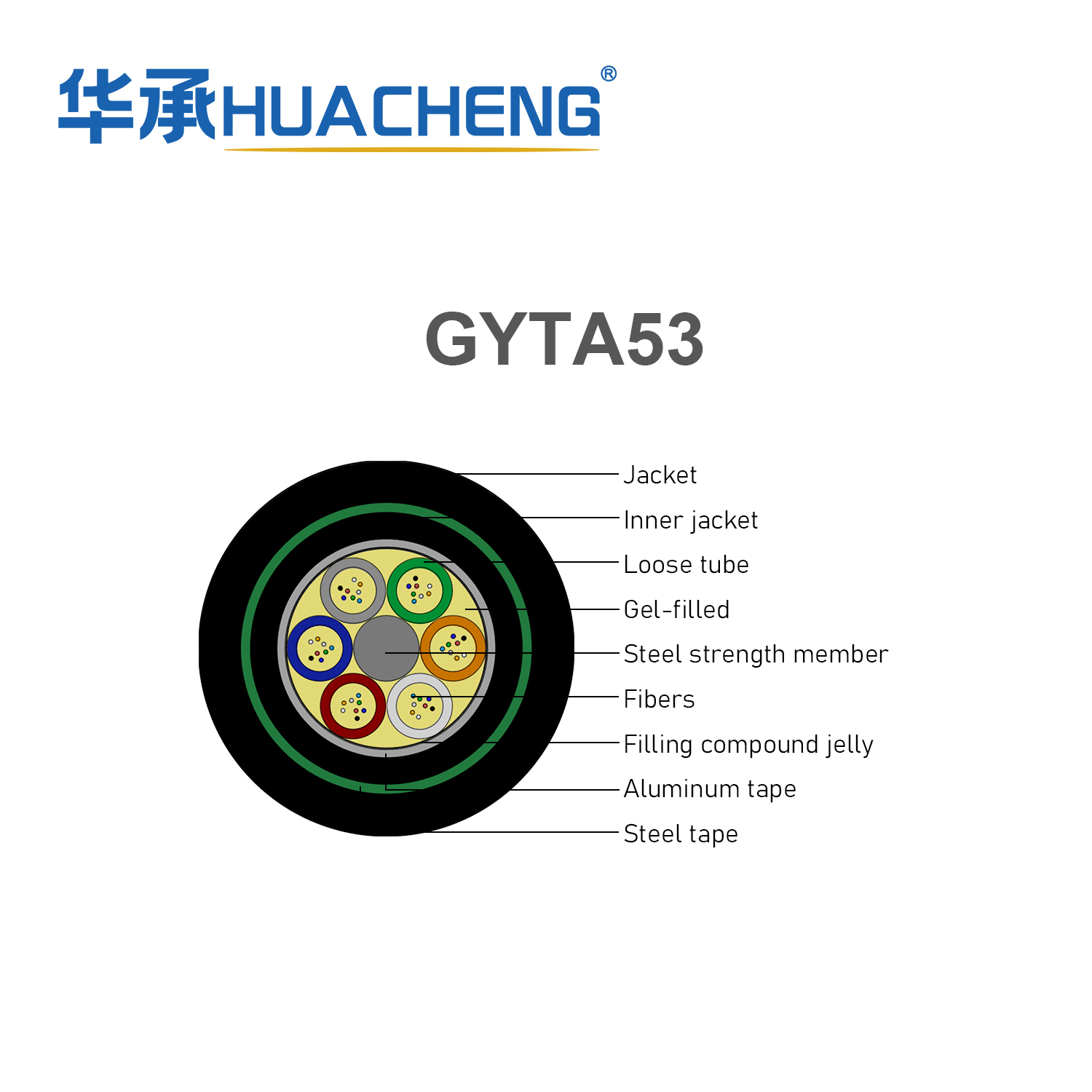

The 250μm optical fibers are placed in a loose tube made of a high-modulus material, which is filled with a water-resistant compound. At the center of the cable core is a metal reinforcing core; for some fiber optic cables, a layer of polyethylene (PE) is extruded over this core. The loose sleeves (and filler rods) are stranded around the central reinforcing core to form a compact, circular cable core, with all gaps within the core filled with water-blocking filler. A polyethylene inner sheath is extruded after the aluminum-plastic laminated tape (APL) is longitudinally applied, followed by the extrusion of a polyethylene outer sheath after the double-sided plastic-coated steel tape (PSP) is longitudinally applied, completing the cable structure.
Characteristics
•Good mechanical properties and temperature characteristics
•The tubes are filled with water-blocking gel to protect the optical fibers
•Good compression resistance and flexibility
•The specially designed compact cable structure effectively prevents sleeve retraction
•Coated aluminum tape enhances the cable's moisture resistance
•Double-sided coated steel tape enhances the cable's moisture resistance
Availability:
  • GYTA53

  • HUACHENG
