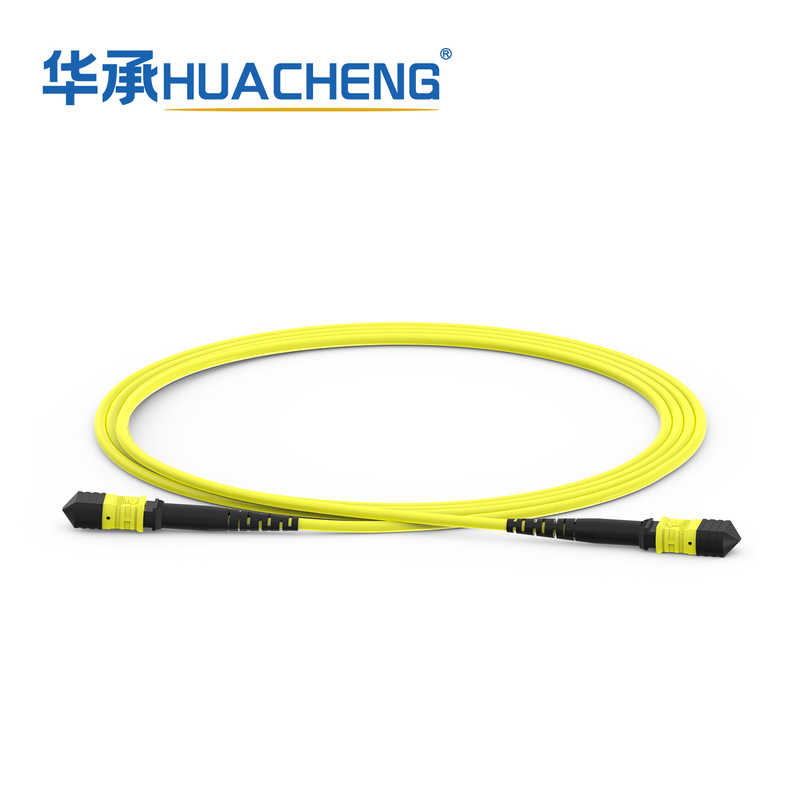

HUACHENG 8F-MPO Jumper, Bend Insensitive Single Mode, 2.0mm, Riser

This 8F fiber MPO-MPO jumper is designed for high-density fiber connectivity in data centers, providing a reliable and compact solution for 40G/100G/400G single-mode fiber systems. It features 8-fiber MPO connectors ( Pinned / Non-pinned ) with low insertion loss, stable perfor-mance and excellent durability.

Supporting seamless deployment in structured cabling, and switch-to- switch connections. This jumper ensures efficient signal transmission and easy system upgrades for high-speed network environments.

Availability:



Inquire Add to Basket

Model:
MPO Jumper
Brand:
Huacheng
Fiber Type:
SM
Fiber Count:
8
Flame Rating:
Riser (OFNR)

Specification

Downloads

General

Product Type	MPO-MPO Jumper
Cable Type	Interconnect, Indoor
Fiber Type	Bend Insensitive Single-mode (OS2)
Fiber Count	8
Polarity	TIA-568 Type-B
Max Insertion Loss, Assembly	0.7 dB
Length, Assembly	50 m

Standards and Regulatory Compliance

Cable Qualification Standards	ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-20
Assemblies Qualification Standards	TIA-568-C.3
Flame Rating Standards	UL-1666
RoHS	Compliant with 2011/65/EU and (EU) 2015/863

Environmental Conditions

Operating Temperature	-20°C to 70°C
Installation Temperature	-10°C to 60°C
Transport and Storage Temperature	-40°C ~ 70°C

Cable Design

Cable Type	250um, Loose Tube, Non-armored
Fiber Count	8
Outer Diameter, Jacket	2.0 mm
Color, Jacket	Yellow
Tensile Strength Elements	Aramid Yarns
Flame Rating	Riser (OFNR)

Mechanical Specifications

Max. Tensile Strength, Short-Term	100 N
Max. Tensile Strength, Long-Term	30 N
Max. Crush Strength, Short-Term	35 N/cm
Min. Bend Radius Installation	30 mm
Min. Bend Radius Operation	20 mm

Optical Characteristics

Fiber Type	Bend Insensitive Single-mode (OS2)
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Compliance	ITU-T G.657.A1 and ITU-T G.652.D
Max. Macro Loss, 10 mm Mandrel Radius, 1 Turn	0.75 dB @1550nm, 1.5 dB @1625nm (Uncabled)
Max. Macro Loss, 15 mm Mandrel Radius, 10 Turn	0.25 dB @1550nm, 1.0 dB @1625nm (Uncabled)

Dimensions

Cable Weight

4.2 kg/km

Connector A

Connector Type	MPO, APC
Guided PIN	Non-Pinned
Ferrule Type	1 × 12
Ferrule Material	Composite
Housing Color	Yellow
Insertion Loss, Maximum	0.35 dB
Return Loss, Minimum	65 dB
Boot Type	Round
Boot Color	Black
Boot Length	27 mm

Connector B

Connector Type	MPO, APC
Guided PIN	Non-Pinned
Ferrule Type	1 × 12
Ferrule Material	Composite
Housing Color	Yellow
Insertion Loss, Maximum	0.35 dB
Return Loss, Minimum	65 dB
Boot Type	Round
Boot Color	Black
Boot Length	27 mm
