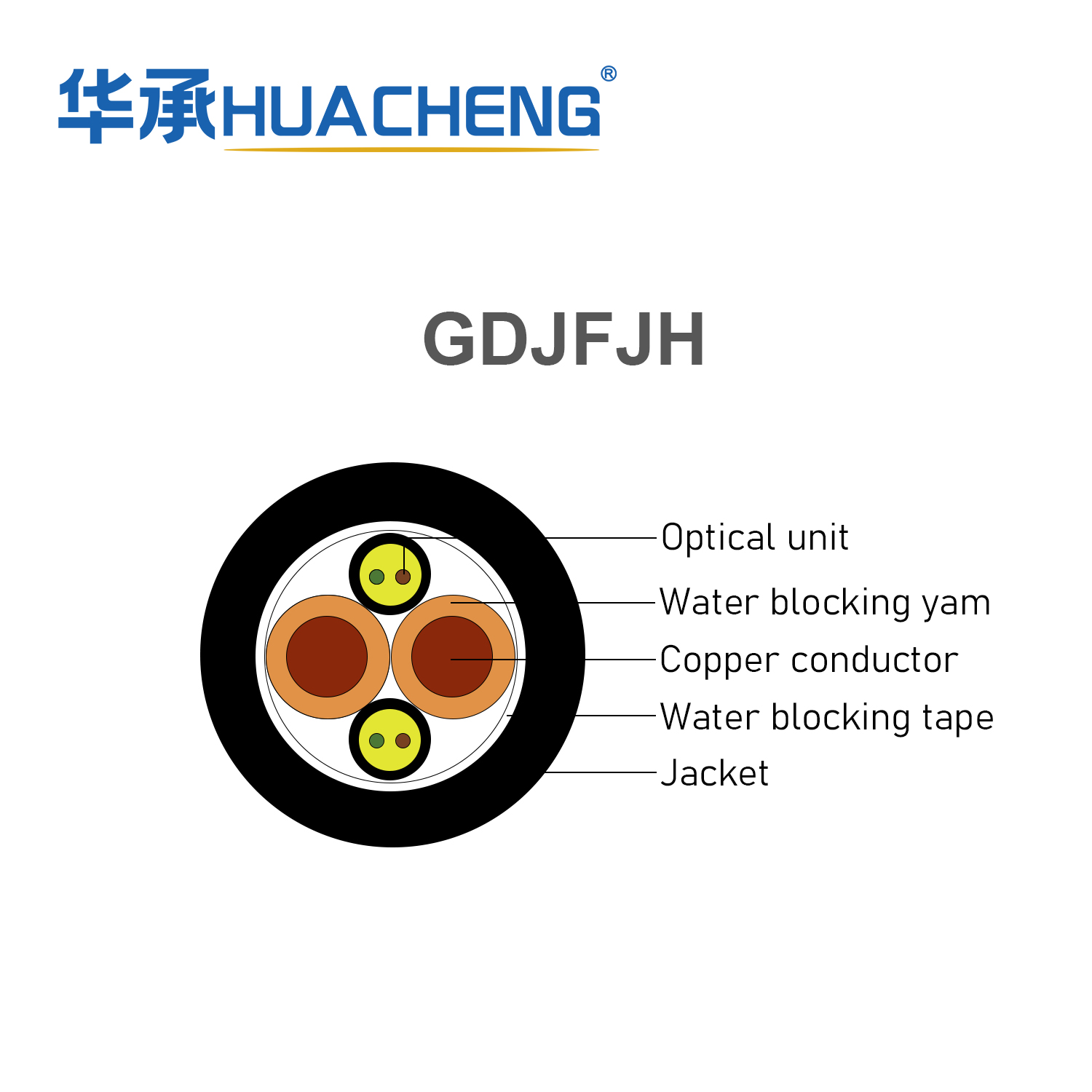

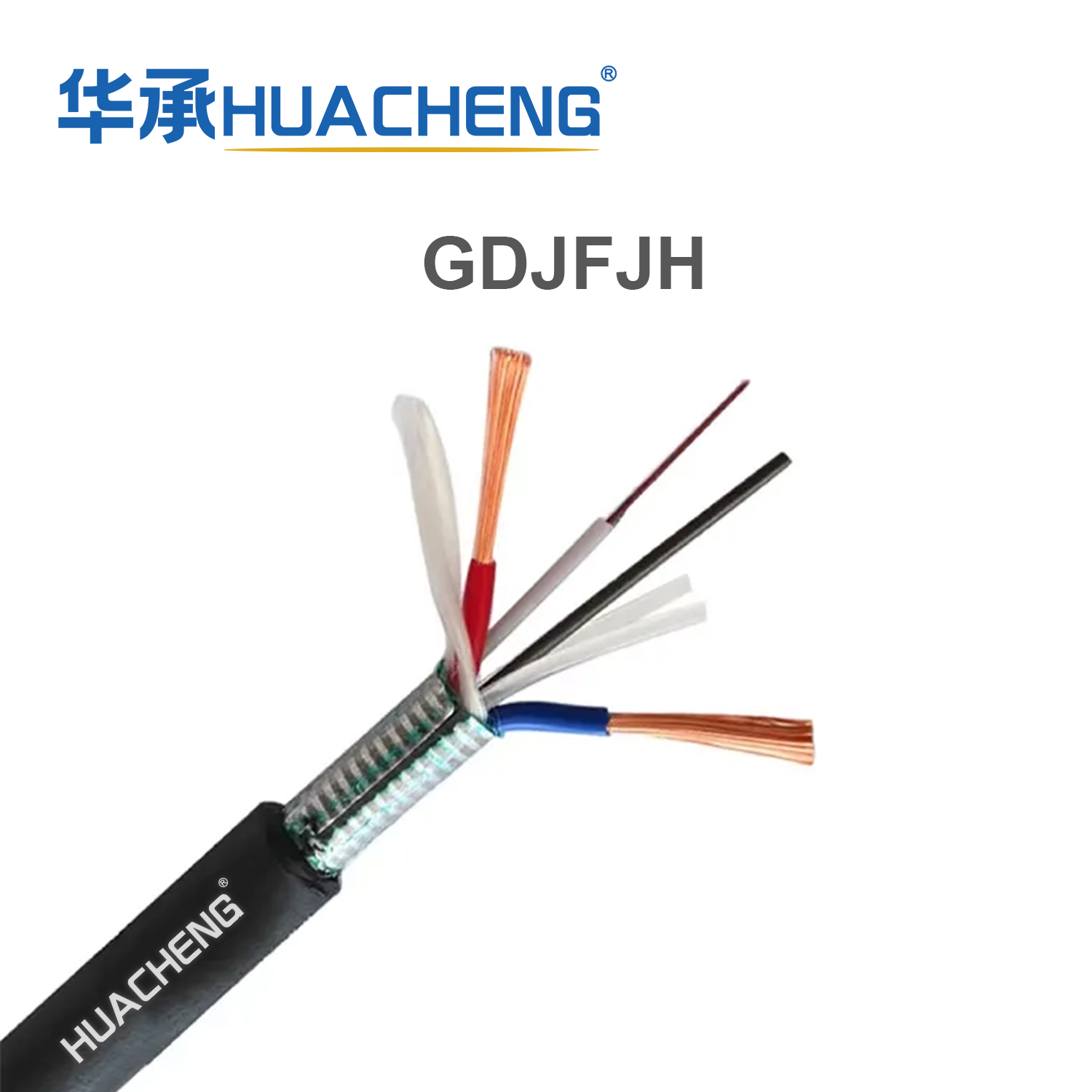

HUACHENG Indoor Photoelectric Hybrid Cable

Hybrid cable is a hybrid cable that integrates optical fiber and conductive copper wire. It can solve the problem of data transmission and equipment power supply with one cable. In campus networks, photoelectric hybrid cables are used to connect switches to APs or remote modules, transmitting data and supplying power to APs or remote modules over a single cable.
Characteristics
•Colored optical fibers for high integration
•Aramid fiber reinforcement provides the cable with excellent tensile performance
•The outer sheath material offers corrosion resistance, waterproofing, UV protection, flame retardancy, and environmental friendliness
Sheath Color:
Yellow
Orange
Water Green OM3
Rose Red OM4
Green OM5
Availability:
Inquire Add to Basket

  • GDJFJH

  • HUACHENG

Product Features

Fiber Optic Cable Performance Parameters

Tensile Strength Crush Strength Bending Radius
Long Term (N) Short Term (N) Long Term (N/100mm) Short Term (N/100mm) Dynamic Static
200 660 300 1000 20D 10D
280
 800 300 1000 20D 10D
330 1000 300 1000 20D 10D


Fiber Optic Cable Structural Parameters

Cable code Nominal Weight (kg) Cable Diameter (mm) Wall Thickness (mm)
GDJFJH 75 9 1.2
GJPFJH 89 9.6 1.2
GJPFJH 102 11 1.2


Product Features
Inquire

Related Products

HUACHENG Multi-Core Layer Cabling Indoor Optical Cable
HUACHENG Multi-Core Layer Cabling Indoor Optical Cable
HUACHENG Bow-type Drop Optical Cable
HUACHENG Bow-type Drop Optical Cable
HUACHENG INDOOR BUNDLE CABLE
HUACHENG INDOOR BUNDLE CABLE
HUACHENG Breakout Cable
HUACHENG Breakout Cable

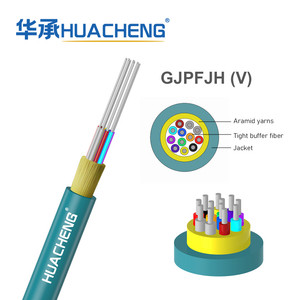

HUACHENG Multi-Purpose Indoor Cabling Cable
HUACHENG Multi-Purpose Indoor Cabling Cable

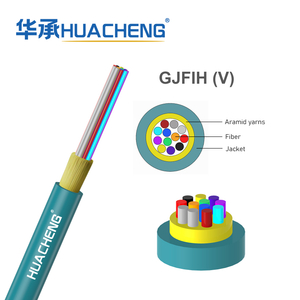

HUACHENG Multi-fiber Micro Optical Fiber Cable
