General

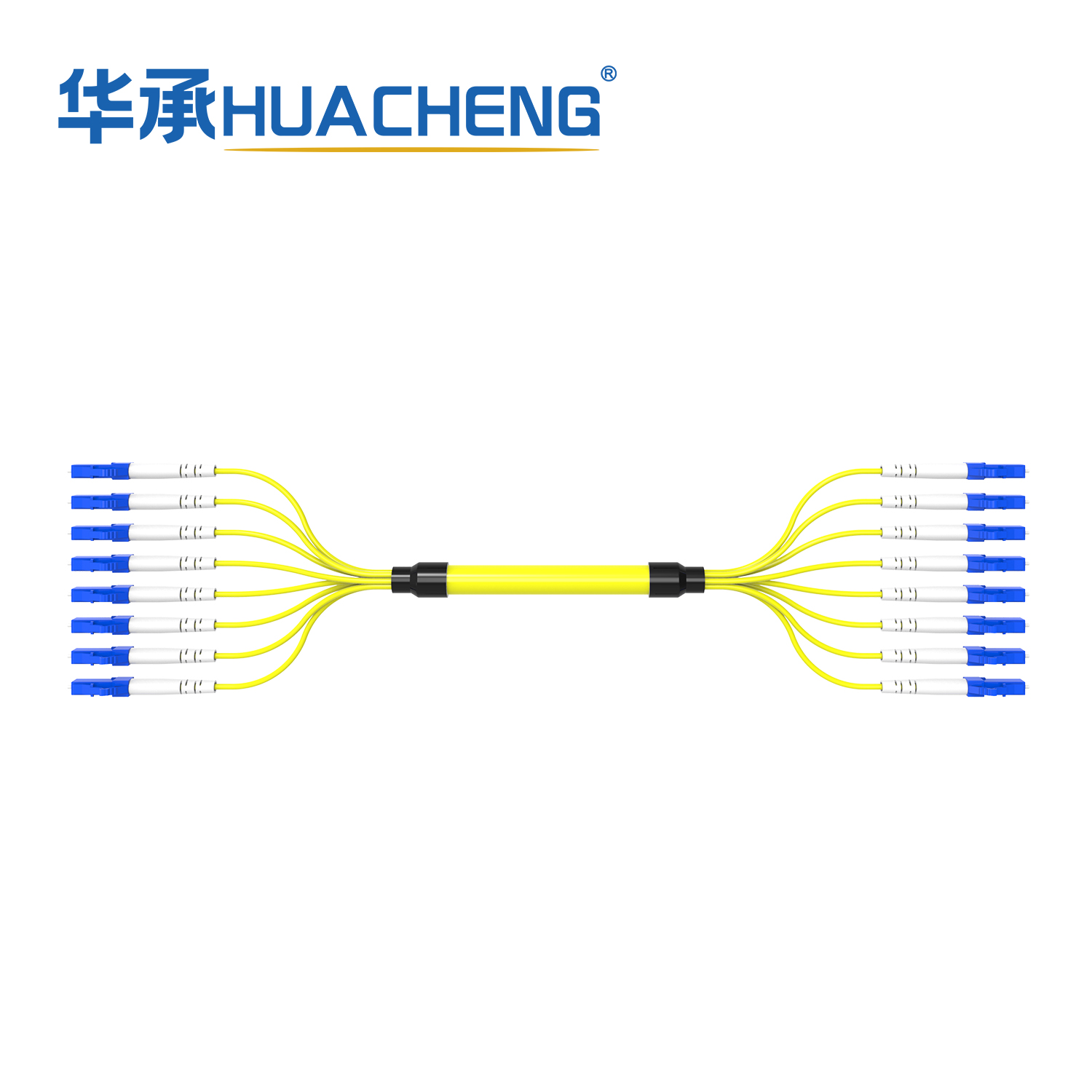

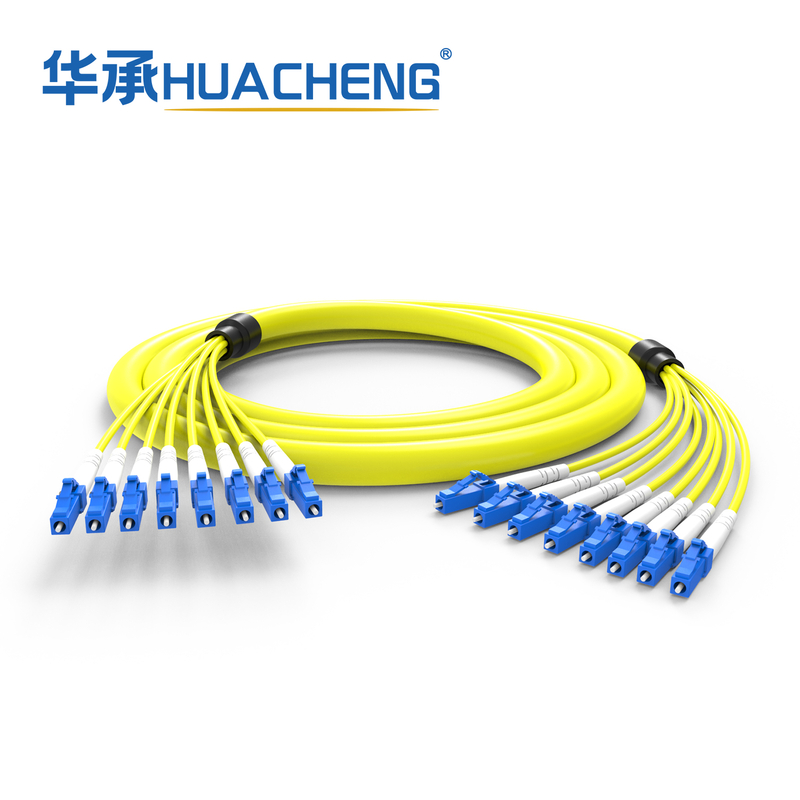

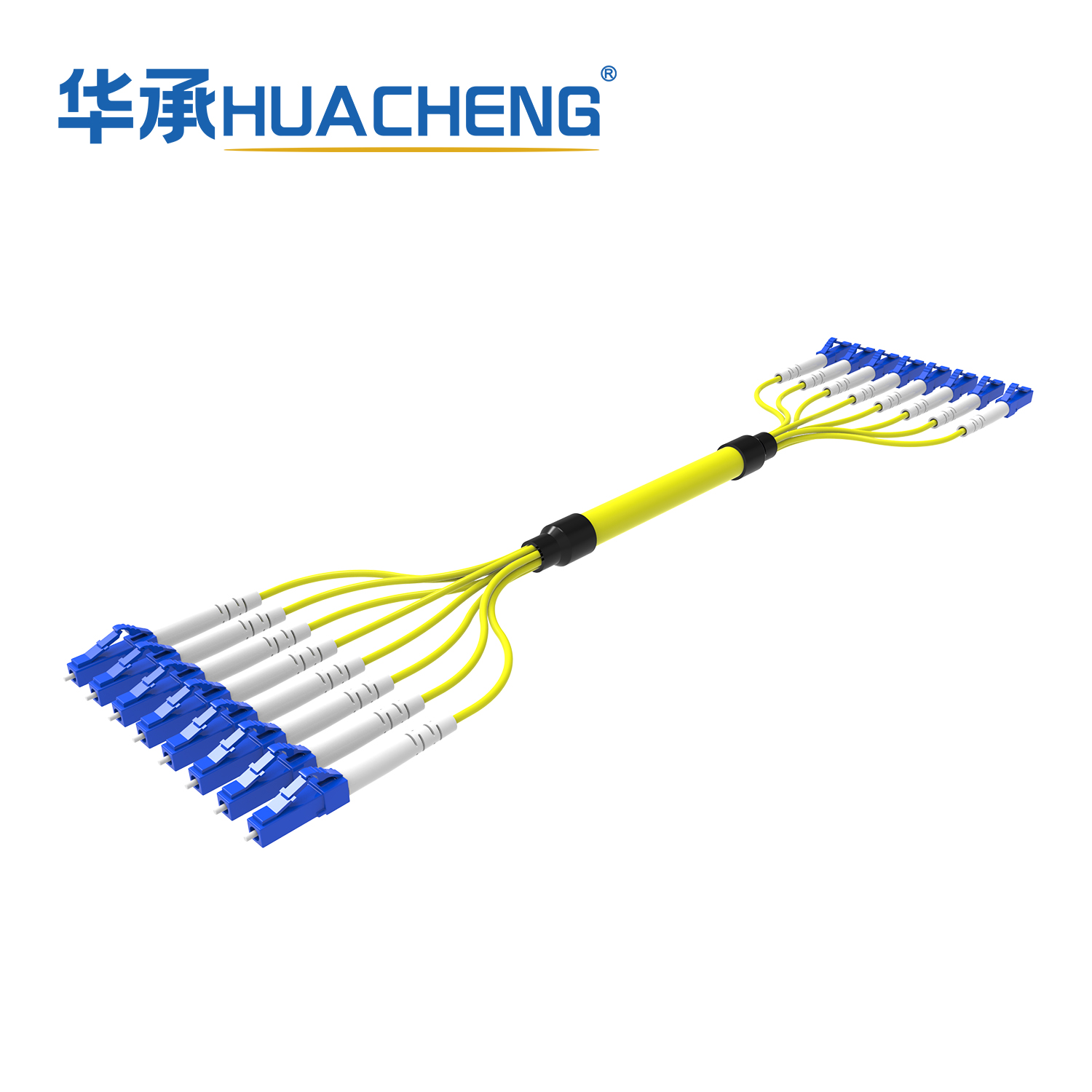

Product Type | LC/UPC-LC/UPC Fanout Assembly |
Cable Type | Fanout, Indoor |
Fiber Type | Bend Insensitive Single-mode (OS2) |
Fiber Count | 8 |
Max Insertion Loss, Assembly | 0.6 dB |
Length, Assembly | 1~100 m |
Standards and Regulatory Compliance
Cable Qualification Standards | ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-10 |
Assemblies Qualification Standards | TIA-568-C.3 |
Flame Rating Standards | IEC 60754, IEC 61034-2, IEC 60332-1 |
RoHS | Compliant with 2011/65/EU and (EU) 2015/863 |
Environmental Conditions
Operating Temperature | -10°C to 60°C |
Installation Temperature | 0°C to 50°C |
Transport and Storage Temperature | -20°C ~ 70°C |
Cable Design
Cable Type | Fanout, Tight-Buffered |
Fiber Count | 8 |
Fiber Type | 9/900 um |
Outer Diameter, Jacket | 10 mm |
Color, Jacket | Yellow |
Number of Subunit | 1 |
Outer Diameter, Subunit | 2.0 mm |
Fibers per Subunit | 8 |
Color, Subunit | Yellow |
Tensile Strength Elements | Aramid Yarns |
Flame Rating | LSZH |
Mechanical Specifications
Max. Tensile Strength, Short-Term | 440 N |
Max. Tensile Strength, Long-Term | 135 N |
Max. Crush Strength, Short-Term | 100 N/cm |
Min. Bend Radius Installation | 150 mm |
Min. Bend Radius Operation | 50 mm |
Optical Characteristics
Fiber Type | Bend Insensitive Single-mode (OS2) |
Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
Wavelengths | 1310 nm / 1383 nm / 1550 nm |
Fiber Compliance | ITU-T G.657.A1 and ITU-T G.652.D |
Max. Macro Loss, 10mm Mandrel Radius, 2 Turn | 0.75 dB @1550nm, 1.5 dB @1625nm (Uncabled) |
Max. Macro Loss, 15mm Mandrel Radius, 2 Turn | 0.25 dB @1550nm, 1.0 dB @1625nm (Uncabled) |
Dimensions
Connector A
Connector Type | LC, UPC |
Ferrule Material | Ceramic |
Housing Color | Blue |
Insertion Loss, Maximum | 0.25 dB |
Return Loss, Minimum | 55 dB |
Boot Type | Round |
Boot Color | White |
Boot Length | 27 mm |
Connector B
Connector Type | LC, UPC |
Ferrule Material | Ceramic |
Housing Color | Blue |
Insertion Loss, Maximum | 0.25 dB |
Return Loss, Minimum | 55 dB |
Boot Type | Round |
Boot Color | White |
Boot Length | 27 mm |
Fanout - Connector A Side
Leg Count | 8 |
Leg Diameter | 2.0 mm |
Leg Length | 120 cm |
Leg Color | Yellow |
Plug Type | Heat Shrink |
Plug Size | Round; OD 12 mm |
Plug Length | 80 mm |
Fanout - Connector B Side
Leg Count | 8 |
Leg Diameter | 2.0 mm |
Leg Length | 120 cm |
Leg Color | Yellow |
Plug Type | Heat Shrink |
Plug Size | Round; OD 12 mm |
Plug Length | 80 mm |
Packaging Information
Packaging Type | Plastic bag |
Units per Delivery | 1 |
