HUACHENG Indoor Cable, Distribution, Loose Tube, 96F, SM, Plenum, 16F 2.0 Subunit

Share to:

HUACHENG MFA, Distribution, Loose Tube, 96F, SM, Plenum, 16F 2.0 Subunit

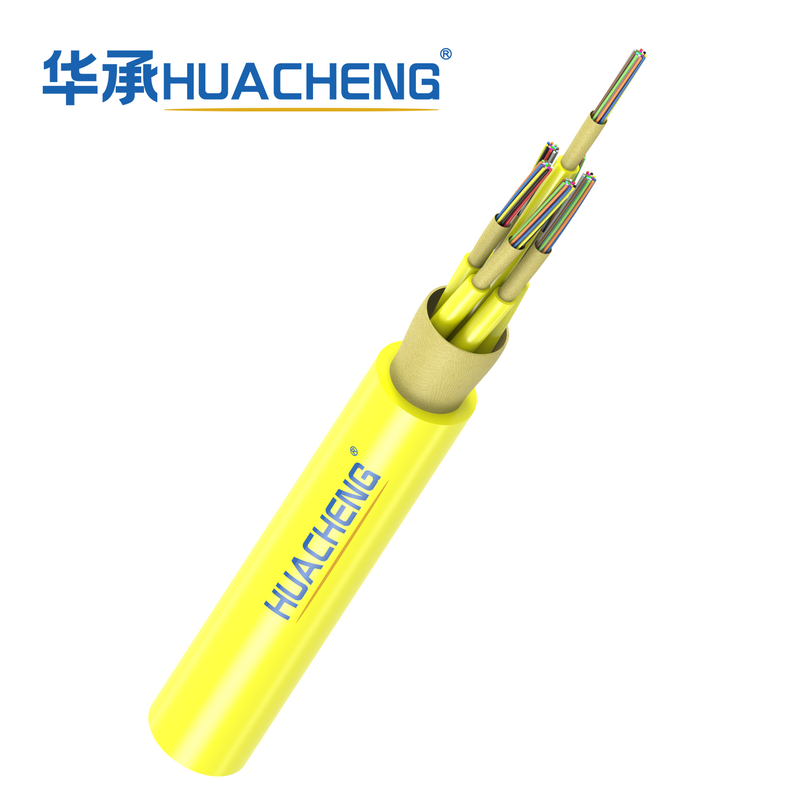

This indoor distribution loose-tube optical cable features a 2.0mm subunit design and a high fiber count of up to 16 color-coded 250μm single-mode fibers, optimized for backbone and distribution cabling in structured networks. It is engineered with bend-insensitive single-mode fibers, ideal for use in high-density data center distribution frames, building riser closets, and enterprise LAN backbones where space and airflow efficiency are key. The small-diameter subunit construction helps improve cable management and ventilation in crowded pathways. The cable jacket is available with flame retardant options including LSZH, Riser, and Plenum, ensuring compliance with various indoor cabling safety and installation standards.

Availability:



Inquire Add to Basket

Brand:
HUACHENG
Fiber Category:
SM
Flame Rating:
Plenum (OFNP)
Fiber Counts:
96

Specification

Downloads

General

Cable Categories	Indoor
Cable Type	Loose Tube, Non-armored
Fiber Type	Bending Insensitive Single-Mode, G.657.A1
Fiber Count	96
Flame Rating	Plenum (OFNP)
Application	Distribution

Environmental Specifications

Operating Temperature	0°C ~ 70°C
Installation Temperature	0°C ~ 60°C
Storage and Shipping Temperature	-40°C ~ 70°C

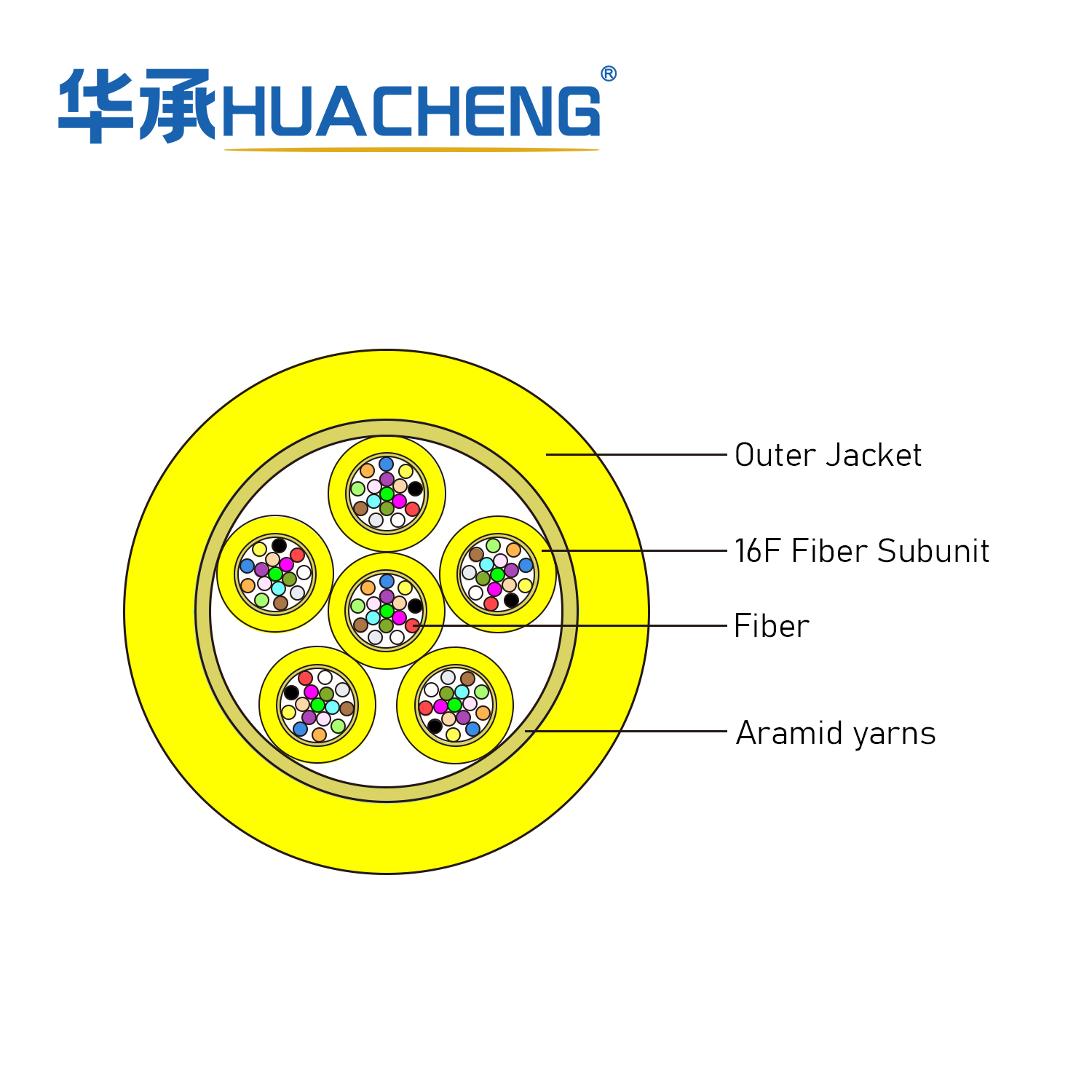

Cable Structure

Cable Type	Loose Tube, Distribution
Outer Diameter, Jacket	9.2 mm
Color, Outer Jacket	Yellow
Number of Subunit	6
Outer Diameter, Subunit	2.0 mm
Fibers per Subunit	16
Color, Subunit	Yellow
Fiber Color	Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Rose,Aqua,Olive,Magenta,Tan,Lime
Tensile Strength Elements	Aramid Yarns

Mechanical Specifications

Max. Tensile Strength, Short-Term	660 N
Max. Tensile Strength, Long-Term	198 N
Max. Crush Strength, Short-Term	100 N/cm
Min. Bend Radius Installation	138 mm
Min. Bend Radius Operation	92 mm

Optical Specifications, Cabling

Fiber Type	Bending Insensitive Single-Mode(OS2), 200um
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Compliance	ITU-T G.657.A1 and ITU-T G.652.D
Max. Macrobend Loss, 10 mm Mandrel Radius, 1 Turn	0.75 dB @1550nm, 1.5 dB @1625nm (Uncabled)

Standards

Cable Qualification Standards	ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-20
Flame Rating Standards	NFPA 262
RoHS	Compliant with 2011/65/EU and (EU) 2015/863
