Technical Characteristics(MPO/MTP)
| Items | Description |

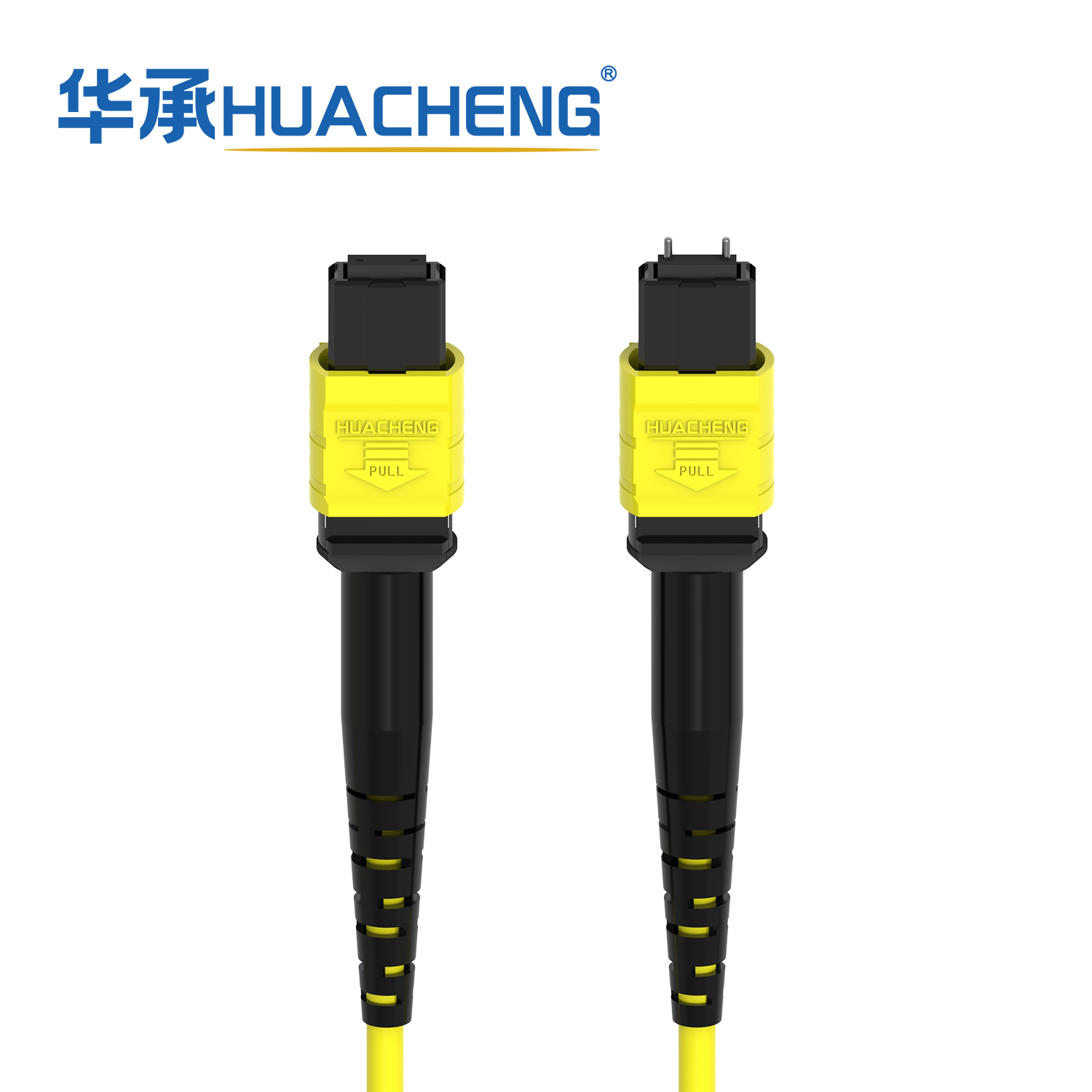

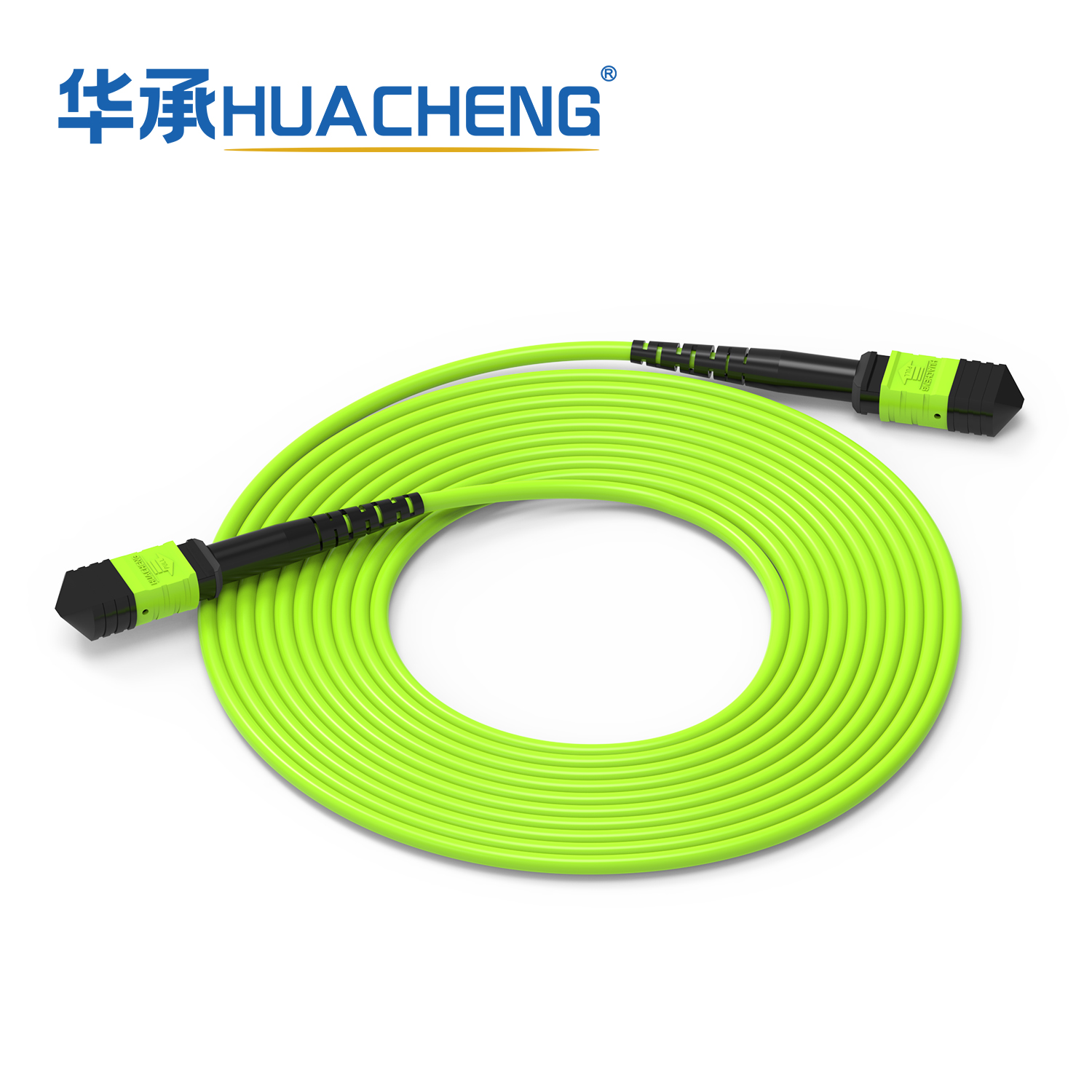

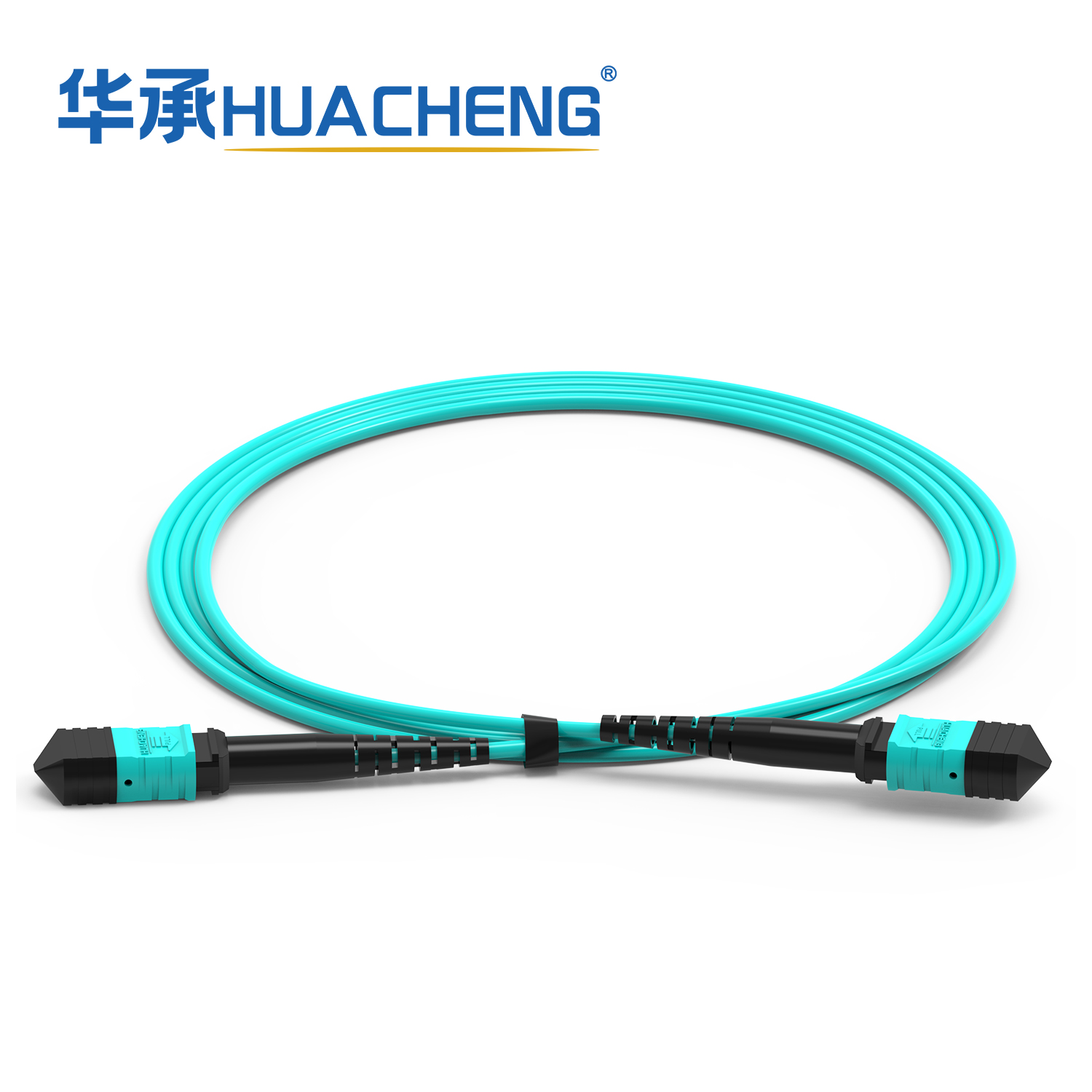

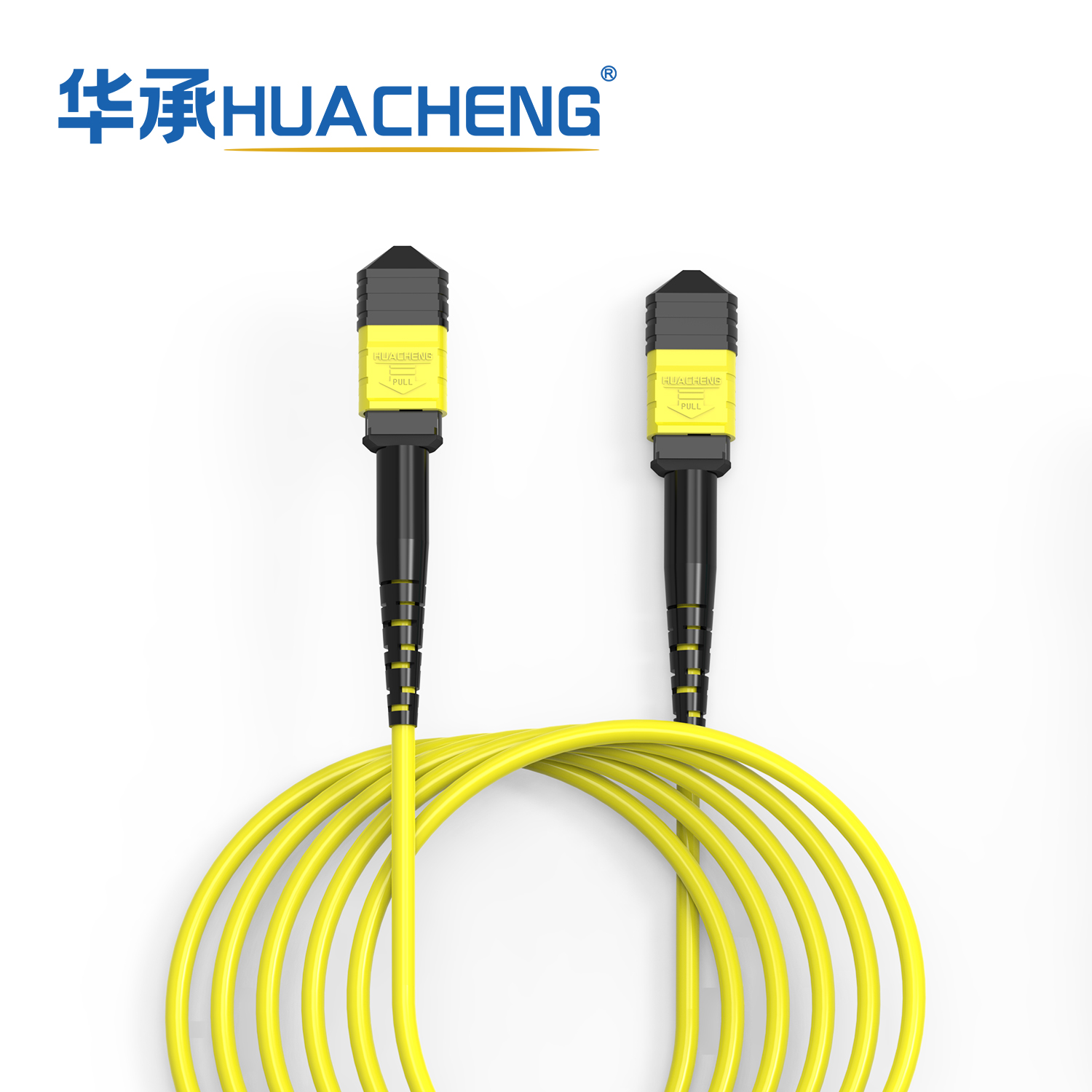

| Connector Type | MTP Female, Male; MPO Female, Male |
| Connector Brand | US Conec MTP, Senko MPO |
| Connector color | OS2: Green OM4/OM3: Aqua |
| Connectors Boots | Black |
| Fiber Count | 4~72 Fibers |
| Fiber Mode | Single mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm |
| Fiber Brand | Corning ClearCurve ® multimode fiber and SMF-28® Ultra optical fiber |
| Cable Type | Trunk |
| Cable Color | OS2: Yellow OM4: Magenta OM3: Aqua |
| Cable Jacket Material | Plenum (OFNP) /Low Smoke Zero Halogen (LSZH) /Riser (OFNR) |
| Cable Diameter | 3.0±0.2 mm |
| Polarity | Type A / Type B / Type C |
Optical properties
| Type | Unit | Description |
| MPO/MTP connector | -- | Standard SM MT | Low Loss(Elite)SM MT | Standard MM MT | Low Loss(Elite)MM MT |
| Insertion Loss | Typical | (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
| Max | (dB) | 0.75 | 0.35 | 0.60 | 0.35 |
| Return Loss | (dB) | APC≥60,PC≥50 | ≥20 for PC |
| M/F | -- | Male:With Pins Female:Without Pins |
| Wavelength | (nm) | Single Mode: 1310/1550 Multimode: 850/1300 |
| Transmission Distance | -- | OM4: 150m at 40/100G, 500m at 10G OM3: 100m at 40/100G, 300m at 10G |
Plug end face geometric parameters
| Type | Unit | Description |
| Single Mode | Multi-mode |
| Radius of curvature X | (mm) | Min 2000 | Min 2000 |
| Radius of curvature Y | (mm) | Min 5 | Min 5 |
| Fiber Height | (nm) | 1000~3500 | 1000~3500 |
| Max.Diff.Height All | (nm) | Max 50 | Max 50 |
| Max.Diff.Height Adjl | (nm) | Max 300 | Max 300 |
| Tilt Angle X | (°) | -0.2~+0.2 | -0.2~+0.2 |
| Tilt Angle Y | (°) | PC:-0.2~+0.2;APC:7.8~8.2 | -0.2~+0.2 |
| Core Dip | (nm) | N/A | -100~+200 |
Applications
Optical cables of data center
Used with MPO/MTP adapter panel
Active optical network transceiver control
Optical fiber distribution system
