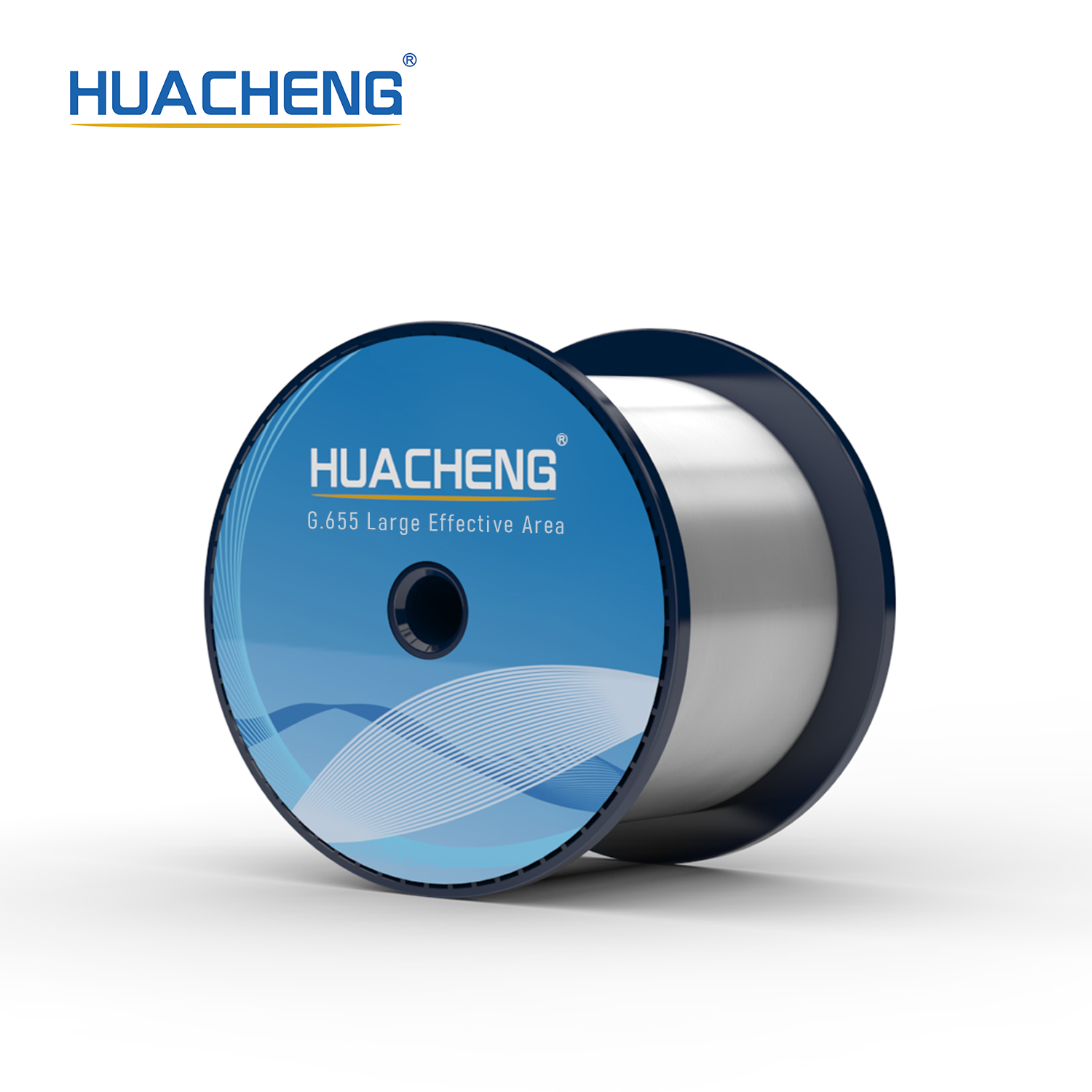

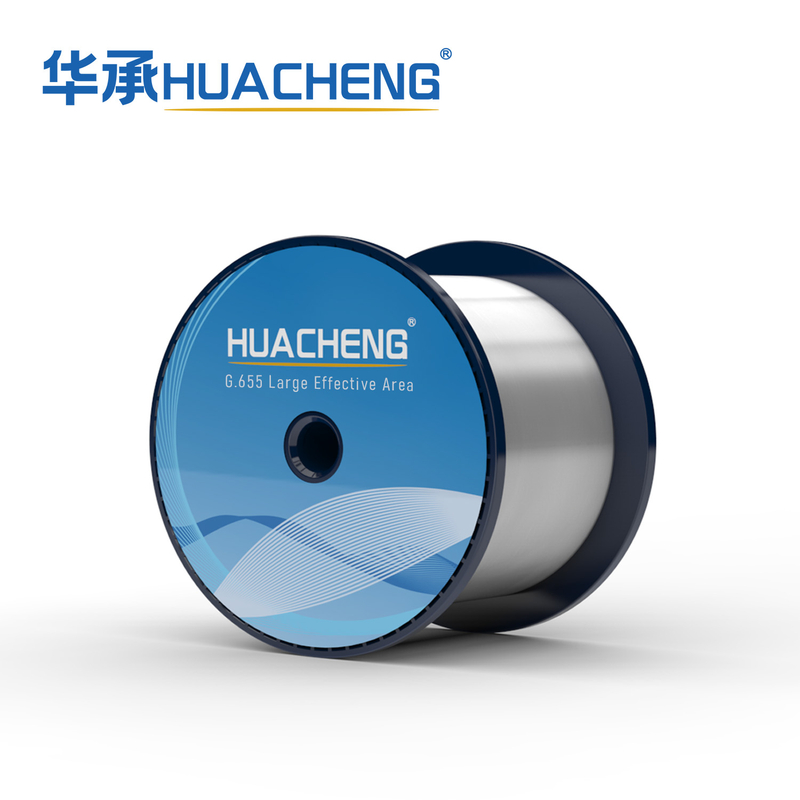

HUACHENG Single-Mode G.655 Large Effective Area Fiber Series

HUACHENG G.655 Fiber has large effective area. The fiber is suitable for application of high output power Erbium Doped Fibre Amplifier (EDFA) and multi-channel Dense Wavelength Division Multiplex (DWDM), and can be effectively applied in the high bit-rate both single-and multi-channel, long distance digital transmission links even without dispersion compensation.

Characteristics

Being applicable in the high bit-rate operation across 1530-1565 nm and 1565-1625 nm band
Large effective area ensures good economic return from the transmission system
Low attenuation, low dispersion, low PMD and low zero dispersion slope that satisfy the demand of transmission links
Low bending induced loss at 1550 nm and at the moresensitive 1625 nm wavelength
HUACHENG G.655 Fiber complies with or exceeds the ITU-T G.655.C/D recommendation and IEC-60793-2-50 B4.c/d Optical Fiber Specification.

Availability:



Inquire Add to Basket

Model:
G.655
Brand:
HUACHENG

G.655 Large Effective Area Fiber

Specifications （G655）
Characteristics		Conditions	Speciﬁed values	Units
Optical Characteristics
Attenuation		1550nm	≤0.22	[dB/km]
Attenuation		1625nm	≤0.24	[dB/km]
Attenuation vs. Wavelength		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Max. α Diﬀerence		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Dispersion Coeﬃcient		1530-1565nm	2.0-6.0	[ps/(nm·km)]
Dispersion Coeﬃcient		1565-1625nm	4.5-11.2	[ps/(nm·km)]
Zero Dispersion Wavelength(λ₀)		--	≤1520	[nm]
Dispersion Slope		1550nm	≤0.084	[ps/(nm²·km)]
Typical dispersion slope		1550nm	0.075	[ps/(nm²·km)]
PMD	Maximum Individual Fibre	--	≤0.2	[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.08	[ps/√km]
	Typical Value	--	0.04	[ps/√km]
Cable Cutoﬀ Wavelength (λ_CC)		--	≤1450	[nm]
Mode ﬁeld diameter (MFD)		1550nm	9.1-10.1	[μm]
Eﬀective Group Index of Refraction（N_eﬀ）		1550nm	1.469	--
Eﬀective Group Index of Refraction（N_eﬀ）		1625nm	1.469	--
Point Discontinuities		1550nm	≤0.05	[dB]
Geometrical Characteristics
Cladding Diameter		--	125.0±0.7	[μm]
Cladding Non-Circularity		--	≤1.0	[%]
Coating Diameter		--	235-255	[μm]
Coating-Cladding Concentricity Error		--	≤12.0	[μm]
Coating Non-Circularity		--	≤6.0	[%]
Core-Cladding Concentricity Error		--	≤0.6	[μm]
Curl(Radius)		--	≥4	[m]
Delivery Length		--	Up to 25.2	[km/reel]
Environmental Characteristics 1550nm & 1625nm
Temperature Dependence Induced Attenuation		-60℃ to +85℃	≤0.05	[dB/km]
Temperature-Humidity Cycling Induced Attenuation		-10°C to +85°C, 98% RH	≤0.05	[dB/km]
Watersoak Dependence Induced Attenuation		23°C，for 30 days	≤0.05	[dB/km]
Damp Heat Dependence Induced Attenuation		85°C , 85% RH，for 30 days	≤0.05	[dB/km]
Dry Heat Aging		85℃，30 days	≤0.05	[dB/km]
Mechanical Speciﬁcations
Proof Test		--	≥9.0	[N]
		--	≥1.0	[%]
		--	≥100	[kpsi]
Macro-bend Induced Attenuation	100 Turns Around a Mandrel of 30 mm Radius	1625nm	≤0.05	[dB]
	100 Turns Around a Mandrel of 25 mm Radius	1550nm	≤0.05	[dB]
	1 Turn Around a Mandrel of 16 mm Radius	1550nm	≤0.05	[dB]
Coating Strip Force		typical average force	1.5	[N]
Coating Strip Force		peak force	1.3-8.9	[N]
Dynamic Fatigue Parameter(n_d)		--	≥20	--
