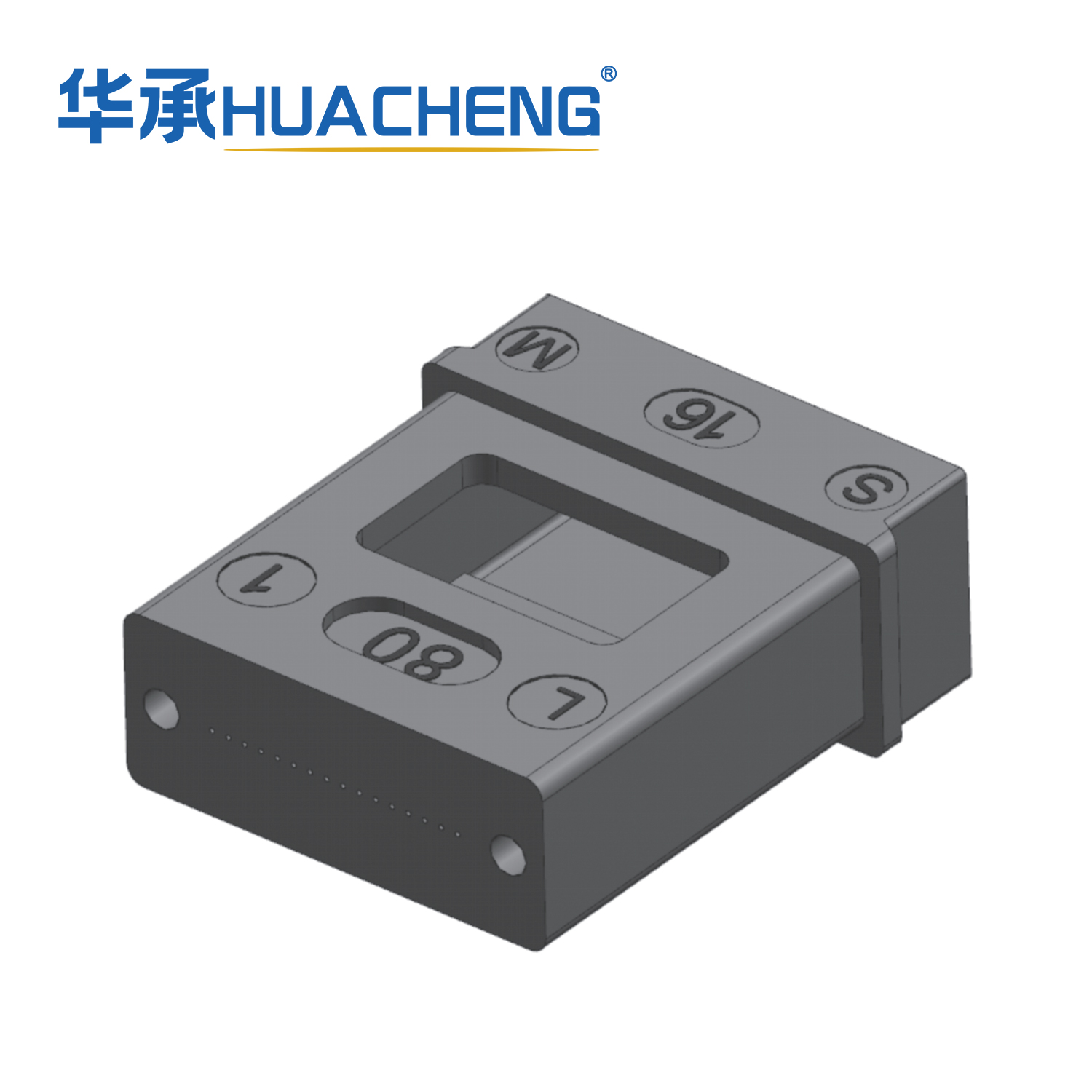

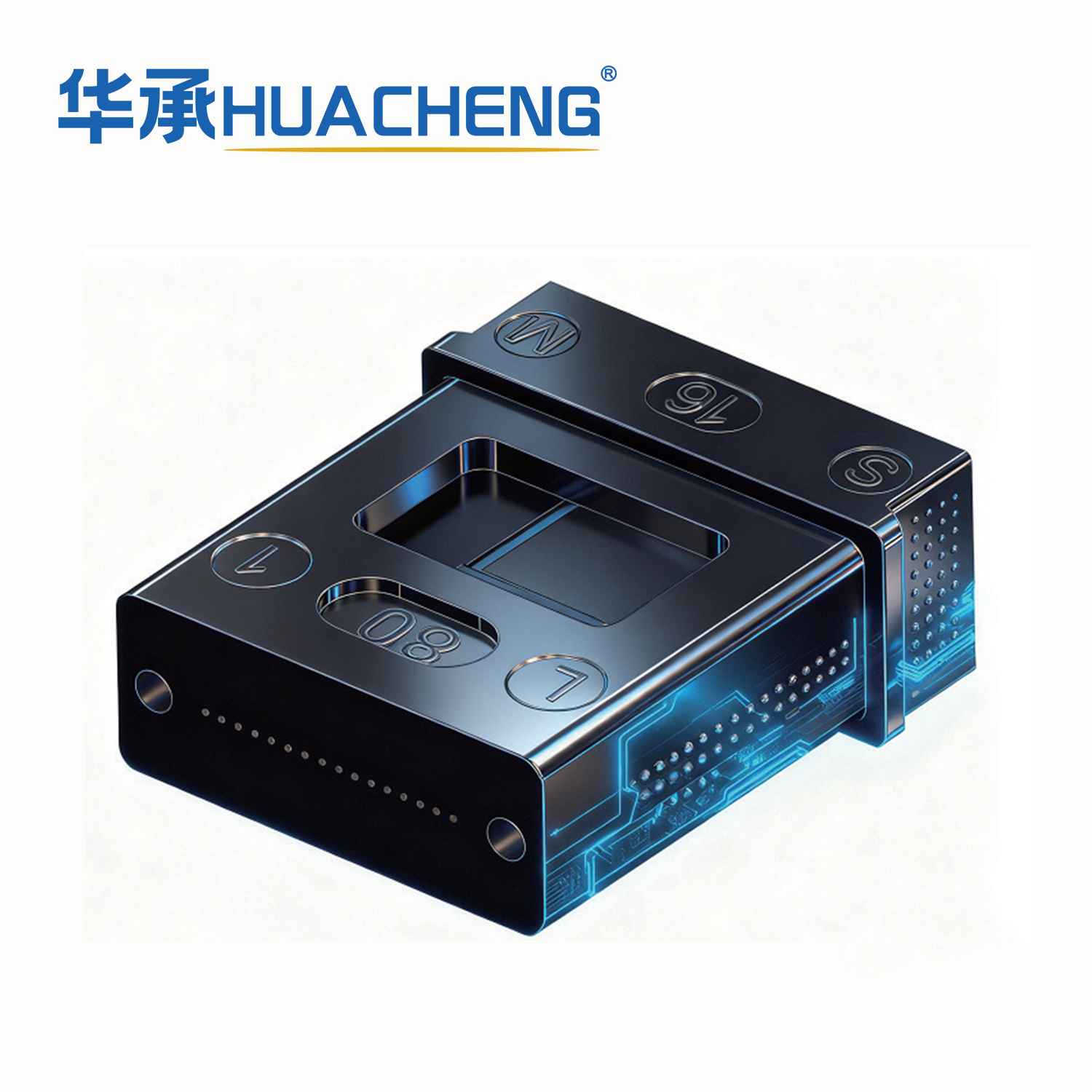

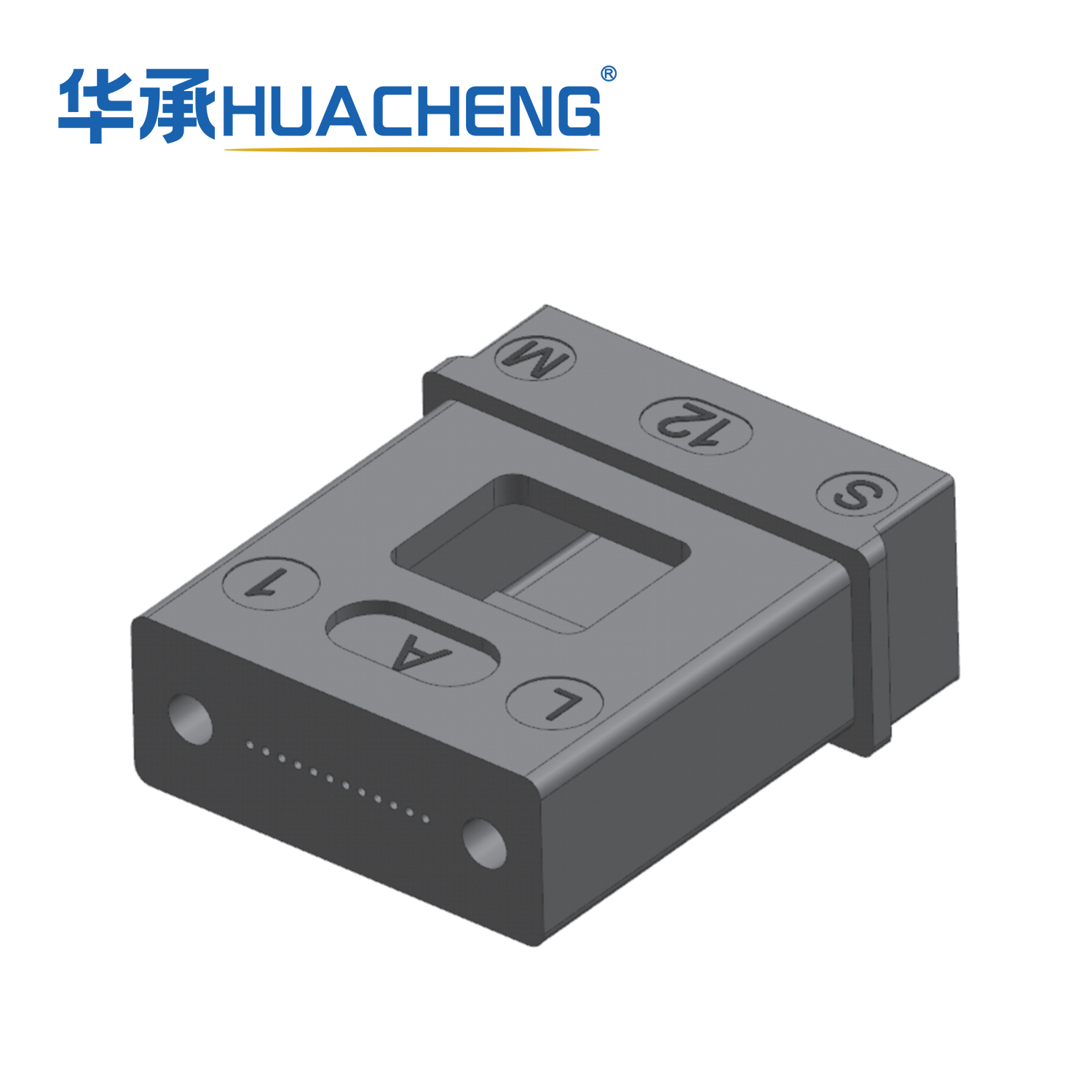

HUACHENG Single-mode Low-loss Ferrule

The Huacheng MT ferrule is a core component for high-density optical communication connectivity, specifically designed for multi-fiber parallel transmission scenarios. It is widely compatible with next-generation communication networks such as data centers, intelligent computing centers, and cloud computing infrastructure.
Manufactured from high-performance polyphenylene sulfide (PPS) composite thermoplastic material via high-precision molding technology, the ferrule ensures precise alignment and stable connection of multiple fibers. It effectively supports optical signal transmission at 40G/100G/400G/800G and even higher data rates, making it a key device for enhancing the efficiency and reliability of optical links. The product complies with TIA 604-18 and is compatible with IEC 61754-7-3 and 61754-7-4 standards.
Characteristic

High-Precision Molding
High-Environmental Stability
Excellent Optical Performance
Compliance Guarantee
High-Accuracy Positioning
High-Density Transmission
Superior Environmental Adaptability

Availability:



Inquire Add to Basket

Model:
Single-mode Low-loss Ferrule
Brand:
HUACHENG

Product Description

Material Code-PN	Product Description	Product Model	Insertion Loss	Return Loss (PC)	Return Loss (APC)
711500206	Single-Mode Low-Loss 04-Core 125µm Ferrule	HCF-SML-04F-125	≤0.35 dB	≥50 dB	≥60 dB
711500207	Single-Mode Low-Loss 12-Core 125µm Ferrule	HCF-SML-12F-125	≤0.35 dB	≥50 dB	≥60 dB
711500208	Single-Mode Low-Loss 16-Core 125µm Ferrule	HCF-SML-16F-125	≤0.35 dB	≥50 dB	≥60 dB
711500209	Single-Mode Low-Loss 24-Core 125µm Ferrule	HCF-SML-24F-125	≤0.35 dB	≥50 dB	≥60 dB
711500210	Single-Mode Low-Loss 36-Core 125µm Ferrule	HCF-SML-36F-125	≤0.35 dB	≥50 dB	≥60 dB
711500211	Single-Mode Low-Loss 48-Core 125µm Ferrule	HCF-SML-48F-125	≤0.35 dB	≥50 dB	≥60 dB
711500212	Single-Mode Low-Loss 04-Core 080µm Ferrule	HCF-SML-04F-080	≤0.35 dB	≥50 dB	≥60 dB
711500213	Single-Mode Low-Loss 12-Core 080µm Ferrule	HCF-SML-12F-080	≤0.35 dB	≥50 dB	≥60 dB
711500214	Single-Mode Low-Loss 16-Core 080µm Ferrule	HCF-SML-16F-080	≤0.35 dB	≥50 dB	≥60 dB
711500215	Single-Mode Low-Loss 24-Core 080µm Ferrule	HCF-SML-24F-080	≤0.35 dB	≥50 dB	≥60 dB
711500216	Single-Mode Low-Loss 36-Core 080µm Ferrule	HCF-SML-36F-080	≤0.35 dB	≥50 dB	≥60 dB
711500217	Single-Mode Low-Loss 48-Core 080µm Ferrule	HCF-SML-48F-080	≤0.35 dB	≥50 dB	≥60 dB
