23AWG 4 Twisted Pairs CMR U/UTP 550MHz Solid Copper Cat6 indoor Ethernet Bulk Cable

Share to:

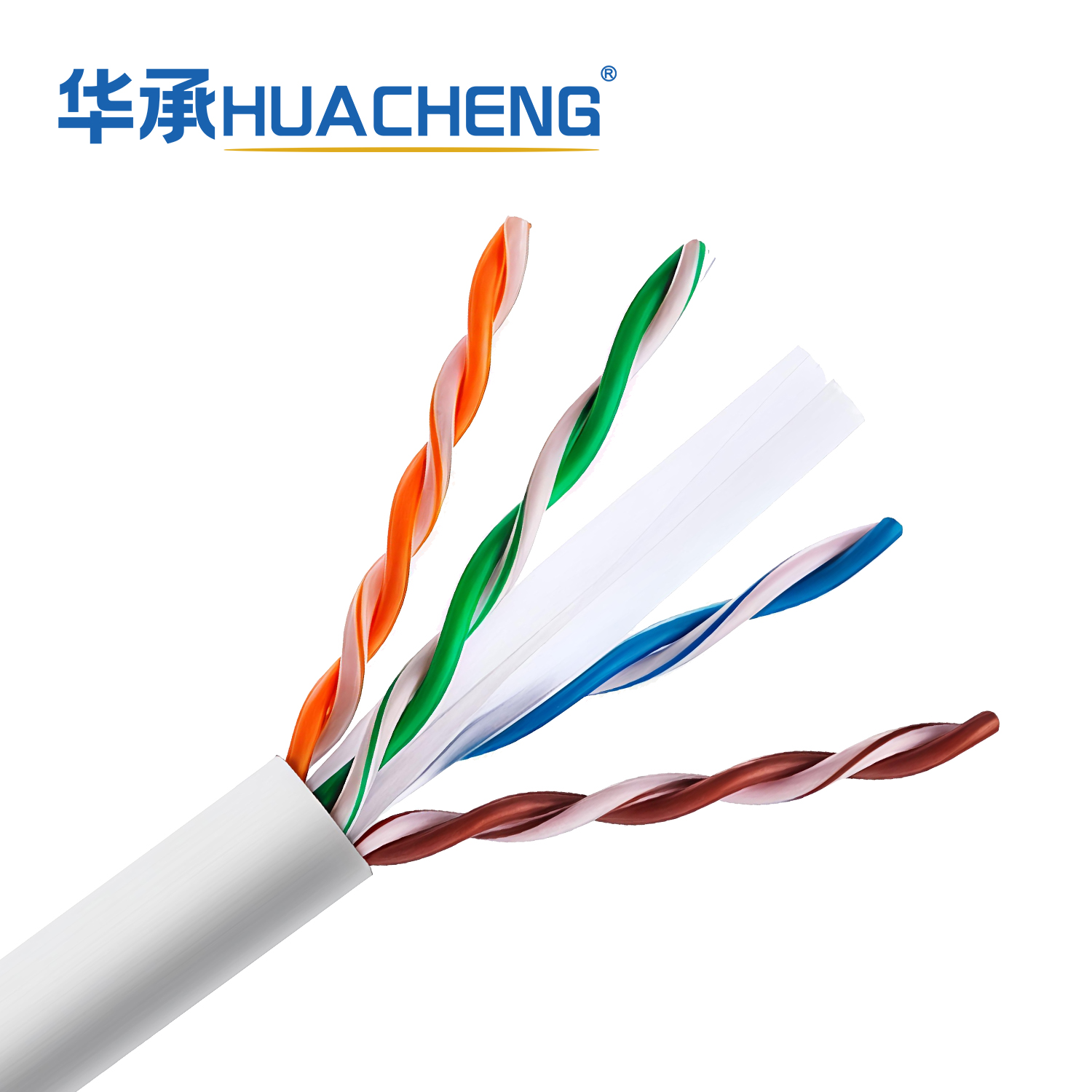

HUACHENG CAT6 U/UTP Category 6 Unshielded Twisted Pair

CAT6 U/UTP supports a variety of wiring structures and transmission media, suitable for voice, digital, message, image, camera and other local area network environments. Due to its simple structure and fast transmission speed, it is widely used in high-speed, large-capacity and multimedia integrated service data communication networks and intelligent buildings.

Characteristics

Conductor: Single bare copper wire
Structure: Two insulated conductors twisted together
Rated temperature: 70°C
Rated voltage: 300V
Insulation: Polyethylene insulation

Availability:



Inquire Add to Basket

Model:
CAT6 U/UTP
Brand:
HUACHENG

Product Description

Mechanical & Environmental Performance

Tension		Bending Radius		Temperature
Work	Install	Work	Install	Work	Install
80N	110N	4*OD	8*OD	-20℃ to +60℃	-5℃ to +50℃

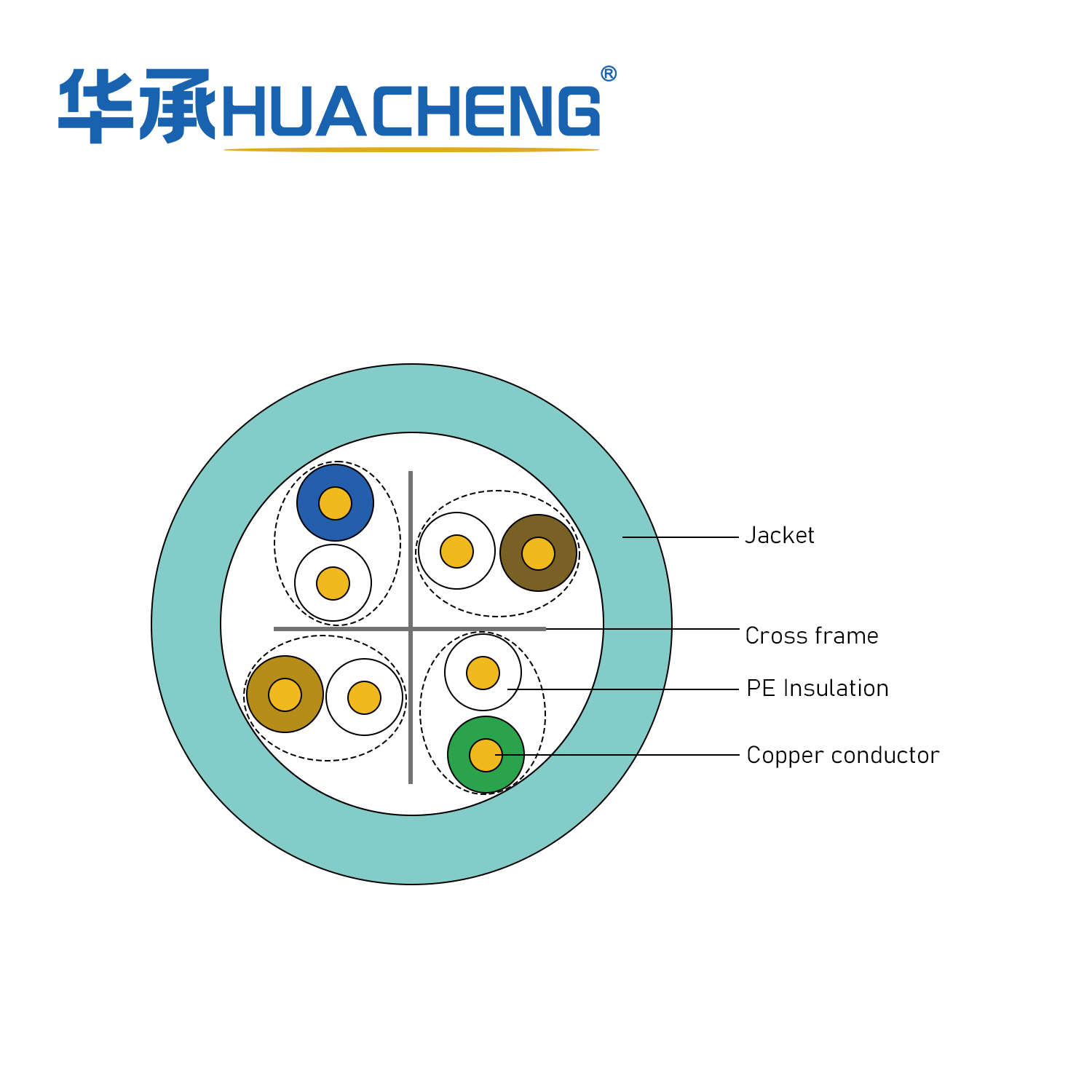

Structural Parameters

Type	Outer Diameter (±0.3)	Conductor	Conductor Dia (±0.008mm)	Insulation Avg Thickness (mm)	Insulation Dia (±0.05mm)	Jacket Thickness (mm)
CAT6 U/UTP	6.1mm	23AWG	0.55	0.22	0.98	0.5
