23AWG 4 Twisted Pairs CMR SF/UTP 550MHz Solid Copper Cat6 indoor Ethernet Bulk Cable

Share to:

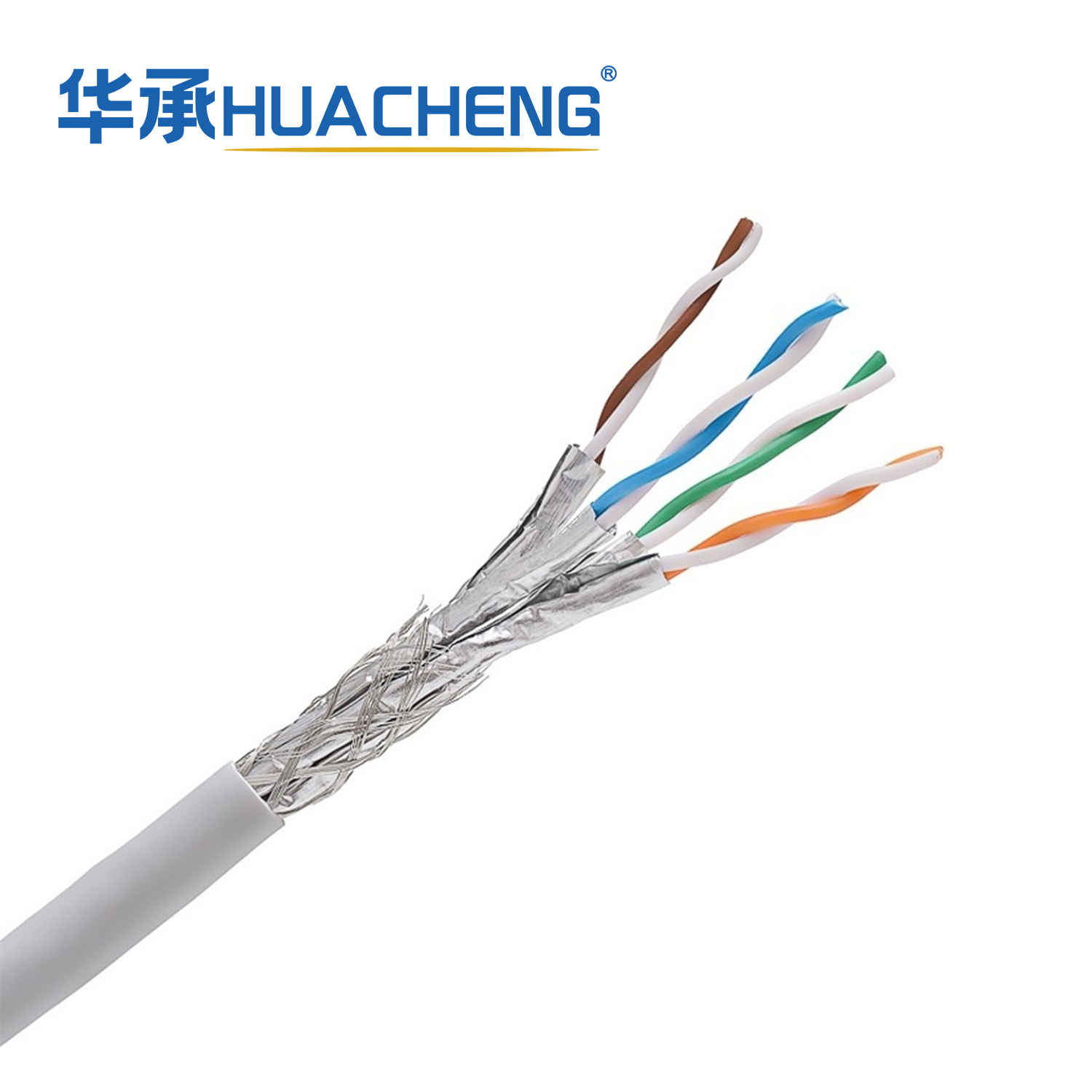

HUACHENG CAT6A S/FTP Category 6A Screened Twisted Pair with Individual Pair Overall Foil Shield

CAT6A S/FTP features a structure of unshielded twisted pairs and overall foil shielding, fully compatible with various cabling systems and transmission media. Boasting 10Gbps transmission capacity, ultra-low crosstalk and excellent anti-electromagnetic interference performance, it stably supports high-end LAN applications such as voice communication, high-definition video transmission, big data transfer and security surveillance.

Characteristics

Conductor: Single bare copper wire
Structure: Two insulated conductors twisted together
Rated temperature: 70°C
Rated voltage: 300V
Insulation: Polyethylene insulation

Availability:



Inquire Add to Basket

Model:
CAT6A S/FTP
Brand:
HUACHENG

Product Description

Mechanical & Environmental Performance

Tension		Bending Radius		Temperature
Work	Install	Work	Install	Work	Install
80N	110N	4*OD	8*OD	-20℃ to +60℃	-5℃ to +50℃

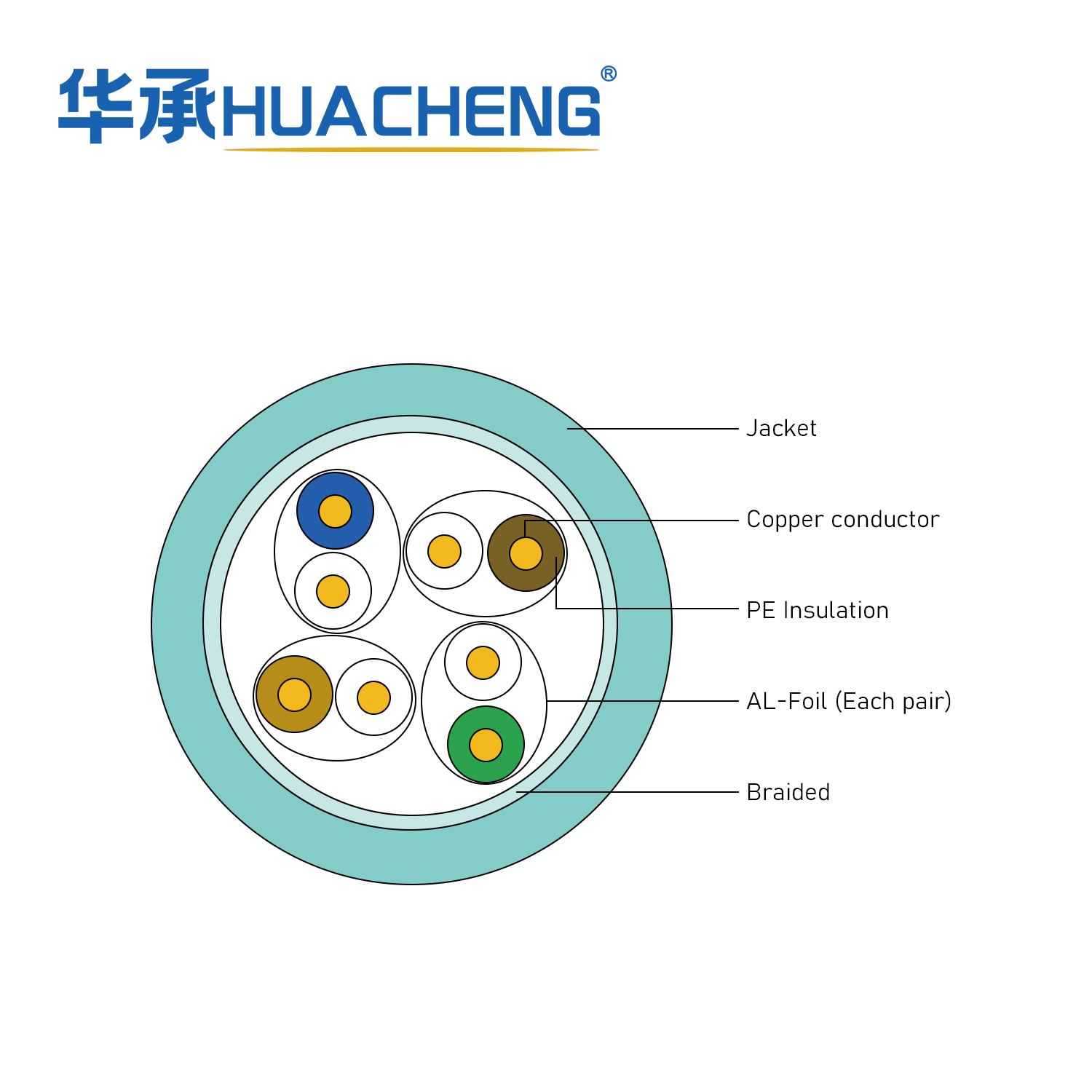

Structural Parameters

Type	Outer Diameter (±0.3)	Conductor	Conductor Dia (±0.008mm)	Insulation Avg Thickness (mm)	Insulation Dia (±0.05mm)	Jacket Thickness (mm)
CAT6A S/FTP	7.4mm	23AWG	0.56	0.39	1.35	0.52
