General
Product Type |

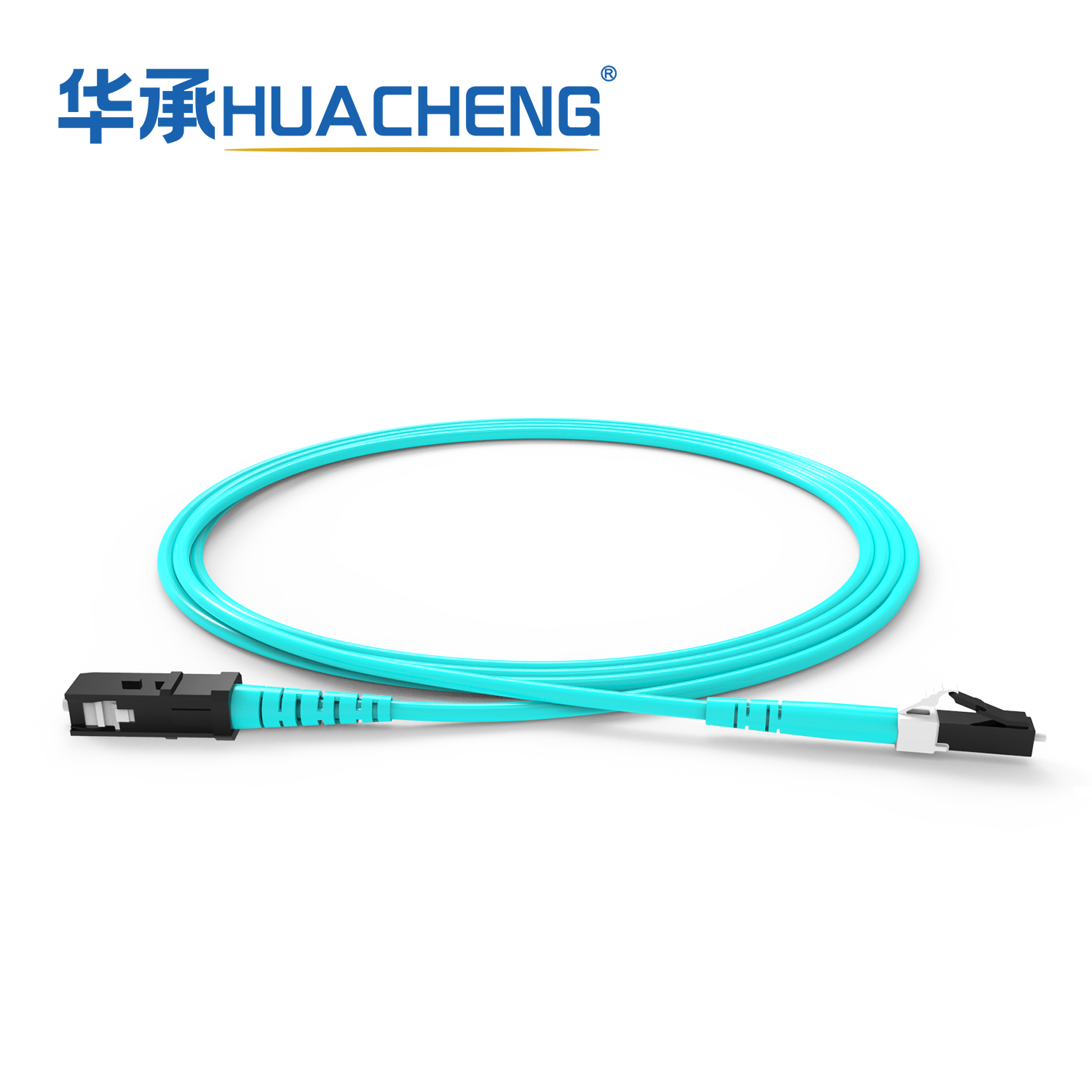

LC/UPC-SC/UPC Jumper |
Cable Type |
Interconnect, Indoor |
Fiber Type |
MultiMode, 50um, OM3/OM4/OM5 |
Fiber Count |
1 |
Max Insertion Loss, Assembly |
0.5 dB |
Length, Assembly |
1~100 m |
Standards and Regulatory Compliance
Cable Qualification Standards |
ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-10 |
Assemblies Qualification Standards |
TIA-568-C.3 |
Flame Rating Standards |
UL-1666 |
RoHS |
Compliant with 2011/65/EU and (EU) 2015/863 |
Environmental Conditions
Operating Temperature |
-10°C ~ 60°C |
Installation Temperature |
0°C ~ 50°C |
Transport and Storage Temperature |
-20°C ~ 70°C |
Cable Design
Cable Type |
Tight-Buffered |
Fiber Count |
1 |
Fiber Type |
50/900 um |
Outer Diameter, Jacket |
2.0 mm |
Thickness, Jacket |
0.3 mm |
Color, Jacket |
Aqua |
Tensile Strength Elements |
Aramid Yarns |
Flame Rating |
Riser (OFNR) |
Mechanical Specifications
Max. Tensile Strength, Short-Term |
100 N |
Max. Tensile Strength, Long-Term |
30 N |
Max. Crush Strength, Short-Term |
35 N/cm |
Min. Bend Radius Installation |
30 mm |
Min. Bend Radius Operation |
20 mm |
Optical Characteristics
Fiber Type |
Bend Insensitive Multimode, OM3/OM4/OM5 |
Maximum Attenuation |
2.8 dB/km / 1.0 dB/km |
Wavelengths |
850 nm / 1300 nm |
Fiber Compliance |
IEC 60793-2-10 |
Fiber Core Diameter |
50 µm |
Minimum Effective Modal Bandwidth (EMB) |
OM4/5: 4700 MHz*km @850nm
OM3: 2000 MHz*km @850nm
OM5: 2470 MHz*km @953nm |
Min. Overfilled Launch (OFL) Bandwidth |
OM4/5: 3500 MHz*km @850nm
OM3: 1500 MHz*km @850nm
OM5: 1850 MHz*km @850nm |
Max. Macro Loss, 7.5mm Mandrel Radius, 2 Turn |
0.2 dB @850nm (Uncabled) |
Max. Macro Loss, 15mm Mandrel Radius, 2 Turn |
0.1 dB @850nm (Uncabled) |
Dimensions
Connector A
Connector Type |
LC, UPC |
Ferrule Material |
Ceramic |
Housing Color |
Black |
Insertion Loss, Maximum |
0.25 dB |
Return Loss, Minimum |
40 dB |
Boot Type |
Round |
Boot Color |
Aqua |
Boot Length |
27 mm |
Connector B
Connector Type |
SC, UPC |
Ferrule Material |
Ceramic |
Housing Color |
Black |
Insertion Loss, Maximum |
0.25 dB |
Return Loss, Minimum |
40 dB |
Boot Type |
Round |
Boot Color |
Aqua |
Boot Length |
27 mm |
Packaging Information
Packaging Type |
Plastic bag |
Units per Delivery |
1 |
