HUACHENG SC/APC-SC/APC Duplex Jumper, Bend Insensitive Single Mode, Tight-Buffered, 2.0mm, Plenum

Share to:

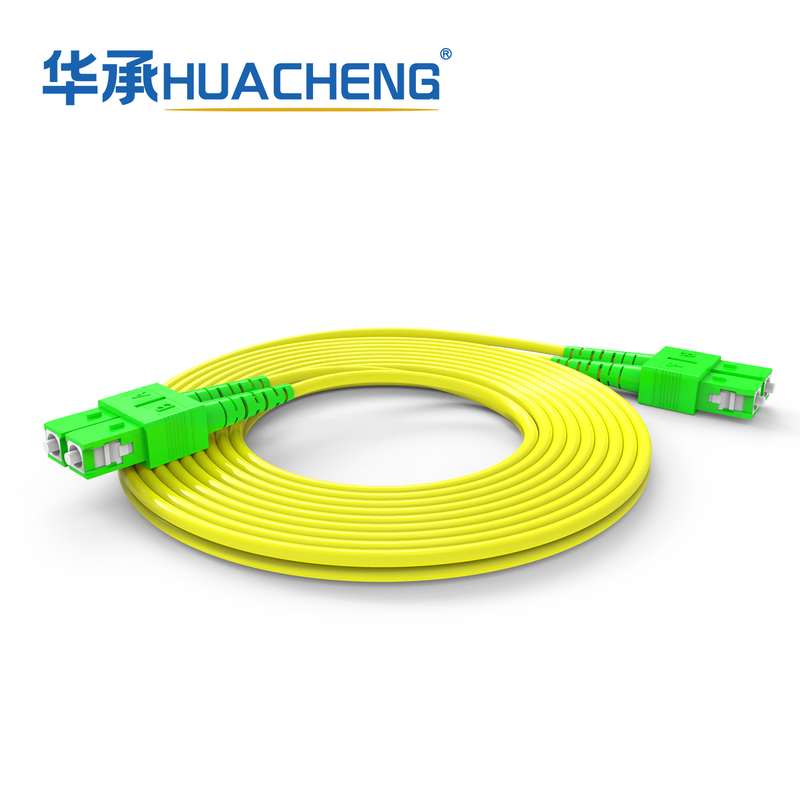

HUACHENG SC/APC-SC/APC Duplex Jumper, Bend Insensitive Single Mode, Tight-Buffered, 2.0mm, Plenum

Single fiber connector jumpers are assembled with simplex cables, zipcords, or 2-fiber single-jacket cables in outer diameters of 3.0 mm, 2.0 mm and 1.6 mm. Available fiber connector types include LC, SC, FC and ST. Cable flame ratings cover LSZH, Riser and Plenum.

Availability:



Inquire Add to Basket

Model:
SF Jumper
Brand:
Huacheng
Fiber Type:
SM
Connector:
Duplex SC
Flame Rating:
Plenum (OFNP)

Specification

Downloads

General

Product Type	SC/APC-SC/APC Duplex Jumper
Cable Type	Interconnect, Indoor
Fiber Type	Bend Insensitive Single-mode (OS2)
Fiber Count	2
Max Insertion Loss, Assembly	0.5 dB
Length, Assembly	1~100 m

Standards and Regulatory Compliance

Cable Qualification Standards	ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-10
Assemblies Qualification Standards	TIA-568-C.3
Flame Rating Standards	NFPA 262
RoHS	Compliant with 2011/65/EU and (EU) 2015/863

Environmental Conditions

Operating Temperature	-10°C ~ 60°C
Installation Temperature	0°C ~ 50°C
Transport and Storage Temperature	-20°C ~ 70°C

Cable Design

Cable Type	Tight-Buffered, Zip Cord
Fiber Count	2
Fiber Type	Single-mode (OS2)
Outer Diameter, Jacket	2.0 mm
Thickness, Jacket	0.3 mm
Color, Jacket	Yellow
Tensile Strength Elements	Aramid Yarns
Flame Rating	LSZH

Mechanical Specifications

Max. Tensile Strength, Short-Term	100 N
Max. Tensile Strength, Long-Term	30 N
Max. Crush Strength, Short-Term	35 N/cm
Min. Bend Radius Installation	30 mm
Min. Bend Radius Operation	20 mm

Optical Characteristics

Fiber Type	Bend Insensitive Single-mode (OS2)
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Compliance	ITU-T G.657.A1 and ITU-T G.652.D
Max. Macro Loss, 10 mm Mandrel Radius, 1 Turn	0.75 dB @1550nm, 1.5 dB @1625nm (Uncabled)
Max. Macro Loss, 15 mm Mandrel Radius, 10 Turn	0.25 dB @1550nm, 1.0 dB @1625nm (Uncabled)

Dimensions

Cable Weight

xx kg/km

Connector A

Connector Type	SC, APC, Duplex
Ferrule Material	Ceramic
Housing Color	Green
Insertion Loss, Maximum	0.25 dB
Return Loss, Minimum	60 dB
Boot Type	Round
Boot Color	Green
Boot Length	27 mm

Connector B

Connector Type	SC, APC, Duplex
Ferrule Material	Ceramic
Housing Color	Green
Insertion Loss, Maximum	0.25 dB
Return Loss, Minimum	60 dB
Boot Type	Round
Boot Color	Green
Boot Length	27 mm
