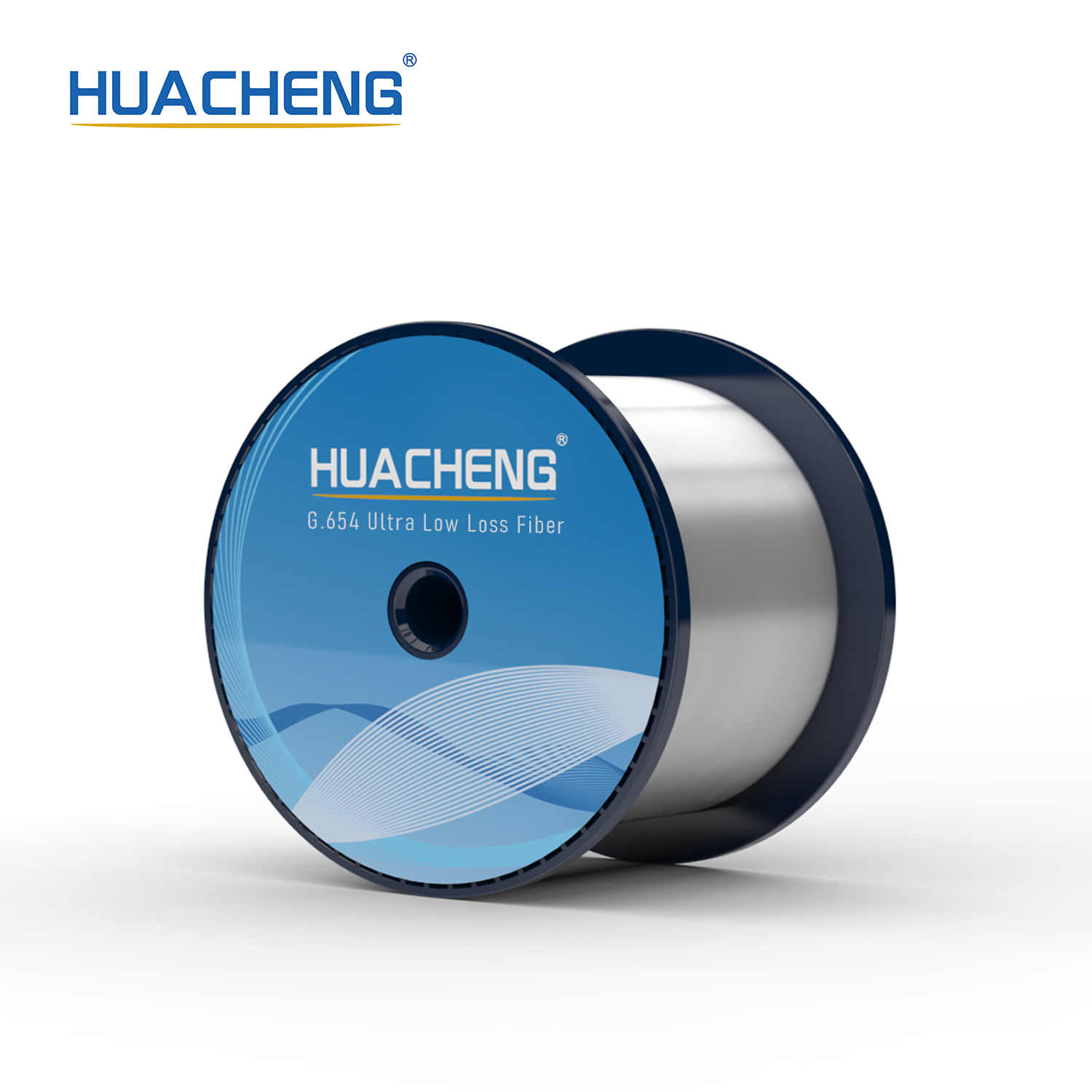

HUACHENG Single-Mode G.654 Ultra Low Loss and Large Effective Area Fiber Series

G.654 Ultra Optical Fiber, with its excellent performance, can support current 40G and 100G systems and even meet the demands of future 400G or higher systems. Therefore, HUACHENGG.654 Ultra Optical Fiber is the best choice for long-distance terrestrial transmission and submarine cables.

Characteristics

Larger effective area reduces nonlinear effect and enables higher signal power launched into the transmission system.
Enable higher transmission speeds with more wavelengths over ultra long-haul distances.
Lower attenuation level which meets the demand of extended long distance transmission
Reduce number of repeaters and minimize CAPEX and OPEX.
Lower bending induced loss to meet complicated deployment conditions and cable structures.
G.654 Ultra fiber complies with or exceeds the ITU-T G.654.B/E recommendation and IEC 60793-2-50 B1.2 specification.

Availability:



Inquire Add to Basket

Model:
G.654
Brand:
HUACHENG

G.654 Single-mode Ultra Optical Fiber

Specifications （G654）O125:U1O125:U163
Characteristics		Conditions	Speciﬁed values		Units
Optical Speciﬁcations
Nominal Eﬀective Area		1550nm	110	125	[μm²]
Mode Field Diameter		1550nm	11.4-12.2	12.0-13.0	[μm]
		1550nm	≤0.17		[dB/km]
Attenuation		1625nm	≤0.20		[dB/km]
Attenuation vs. Wavelength		1525-1575nm, in reference to 1550nm	≤0.02		[dB/km]
Max. α diﬀerence		1550-1625nm, in reference to 1550nm	≤0.03		[dB/km]
Dispersion Coeﬃcient		1550nm	≤23		[ps/nm·km]
		1625nm	≤27		[ps/nm·km]
Dispersion Slope		1550nm	0.050-0.070		[ps/nm²·km]
PMD	Maximum Individual Fibre	--	≤0.1		[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.06		[ps/√km]
	Typical Value	--	0.04		[ps/√km]
Cable Cutoﬀ Wavelength (λ_CC)		--	≤ 1520		[nm]
Eﬀective Group Index of Refraction		1550nm	1.463	1.465	--
Point Discontinuities		1550nm	≤0.05		[dB]
Geometrical Speciﬁcations
Cladding Diameter		--	125.0±1.0		[μm]
Cladding Non-Circularity		--	≤1.0		[%]
Coating Diameter		--	235-255		[μm]
Coating-Cladding Concentricity		--	≤12		[μm]
Coating Non-Circularity		--	≤6		[%]
Core-Cladding Concentricity		--	≤0.6		[μm]
Fibre Curl(Radius)		--	≥4		[m]
Delivery Length¹		--	Up to 25.2		[km/reel]
Environmental Speciﬁcations @1550nm & 1625nm
Temperature Dependence		-60℃ to +85℃	≤0.05		[dB/km]
Temperature-Humidity Cycling		-10°C to +85°C, 98% RH	≤0.05		[dB/km]
Water Immersion		23°C，for 30 days	≤0.05		[dB/km]
Damp Heat		85°C , 85% RH，for 30 days	≤0.05		[dB/km]
Heat Aging		85℃，30 days	≤0.05		[dB/km]
Mechanical Speciﬁcations
Proof Test²		--	≥9.0		[N]
		--	≥1.0		[%]
		--	≥100		[kpsi]
Macro-bend Induced Loss	100 Turns Around a Mandrel of 30 mm Radius	1550nm	≤0.10		[dB]
		1625nm	≤0.10		[dB]
Coating Strip Force		typical average force	1.5		[N]
		peak force	1.3-8.9		[N]
Dynamic Fatigue Parameter(n_d)		--	≥20		--
