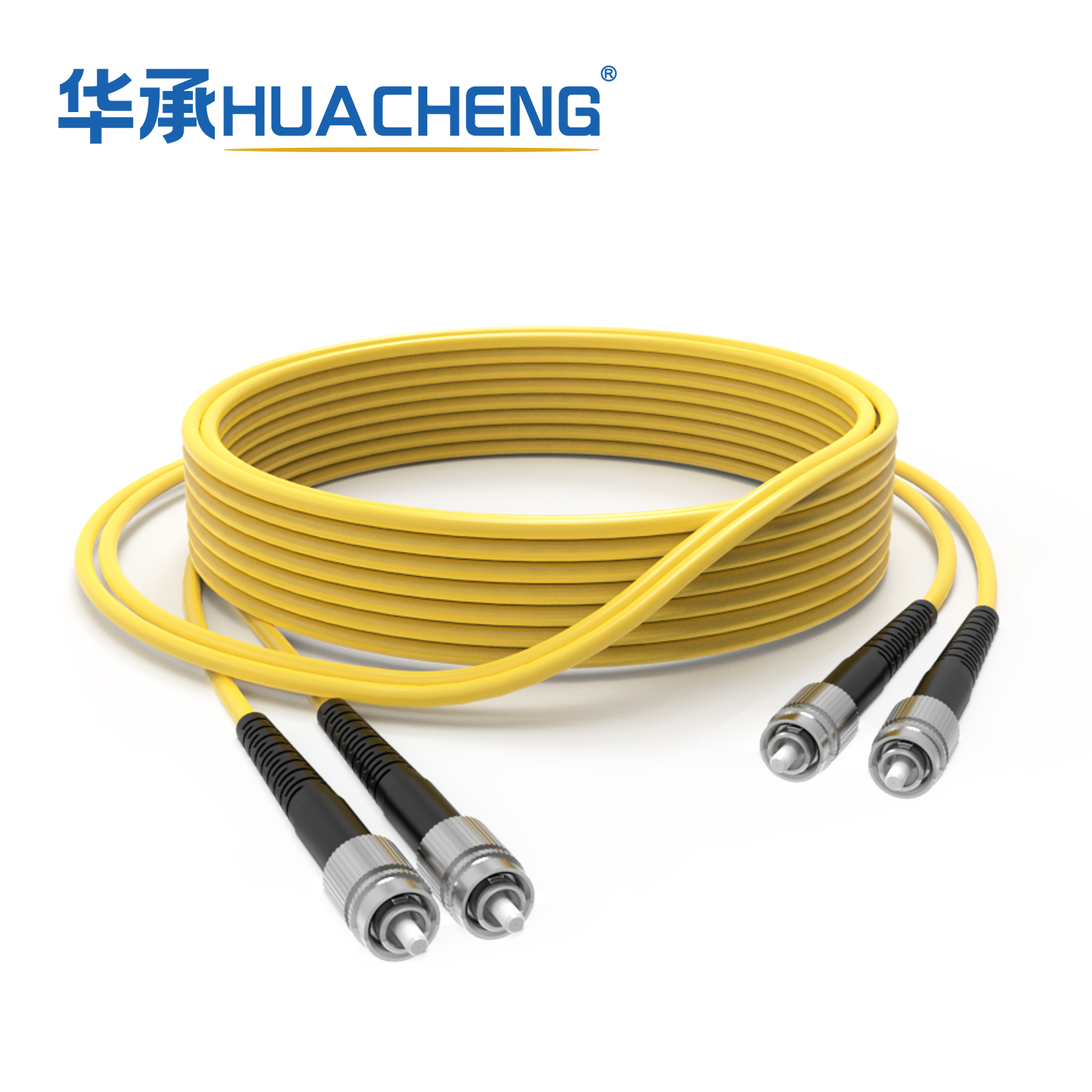

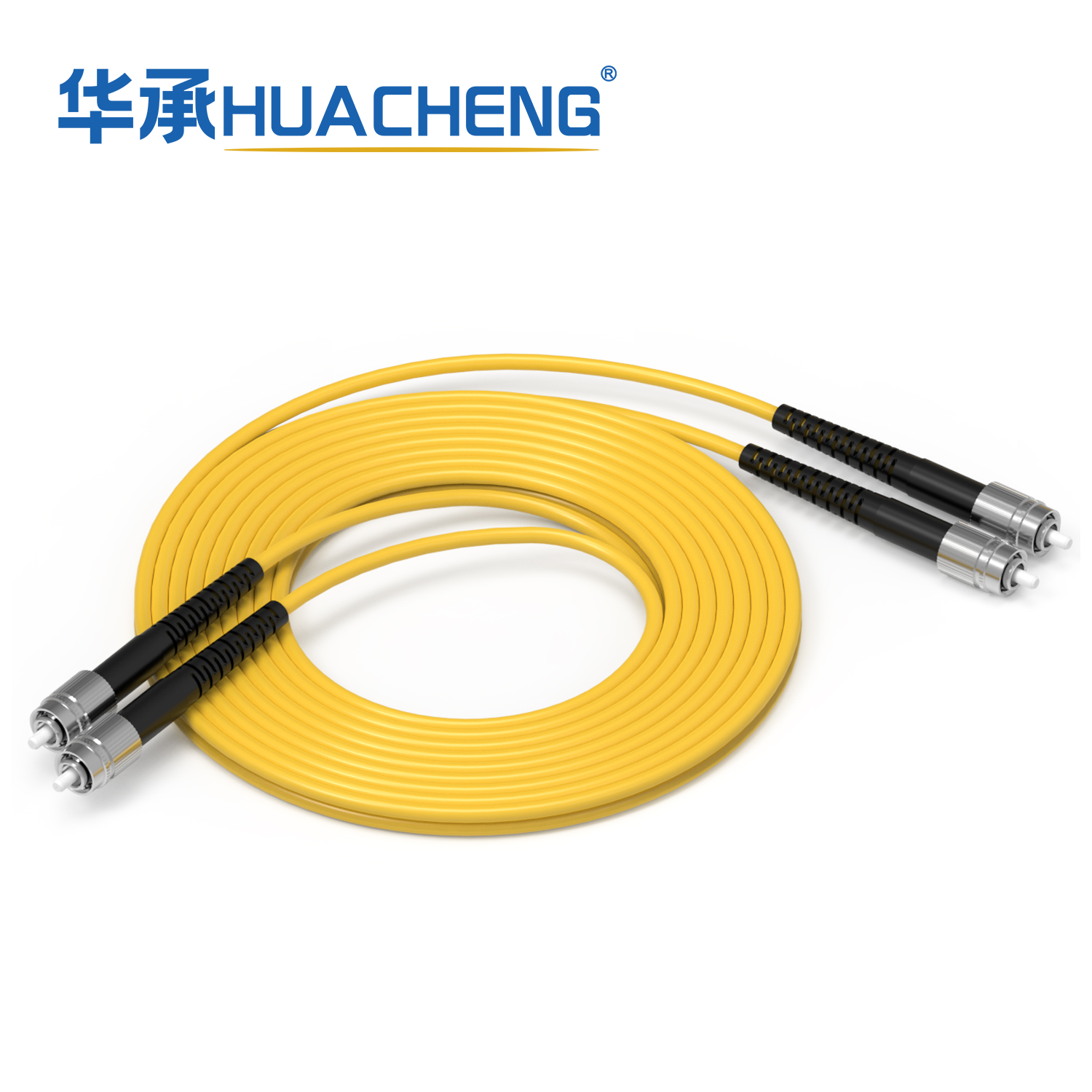

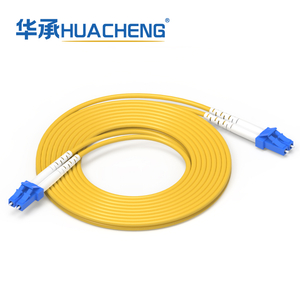

Fiber optic patch cord means that both ends of the optical cable are equipped with connector plugs to realize the active connection of the optical path; one end with a plug is called a pigtail. Fiber optic patch cords are similar to coaxial cables, but without the mesh shield. In the center is the glass core for light propagation. In a multimode fiber, the diameter of the core is 50 μm to 65 μm, roughly equivalent to the thickness of a human hair. The single-mode fiber core has a diameter of 9 μm. The core is surrounded by a glass jacket with a lower refractive index than the core to keep the fiber inside the core. On the outside is a thin plastic jacket to protect the envelope.
Characteristic
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPCAPC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
- Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
