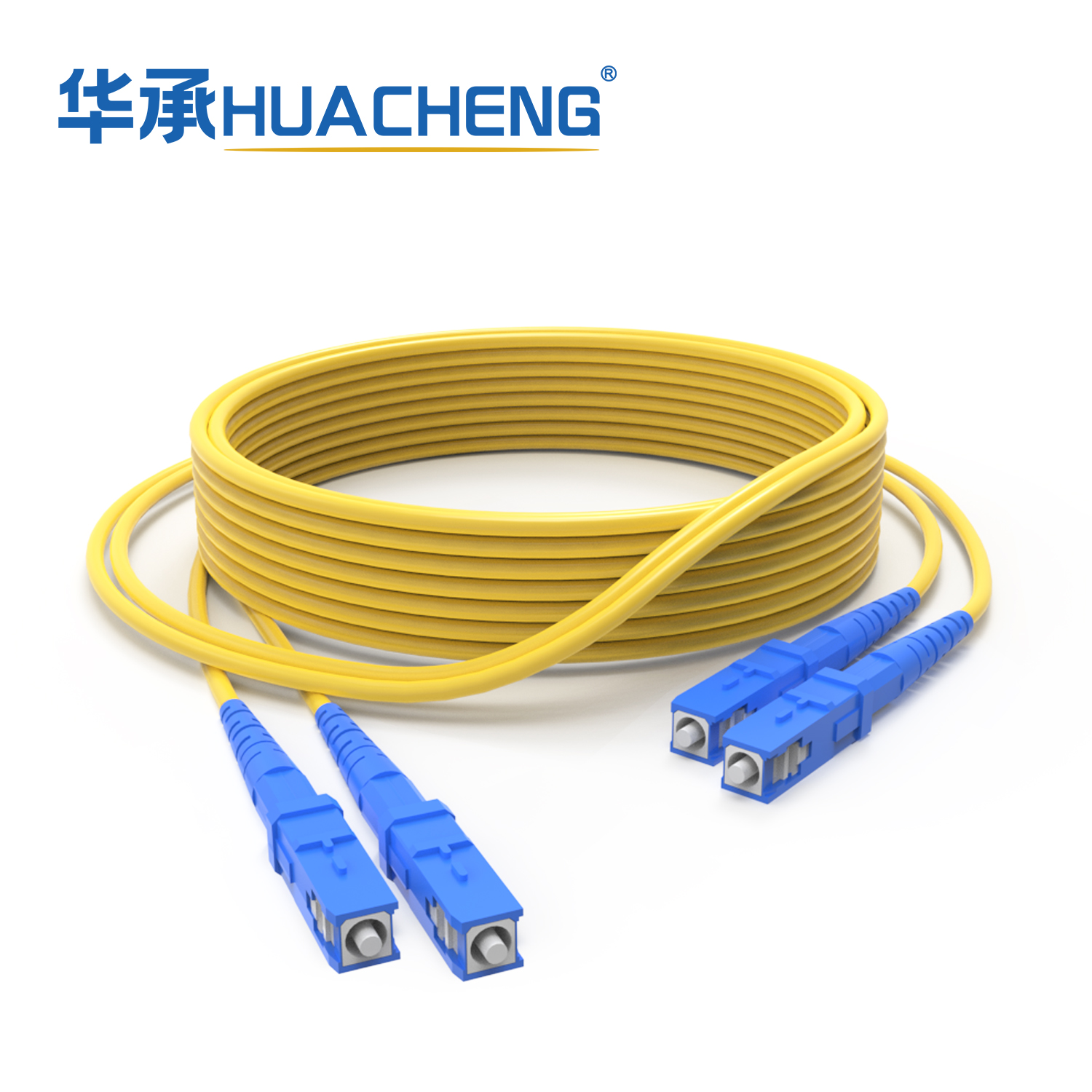

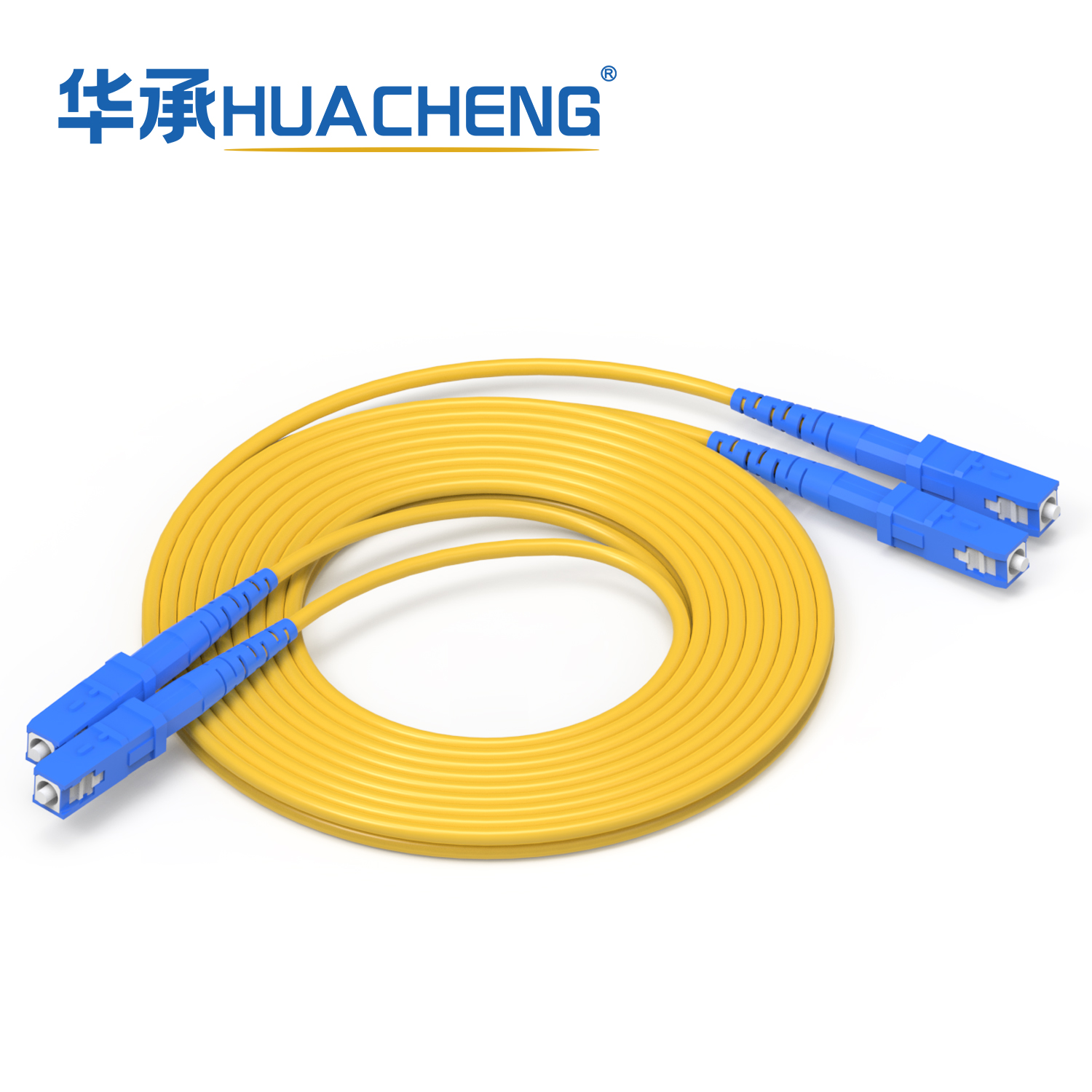

HUACHENG DSC Fiber Optic Patch Cords

OS2 SC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Characteristic

Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability

Availability:



Inquire Add to Basket

Brand:
Huacheng

Product Description

Warranty Information Warranty	Lifetime	Performance Maximum Data Transfer Rate Cable Rating Type Wavelength General Specifications	100Gbps 1Gbps/10Gbps/40Gbps/100Gbps Single Mode 1260nm to 1625nm Insertion Loss:≤0.3dB Return Loss:≥55dB
Connector(s) Connector A Connector B	1-Fiber Optic SC Duplex 1-Fiber Optic SC Duplex
Environmental Operating Temperature Storage Temperature Humidity	20℃-60℃(-4°F-140°F) 20℃-60℃(-4°F-140°F) 40%-70%
		Physical Characteristics Color Product Height Product Length Weight of Product Product Width Connector Style Material Cable Length Cable OD	Yellow 1.0 cm [0.4 in] 3.0 m [9.8 ft] 62g[2.2 oz] 2.5 cm [1.0 in] Straight Polypropylene(PP) 3m[9.8t] 2 mm [0.1 in]
Hardware Cable Jacket Material Fire Rating Fiber Size Fiber Classification	Low Smoke Zero Halogen LSZH Rated(Low Smoke Zero Halogen) 9/125 OS2
Packaging Information Package Height Package Length Shipping(Package)Weight Package Width	1.3 cm [0.5 in] 16.5 cm [6.5 in] 46.0g[1.6 oz] 19.7 cm [7.8 in]
		What's in the Box Included in Package	1-Single Mode Fiber Cable-SC to SC 1-Test Report

Applications

Use in 40/100 Gigabit Ethernet and fiber-channel applications
For high-speed, low-latency connections between servers, switches, and storage devices
Enable seamless data transmission with minimal signal loss
