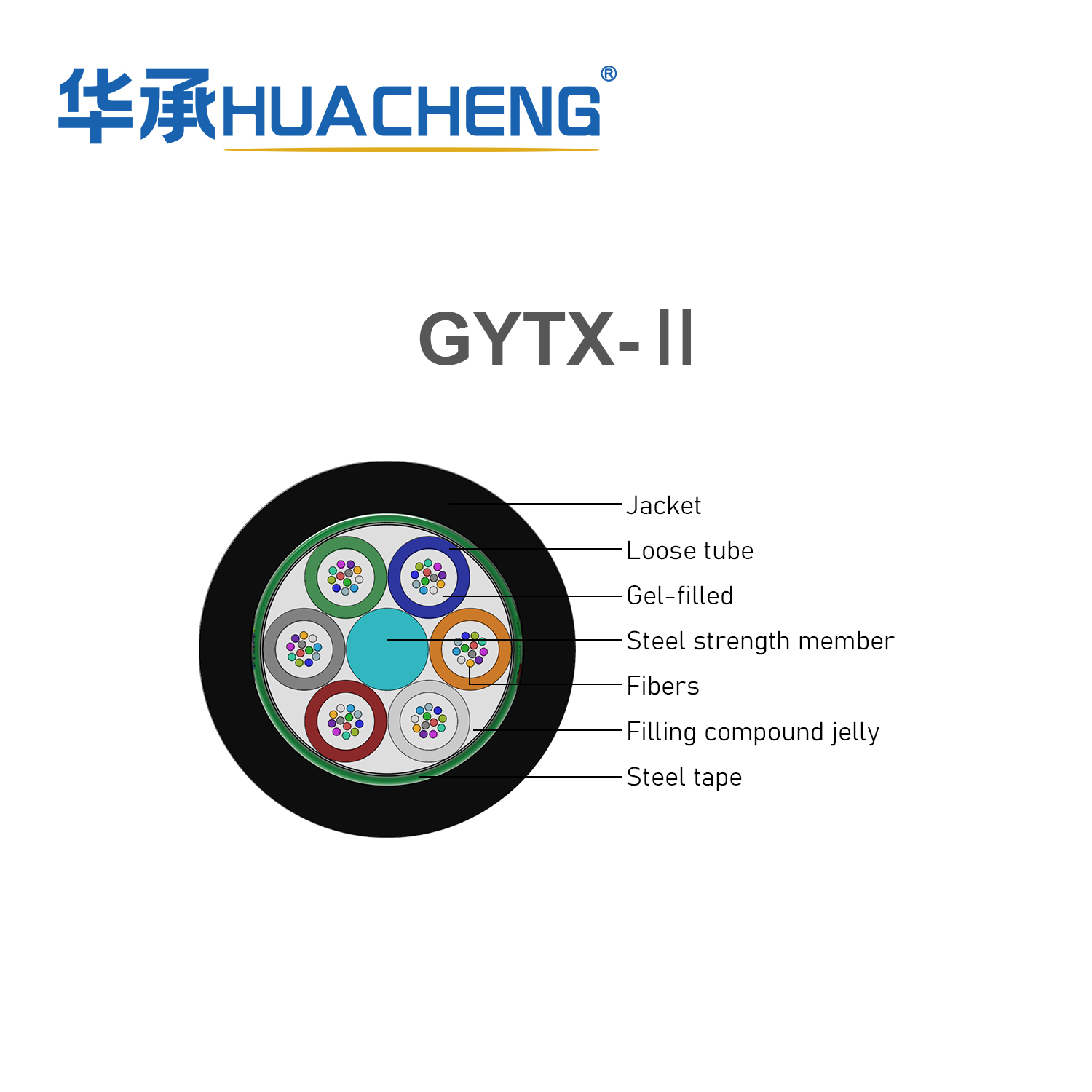

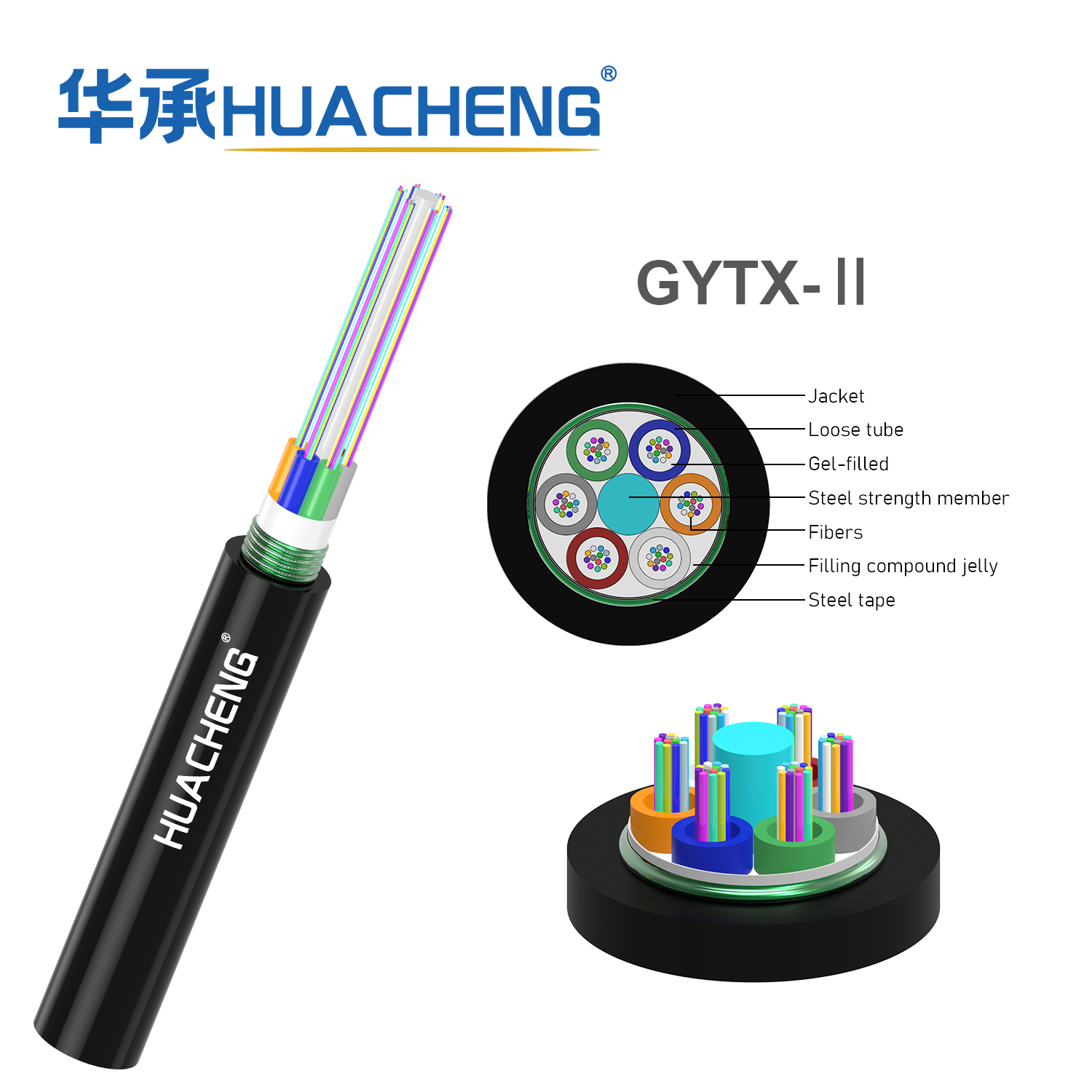

HUACHENG Defence Main Cable GYTX-Ⅱ 4-144 Core

The cable with Double tidal layer design, moisture proof peformance is more superior. Ultra low loss,ow polarization film dispersion coefficient, especially suitable for the new generrtion 400G transmission system with ultra-long links, ultra-long spans, and ultrr-high rates. International leading cable development platform and quality guarantee system, precise process control to guarantee the consistency and stab山ty of the product.

Characteristics

Main special optical fiber with low loss and bending performance
Pine casing has better toughness and resistance to pressure.hydrolysis resistance properties
Fiber has better mechanical and environmental performance.corrosion resistance,easyinstallationinstallation,and branches

Availability:



Inquire Add to Basket

Model:
GYTX-Ⅱ 4-144
Brand:
HUACHENG

Product Features

Fiber Optic Cable Performance Parameters

Tensile Strength		Crush Strength		Bending Radius		Operating temperature
Long Term (N)	Short Term (N)	Long Term(N/100mm)	Short Term (N/100mm)	Dynamic	Static
800	2000	500	1000	20D	10D	-40°C~+70°C

Fiber Optic Cable Structural Parameters

Outer Diameter
Fiber cores	umber per tube	(mm) Cable diameter	(kg/km) Weight
4-30	6	10.0	112
36	6	10.4	132
48-60	12	11.8	147
72	12	12.6	188
84	12	13.6	211
96	12	14.2	230
108	12	15.1	251
120	21	16	275
132	21	16.7	295
144	12	17.6	321
