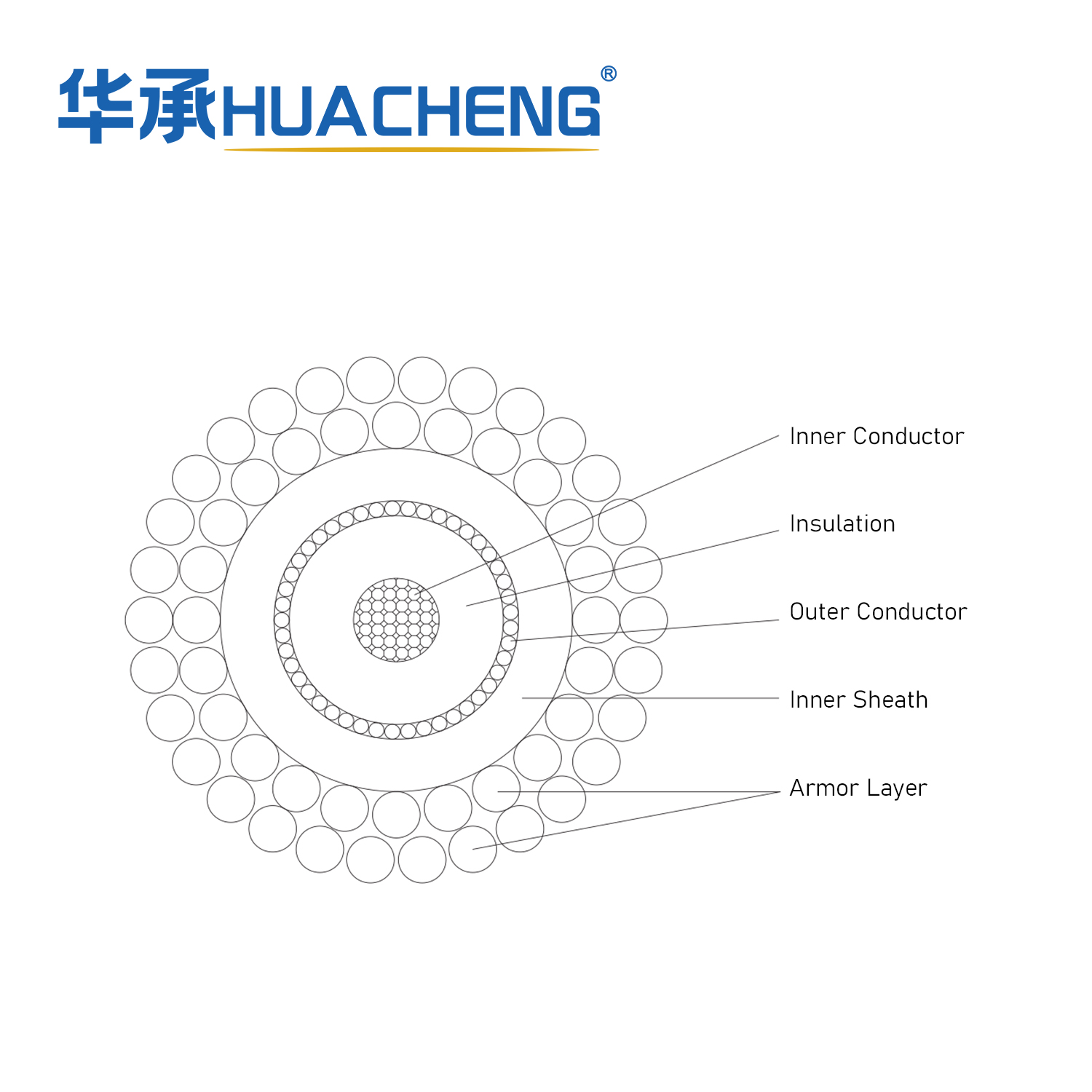

HUACHENG Steel Wire Armored Coaxial Cable

HUACHENG Steel Wire Armored Coaxial Cable is engineered for marine scientific research, delivering stable power supply and high-performance data transmission for a wide range of underwater equipment, including CTD profilers, sensors, water samplers, and current meters.
Characteristics

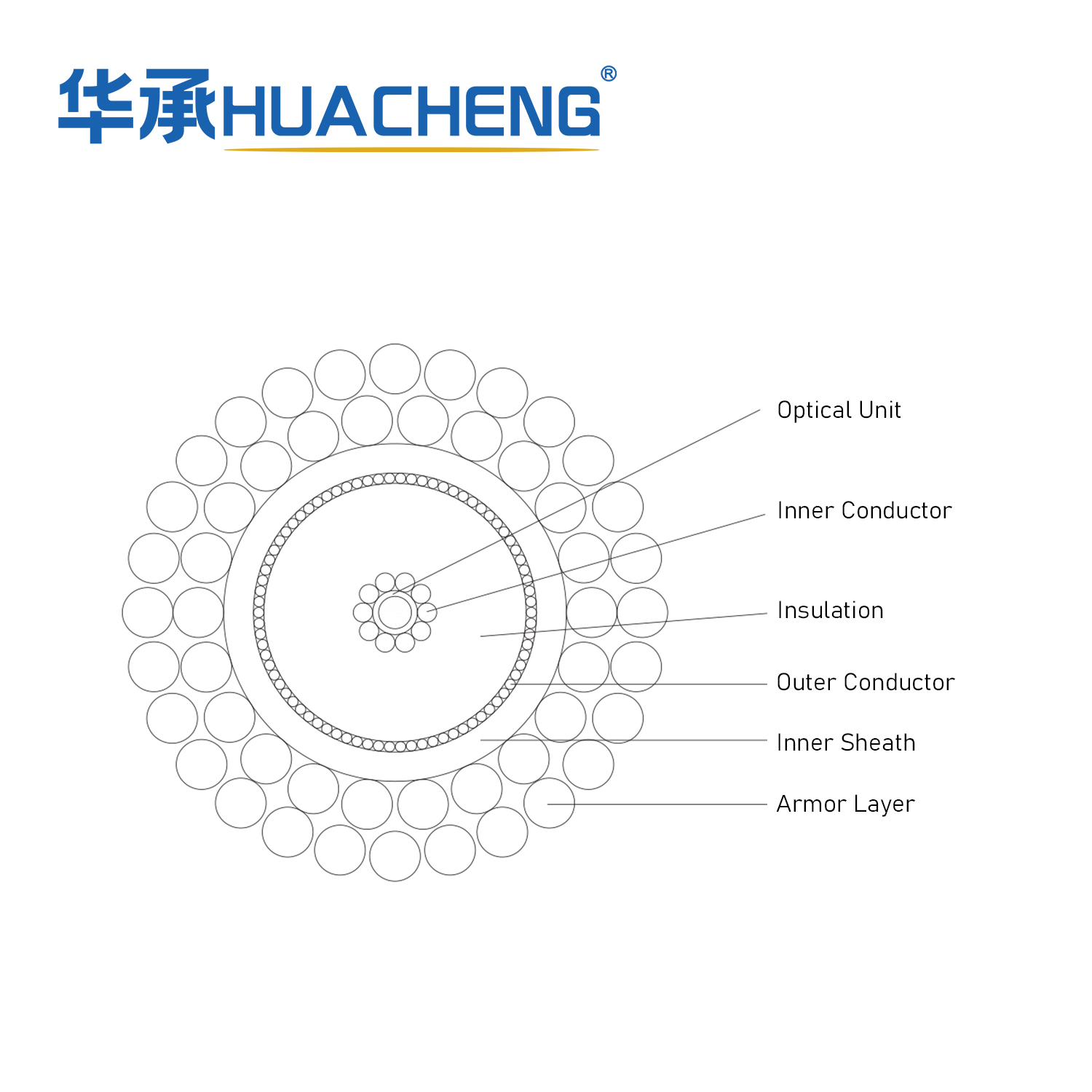

  • Optional optical unit with stainless steel tube protection
  • Bare/tinned copper inner & outer conductors
  • HDPE/XLPE insulation and HDPE inner sheath
  • Robust steel wire armor
  • Reliable power and data transmission for marine research equipment
Availability:
Inquire Add to Basket

  • Steel Wire Armored Coaxial Cable

  • HUACHENG

Product Features

Number of fiber cores

Max. 12 cores

Working voltage

Max. 3 kV

Minimum breaking strength

Max. 300 kN

Working water depth

Max. 11000 m

Attenuation

@1310 nm: ≤0.40 dB/km

@1550 nm: ≤0.30 dB/km

Working temperature

Low temperature: Min. -20 °C

High temperature: Max. +90 °C


Product Features
Inquire

Related Products

HUACHENG Customized Components
HUACHENG Customized Components
HUACHENG Attachments: Portable Winch, Cable Towing Head, Cable Grip
HUACHENG Attachments: Portable Winch, Cable Towing Head, Cable Grip
HUACHENG Waterproof Connector Rubber Type/Metal Type
HUACHENG Waterproof Connector Rubber Type/Metal Type
HUACHENG Watertight Cable
HUACHENG Watertight Cable
HUACHENG Dynamic Optical Cable
HUACHENG Dynamic Optical Cable
HUACHENG Zero Buoyancy Optical Cable
HUACHENG Zero Buoyancy Optical Cable
HUACHENG Submarine Optical Cable
HUACHENG Submarine Optical Cable
HUACHENG Towing Cable
HUACHENG Towing Cable

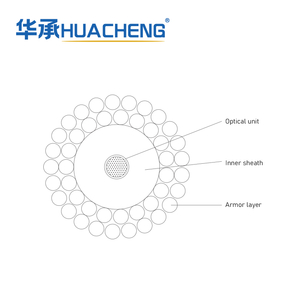

HUACHENG Umbilical Cable
