Fiber Optic Cable Performance Parameters
| Tensile Strength | Crush Strength | Bending Radius | Operating temperature |
| Long Term (N) | Short Term (N) | Long Term(N/100mm) | Short Term (N/100mm) | Dynamic | Static |
|
| 1000 | 2000 | 800
| 1500 | 20D | 10D | -40°C~+70°C |
Fiber Optic Cable Structural Parameters
| Outer Diameter |
| Fiber cores | umber per tube | (mm) Cable diameter | (kg/km) Weight |
| 4-30 | 6 | 10.2 | 114
|
| 36 | 6
| 10.6 | 134 |
| 48-60 | 12
| 12.0 | 149 |
| 72 | 12 | 12.8
| 190 |
| 84 | 12 | 13.8 | 213 |
| 96 | 12 | 14.4 | 233 |
| 108 | 12 | 15.3 | 254 |
| 120 | 21 | 16.2 | 278 |
| 132 | 21 | 16.9
| 298 |
| 144 | 12 | 17.8 | 325 |
Application environment
The messenger overhead,and pipe laying
Applicable temperature.-40°C~+70°C
For long distance transmission network

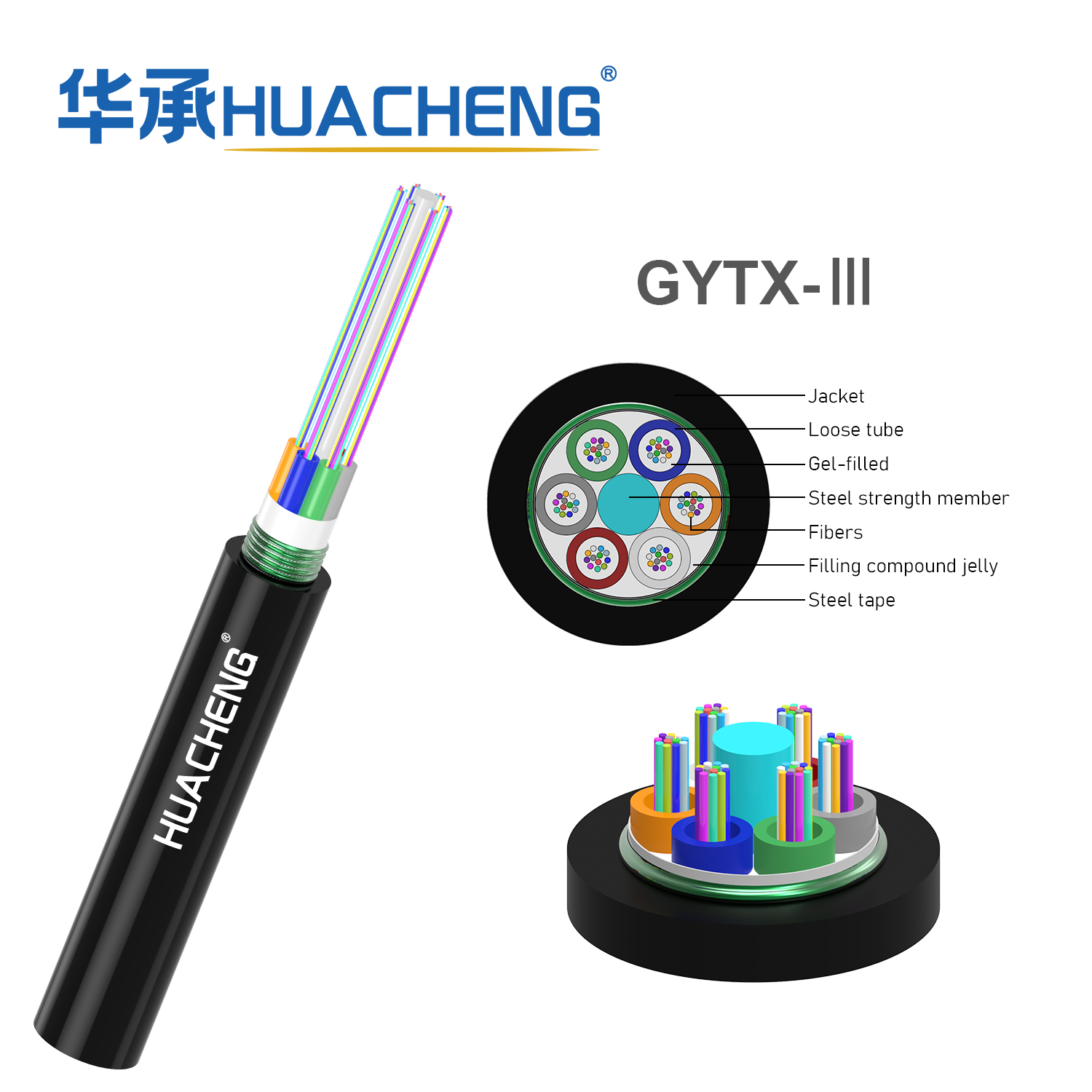

Structural characteristics
GYTX-Ⅲ dedicated ultra-high strength metal reinforcement
SZ stranding optical fiber loose casing,compact structure,stable
GYTX-Ⅲ special plastic coated grain chrome plated rust steel tape armoured
Super resistance to climate,anti-aging,uv special polyethylene sheath
