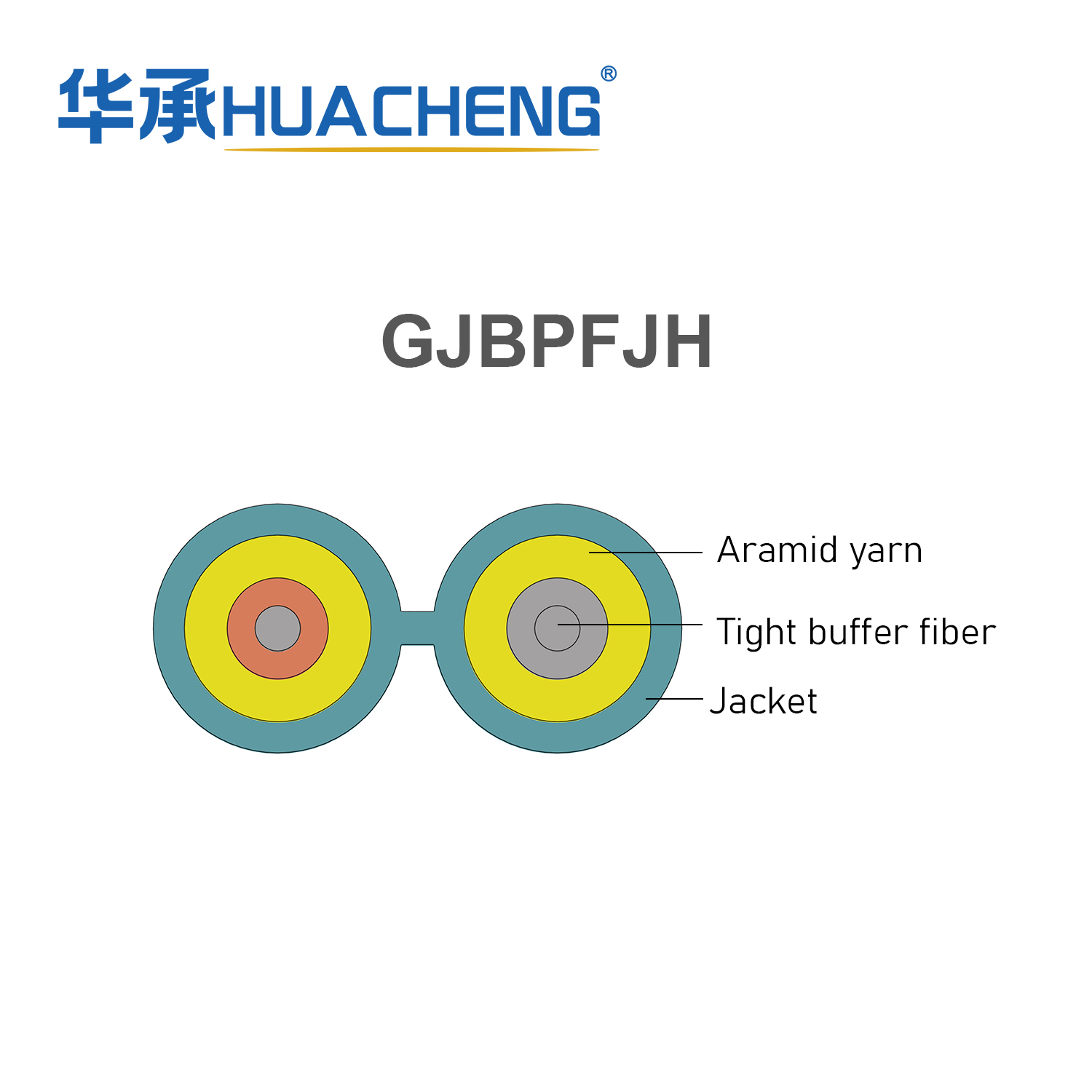

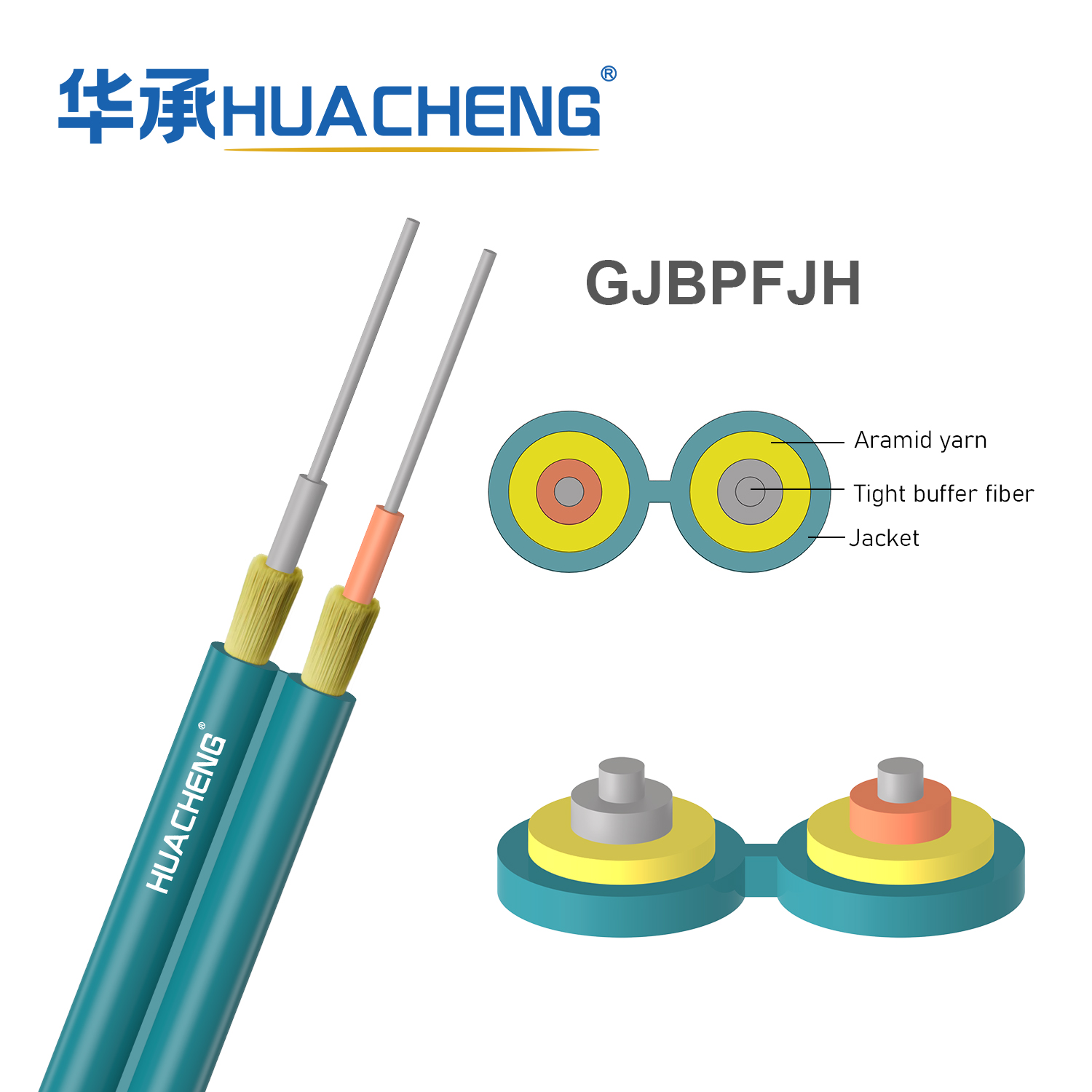

GJBPFJH
HUACHENG
Fiber Optic Cable Performance Parameters
| Tensile Strength | Crush Strength | Bending Radius | |||
| Long Term (N) | Short Term (N) | Long Term (N/100mm) | Short Term (N/100mm) | Dynamic | Static |
| 100 | 200 | 100 | 500 | 20D | 10D |
Fiber Optic Cable Structural Parameters
| Cable code | Tight Buffered Fiber Diameter (μm) | Nominal Weight (kg) | Cable Diameter (mm) |
| GJBPFJH-2Xn | 600 | 4.2 | 1.6×3.3 |
| GJBPFJH-2Xn | 600 | 5.4 | 1.8×3.7 |
| GJBPFJH-2Xn | 900 | 6.7 | 2.0×4.2 |
| GJBPFJH-2Xn | 900 | 12.7 | 2.9×5.8 |
