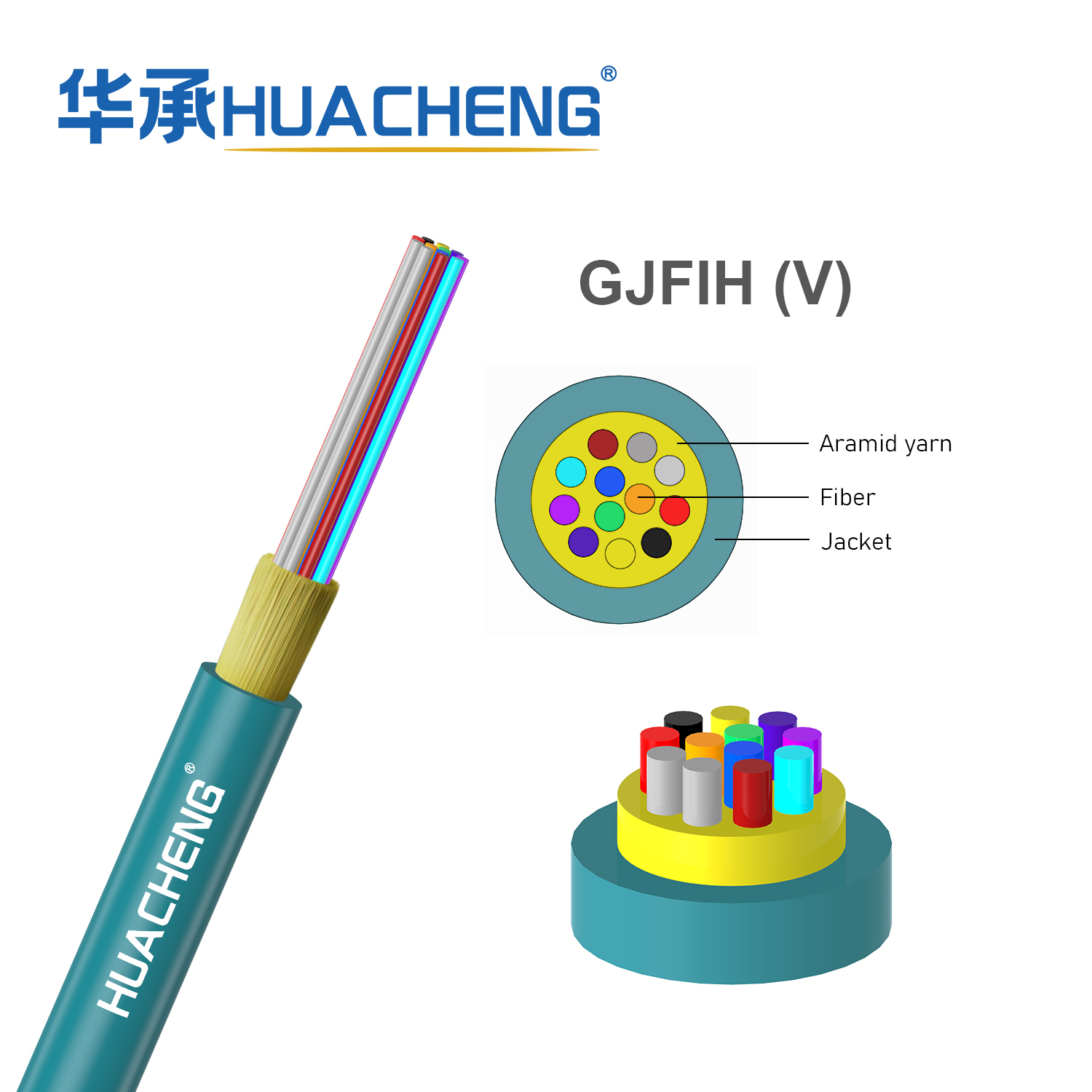

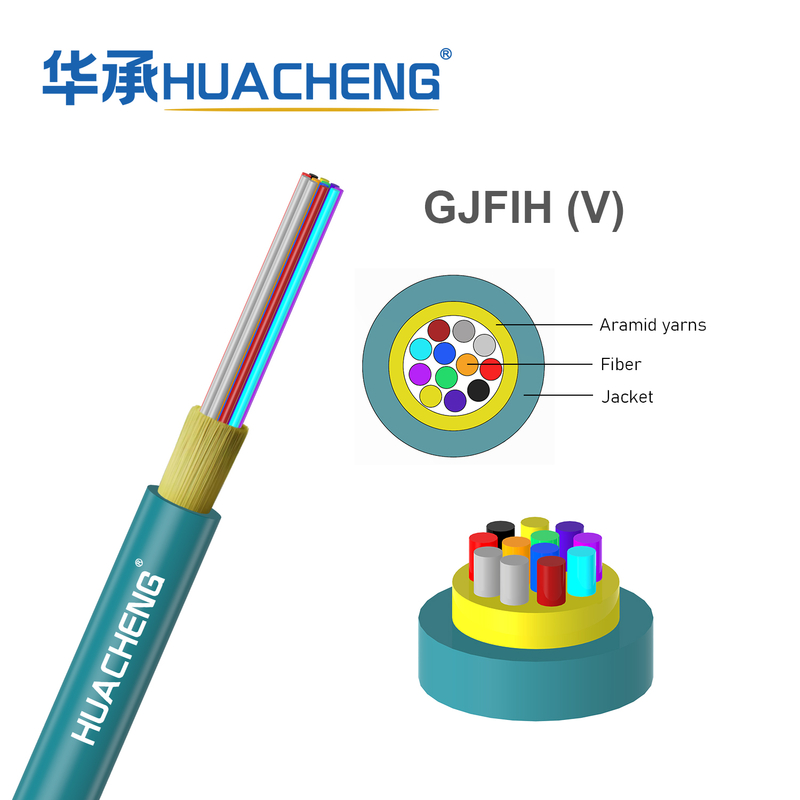

GJFIH(V)
HUACHENG
Fiber Optic Cable Performance Parameters
| Tensile Strength | Crush Strength | Bending Radius | |||
| Long Term (N) | Short Term (N) | Long Term (N/100mm) | Short Term (N/100mm) | Dynamic | Static |
| 50 | 150 | 100 | 500 | 20 | 10 |

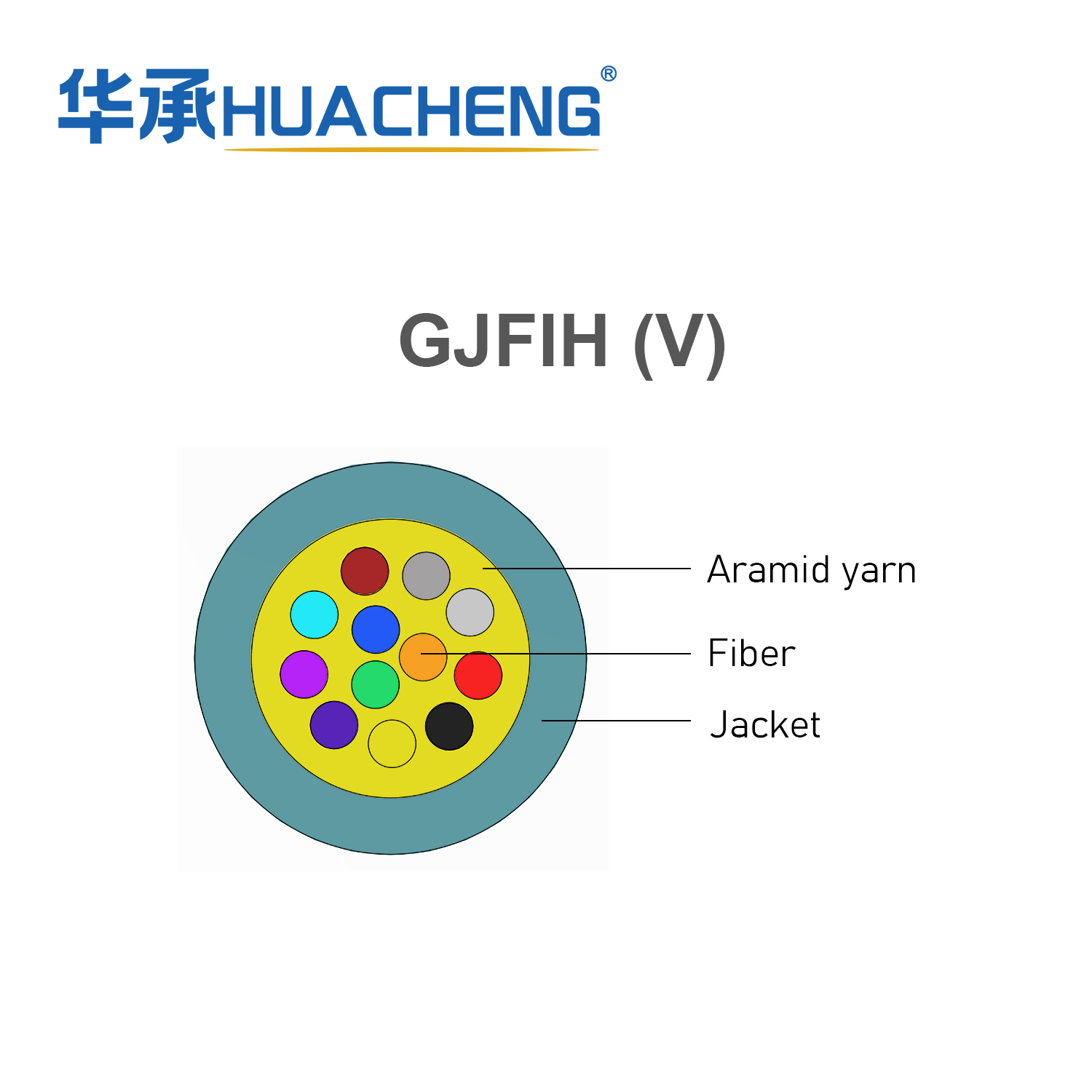

Fiber Optic Cable Structural Parameters
| Cable code | Nominal Weight (kg) | Cable Diameter (mm) | Wall Thickness (mm) |
| GJFIH(V)-2Xn | 7 | 3 | 0.5 |
| GJFIH(V)-4Xn | 7 | 3 | 0.5 |
| GJFIH(V)-6Xn | 7 | 3 | 0.5 |
| GJFIH(V)-8Xn | 7 | 3 | 0.5 |
| GJFIH(V)-12Xn | 8 | 3 | 0.5 |
| GJFIH(V)-24Xn | 18 | 3.5 | 0.5 |
