| Sheath Color: | |
|---|---|
| Availability: | |

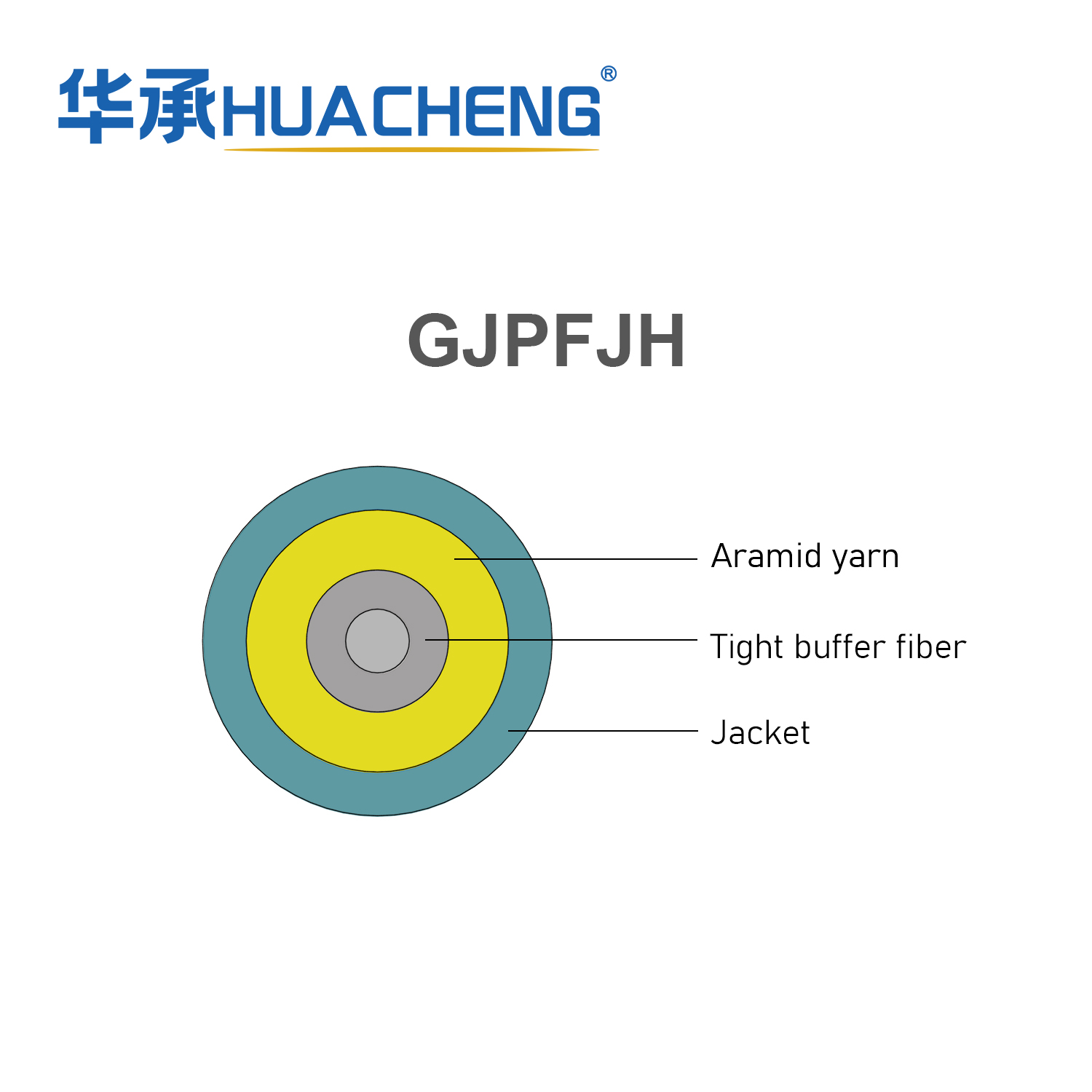

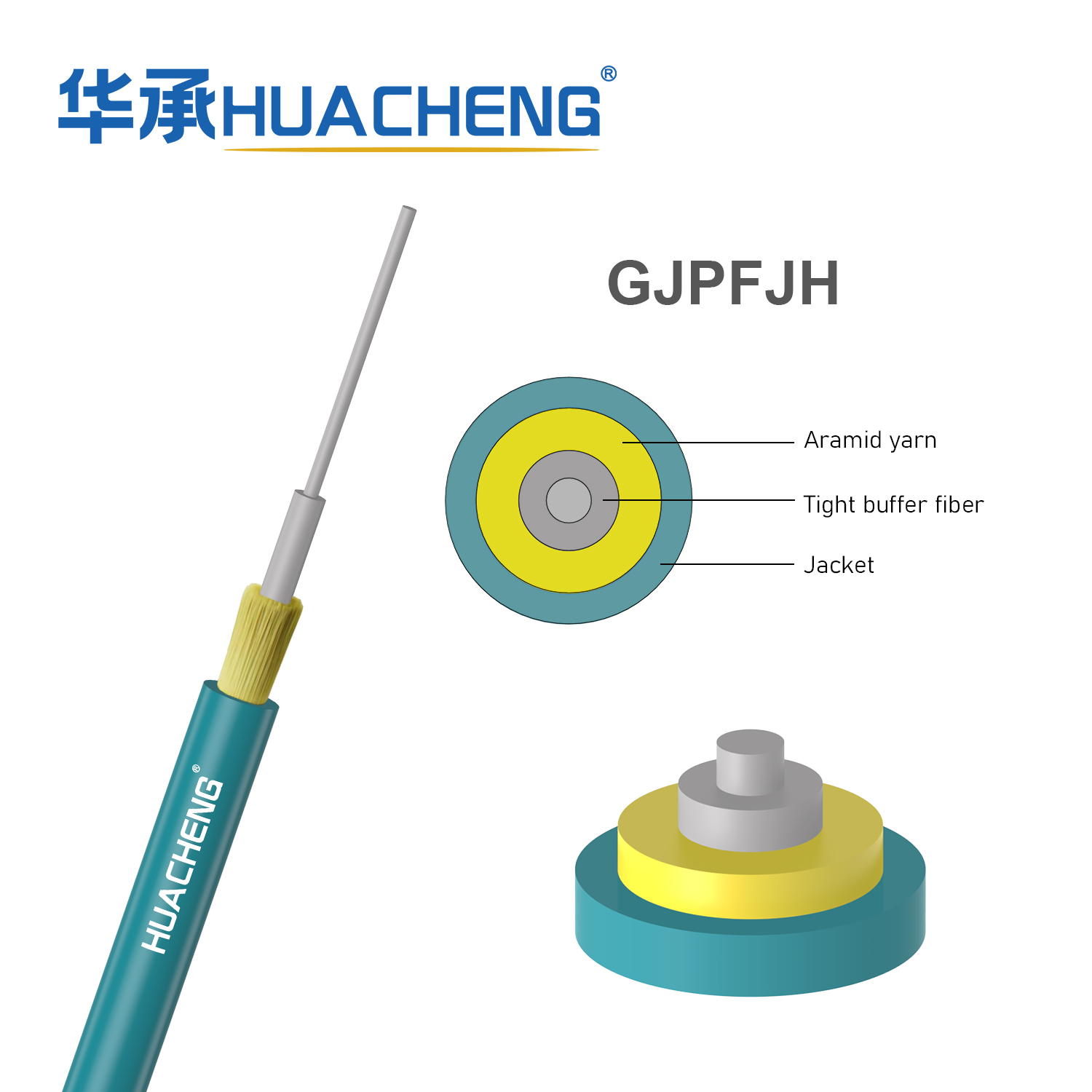

GJPFJH
HUACHENG
Fiber Optic Cable Performance Parameters
| Tensile Strength | Crush Strength | Bending Radius | |||
| Long Term (N) | Short Term (N) | Long Term (N/100mm) | Short Term (N/100mm) | Dynamic | Static |
| 60 | 100 | 100 | 500 | 20D | 10D |
Fiber Optic Cable Structural Parameters
| Cable code | Tight Buffered Fiber Diameter (μm) | Nominal Weight (kg) | Cable Diameter (mm) |
| GJPFJH-1Xn | 600 | 2.5 | 1.6 |
| GJPFJH-1Xn | 900 | 3 | 1.8 |
| GJPFJH-1Xn | 900 | 3.8 | 2 |
| GJPFJH-1Xn | 900 | 4.9 | 2.4 |
| GJPFJH-1Xn | 900 | 6.4 | 2.9 |
