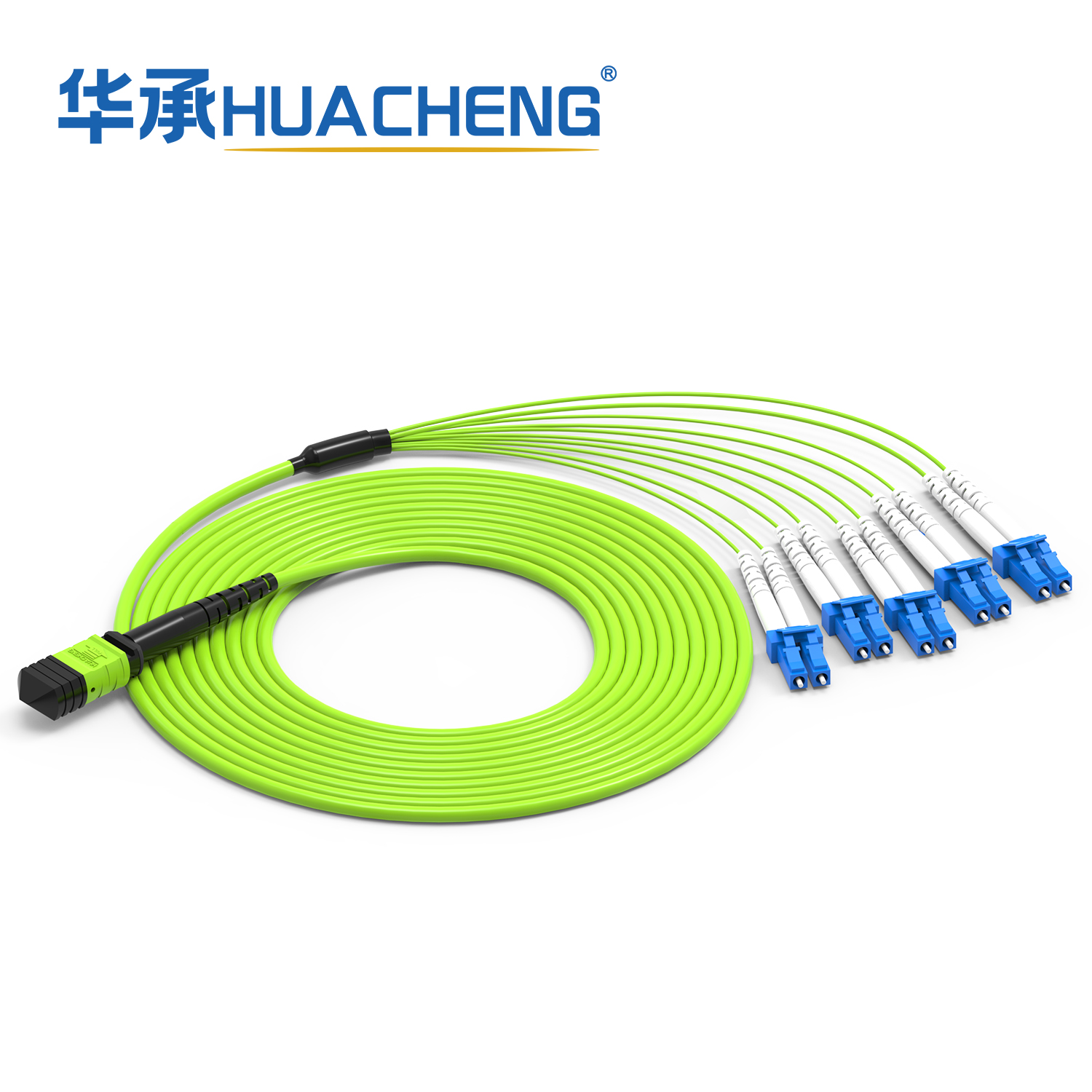

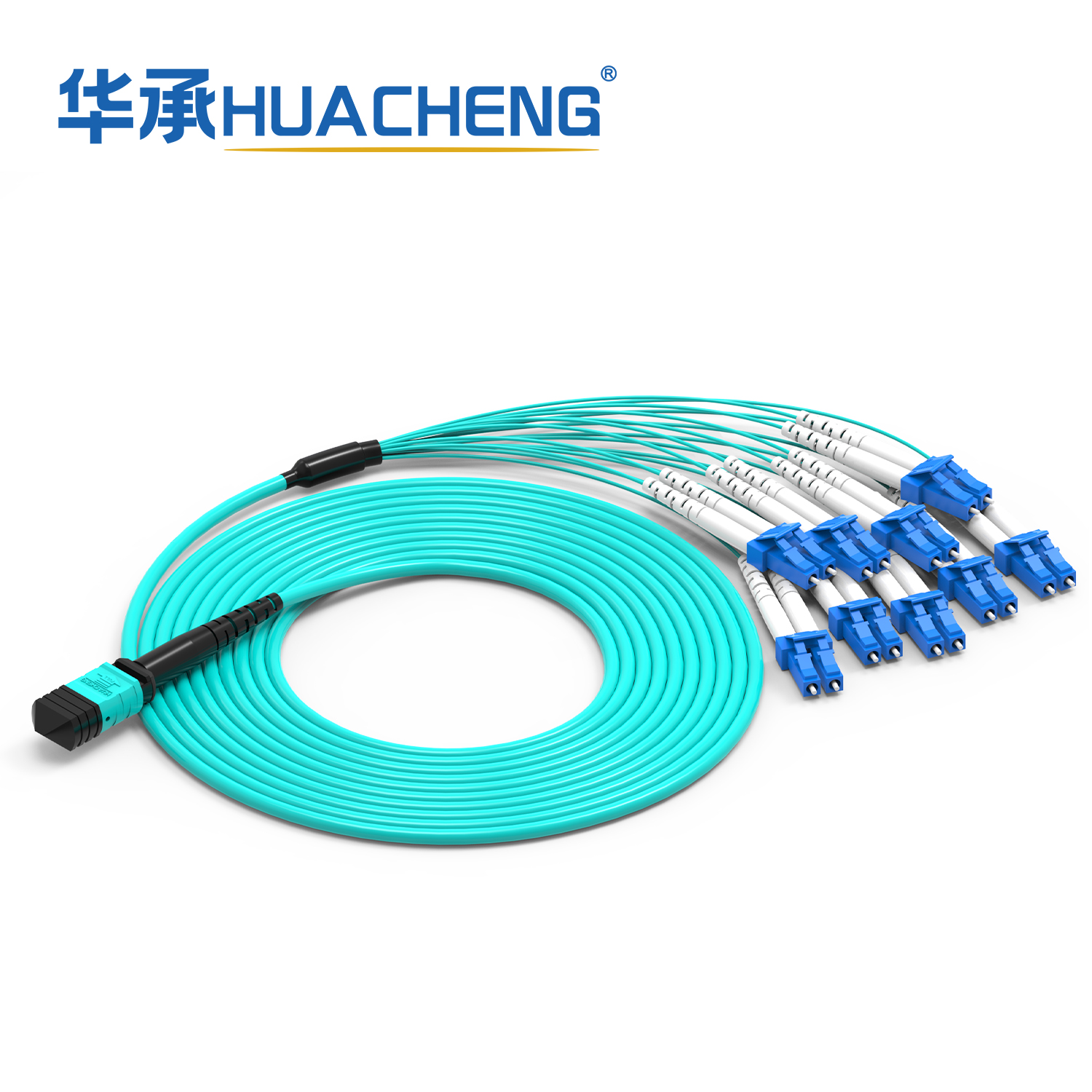

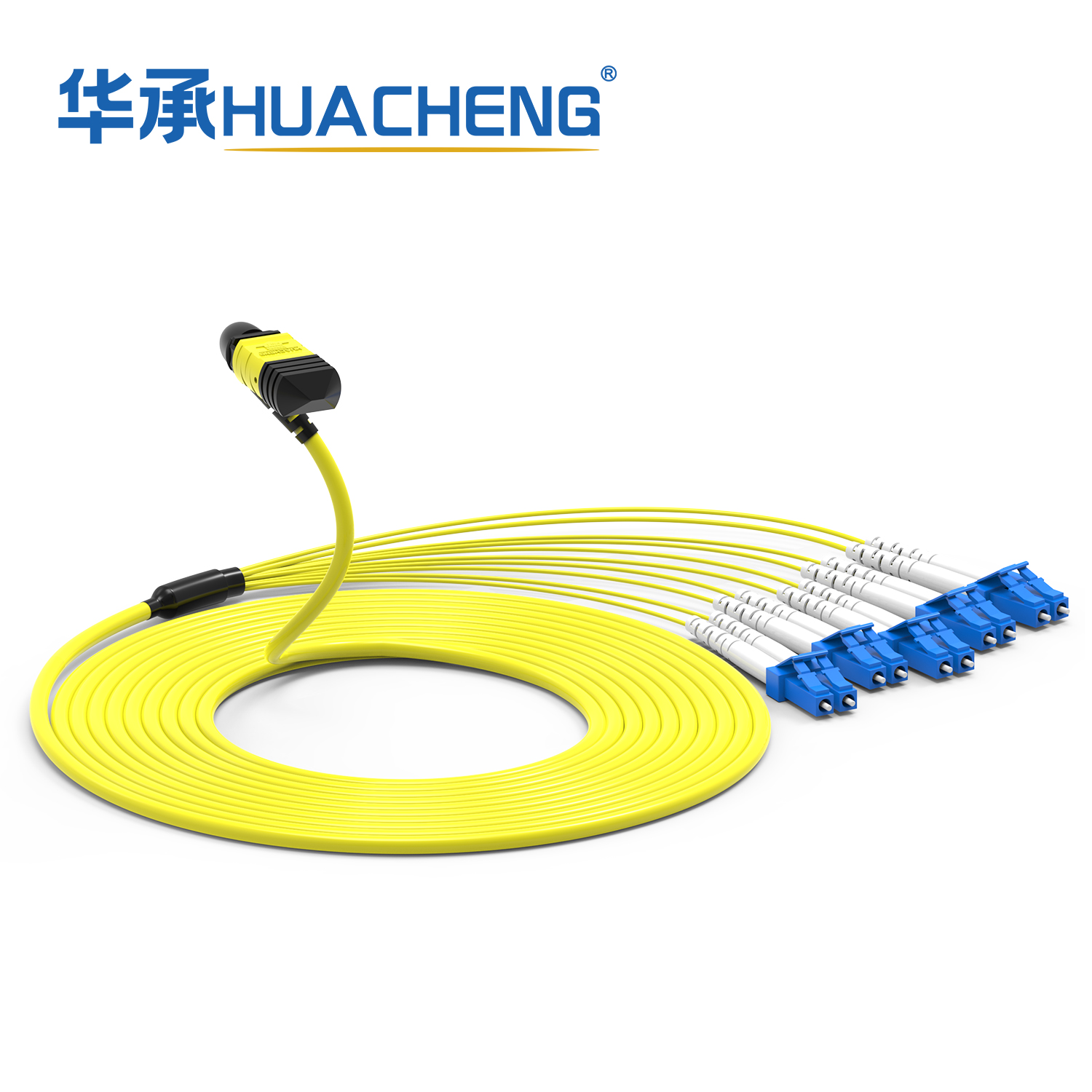

HUACHENG MPO/MTP-LC Sm/Om3/Om4 Breakout Patch Cords

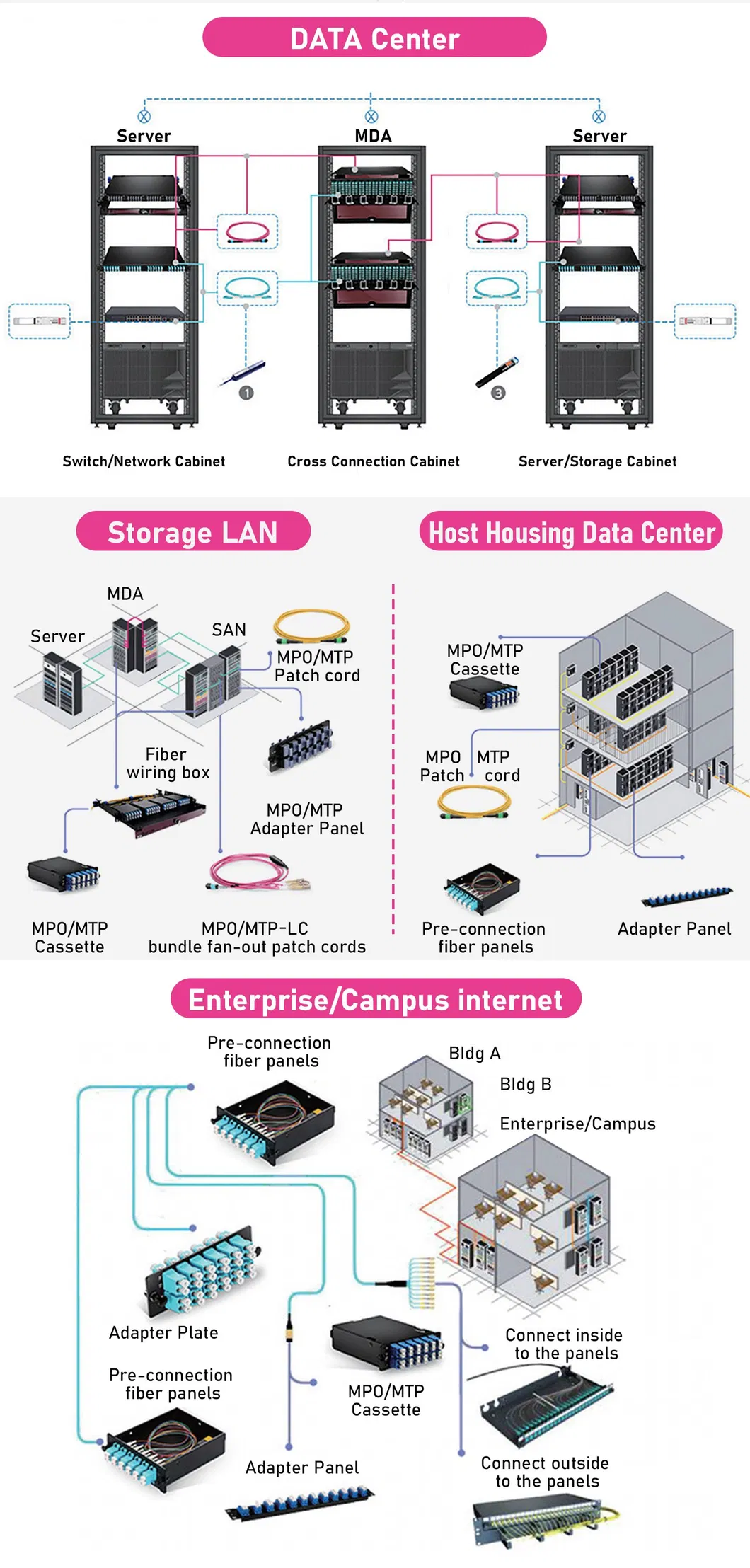

MPO/MTP-LC optical fiber means that one end uses an MPO single-head 12-core or 24-core connector, and the other end uses an LC connector. This product is mainly used in the pre-end module box to connect the jumper between the pre-end trunk optical cable and the equipment, making it modular and plug-and-play.Compared with traditional splicing, it greatly improves the convenience and efficiency of work, the configuration process of fiber networks and minimize installation time and costs in space-constrained environments especially in data center applications.

Characteristic

Use standard high-precision MPO/MTP optical fiber movable connectors andsimplex/duplex LC connectors
100% factory pre-terminated and tested to ensure its transmission performance
Can be quickly configured and networked to reduce on-site installation time
Quickly upgrade and support parallel transmission system applications
100% factory pre-terminated and tested to ensure its transmissionperformance
The length of trunk and branch harnesses can be customized

Availability:



Inquire Add to Basket

Model:
MPO/MTP-LC
Brand:
HUACHENG

Product Description

Technical Characteristics

Items	Description
Connector	MPO(MTP)	LC
Connector Type	Female / Male	UPC / APC
Connector color	OS2: Green OM4/OM3: Aqua	OS2: UPC-Blue ,APC-Green OM4/OM3: Aqua
Fiber Count	4~72 Fibers
Fiber Mode	Single mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm
Fiber Brand	Corning ClearCurve ® multimode fiber and SMF-28® Ultra optical fiber

Optical properties

Type	Unit	Description
Model	--	SM		MM
Polish	(dB)	UPC	APC	UPC	PC
Insertion Loss	(dB)	≤0.3	≤0.3	≤0.3	≤0.3
Return Loss	(dB)	≥50	≥60	≥30	--

MPO Fanout Ordering Information

Fiber Counts	Connector A	Connector B	Loss level	Cable	Fiber Type	Cable Jacket
8 12 24	SM/UPC 12C Female SM/UPC 12C Male SM/APC 12C Female SM/APC 12C Male SM/UPC 24C Female SM/UPC 24C Male SM/APC 24C Female SM/APC 24C Male MM/UPC 12C Female MM/UPC 12C Male MM/UPC 24C Female MM/UPC 24C Male	LC/UPC SM LC/APC SM LC/UPC MM SC/UPC SM SC/APC SM SC/UPC MM FC/UPC SM FC/APC SM FC/UPC MM ST/UPC SM ST/UPC MM	Standard Loss <0.7dB Low Loss <0.35dB	Mini bundle cable Ribbon cable	SM-9/125-G652D SM-9/125-G657A1 SM-9/125-G657A2 MM-62.5/125-OM1 MM-50/125-OM2 MM-50/125-OM3-150 MM-50/125-OM3-550	OFNP OFNR LSZH
