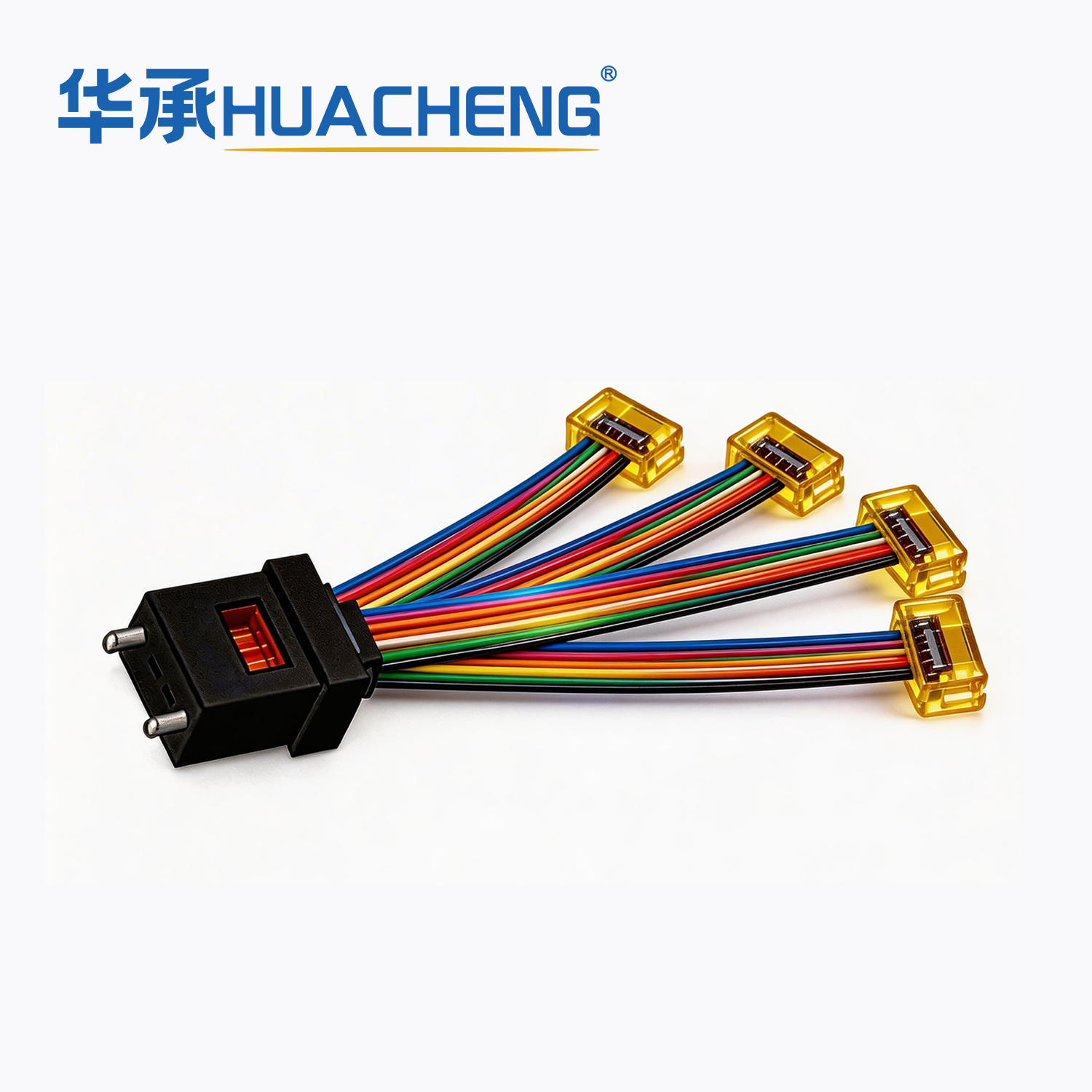

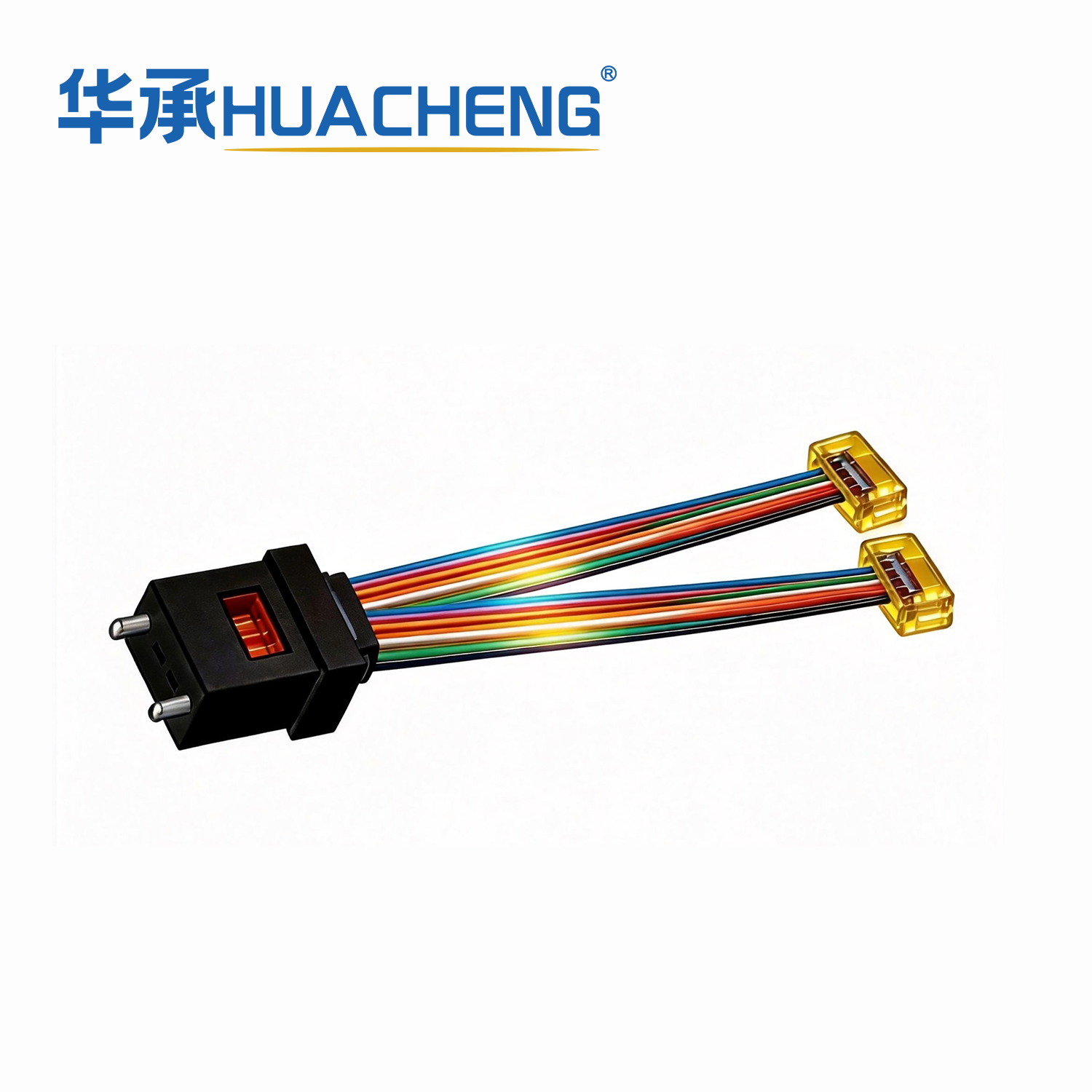

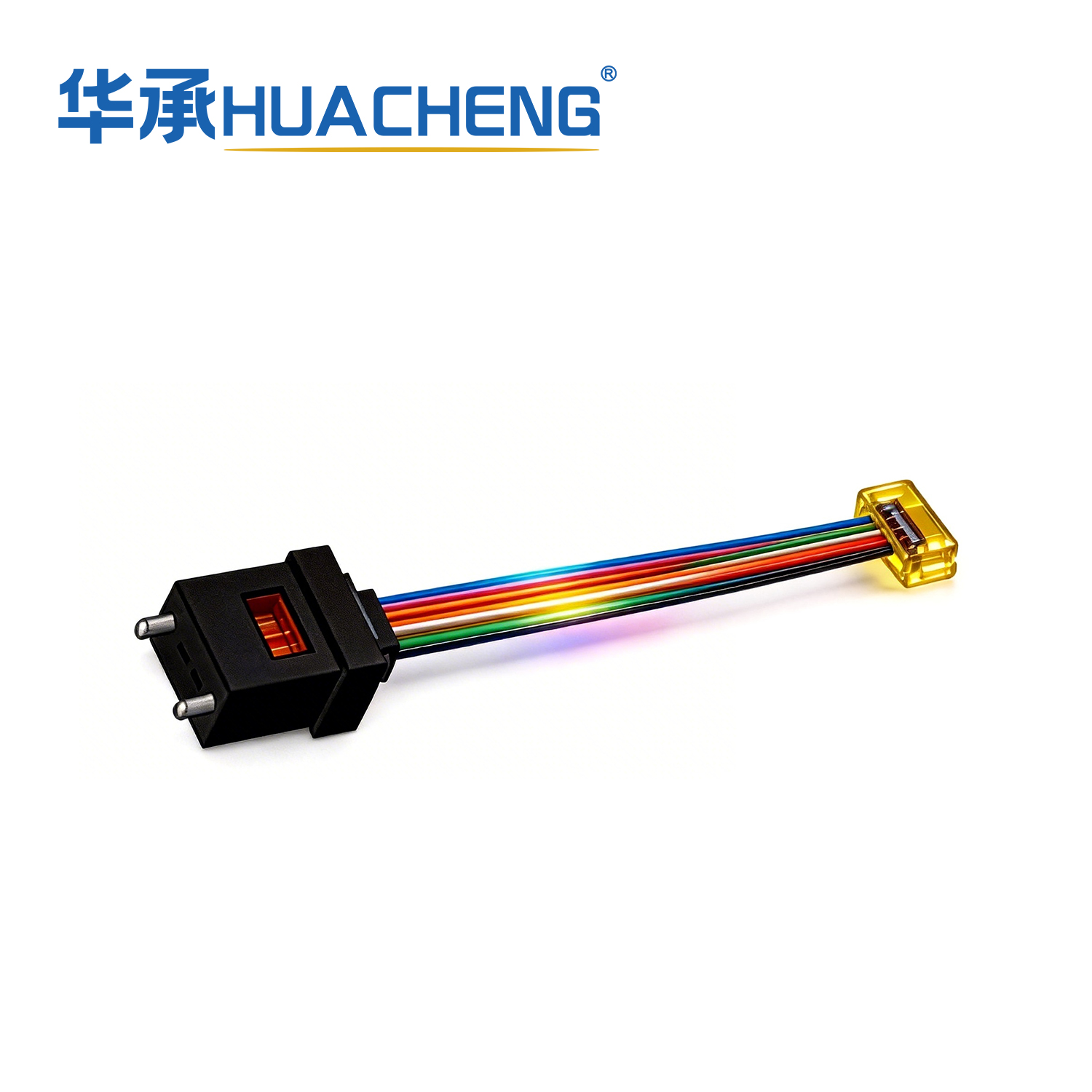

The MT-JUMP FAU is a high-precision multi-fiber interconnection component designed for high-speed optical communication systems, co-packaged optics (CPO), and optical module applications. It features an MT connector on one end and a fiber array (FA) on the other, enabling precise, low-loss coupling between standard MT interfaces and silicon photonic chips, optical engines, or waveguide devices.
Characterisitics
- Supports 4/8/12/24-core fiber configurations, ideal for space-constrained optical modules and data centers.
- Typical insertion loss ≤0.35dB, with high return loss (≥60dB for APC polish), ensuring stable high-speed transmission up to 800G/1.6T.
- 100% factory-terminated and tested to guarantee consistent performance, eliminating on-site termination errors.
- Core pitch accuracy up to ±0.5µm, enabling reliable coupling with silicon photonic waveguides and optical chips.
- Meets IEC 61754, Telcordia GR-1435, and domestic industry standards (YD/T 778, GB 2423.17).
