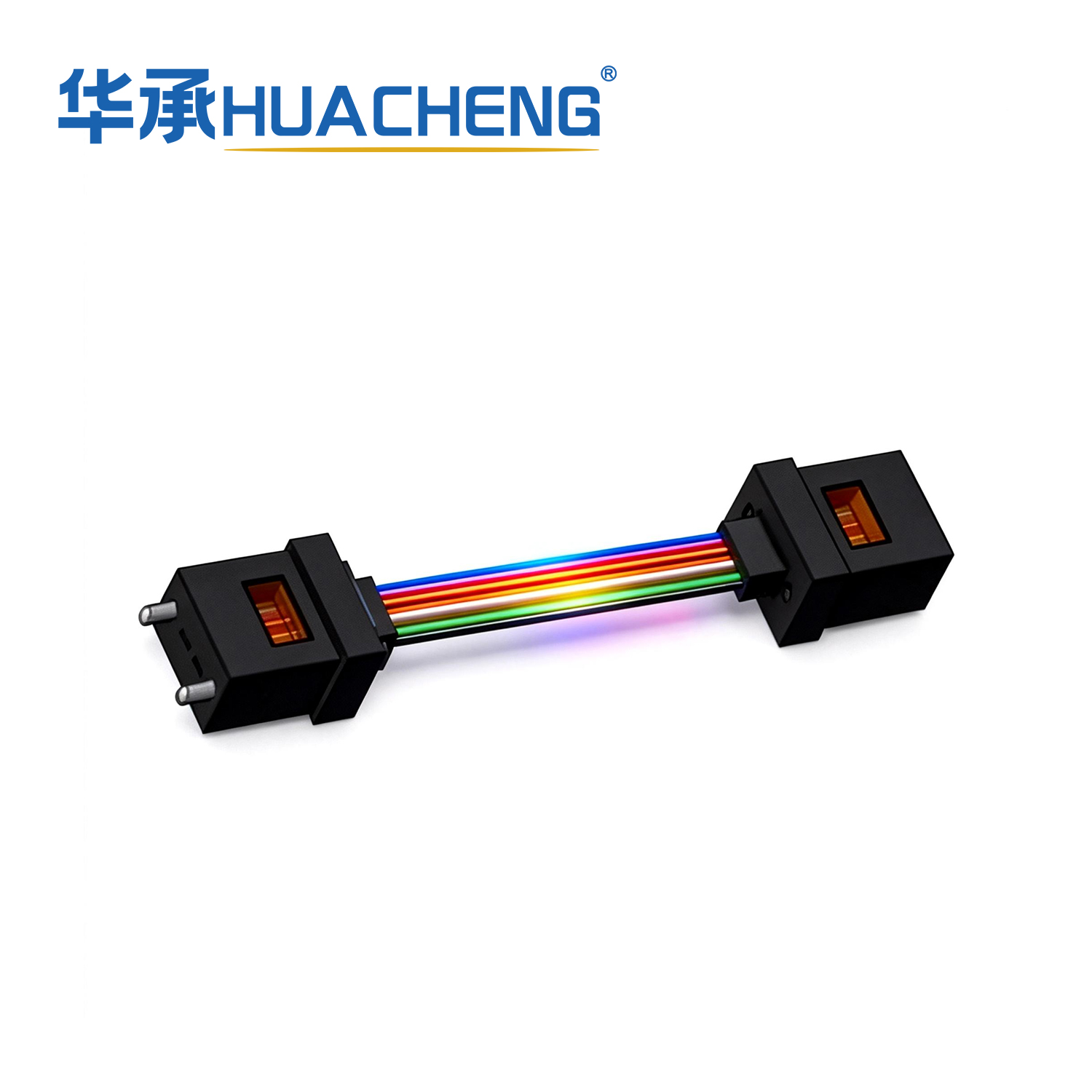

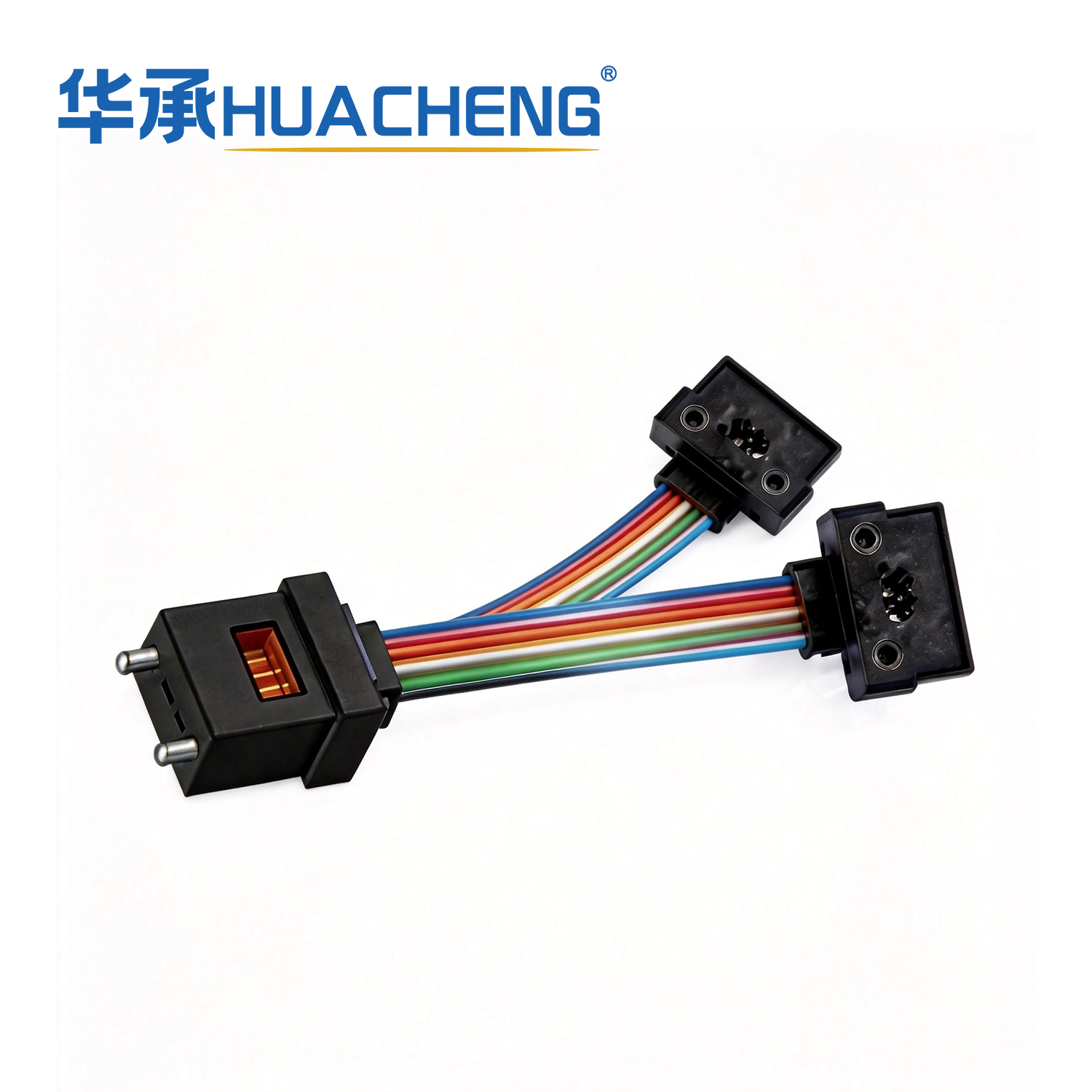

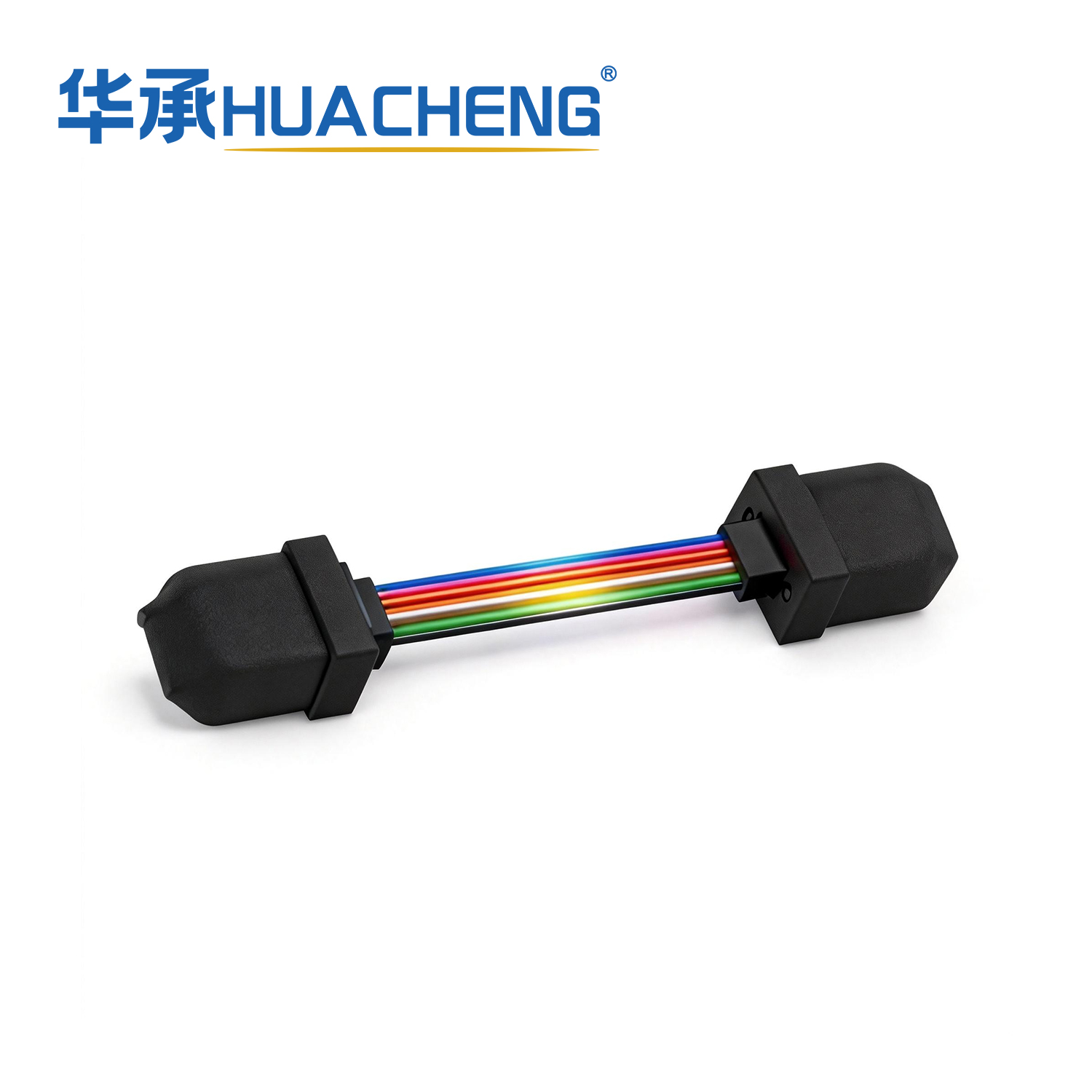

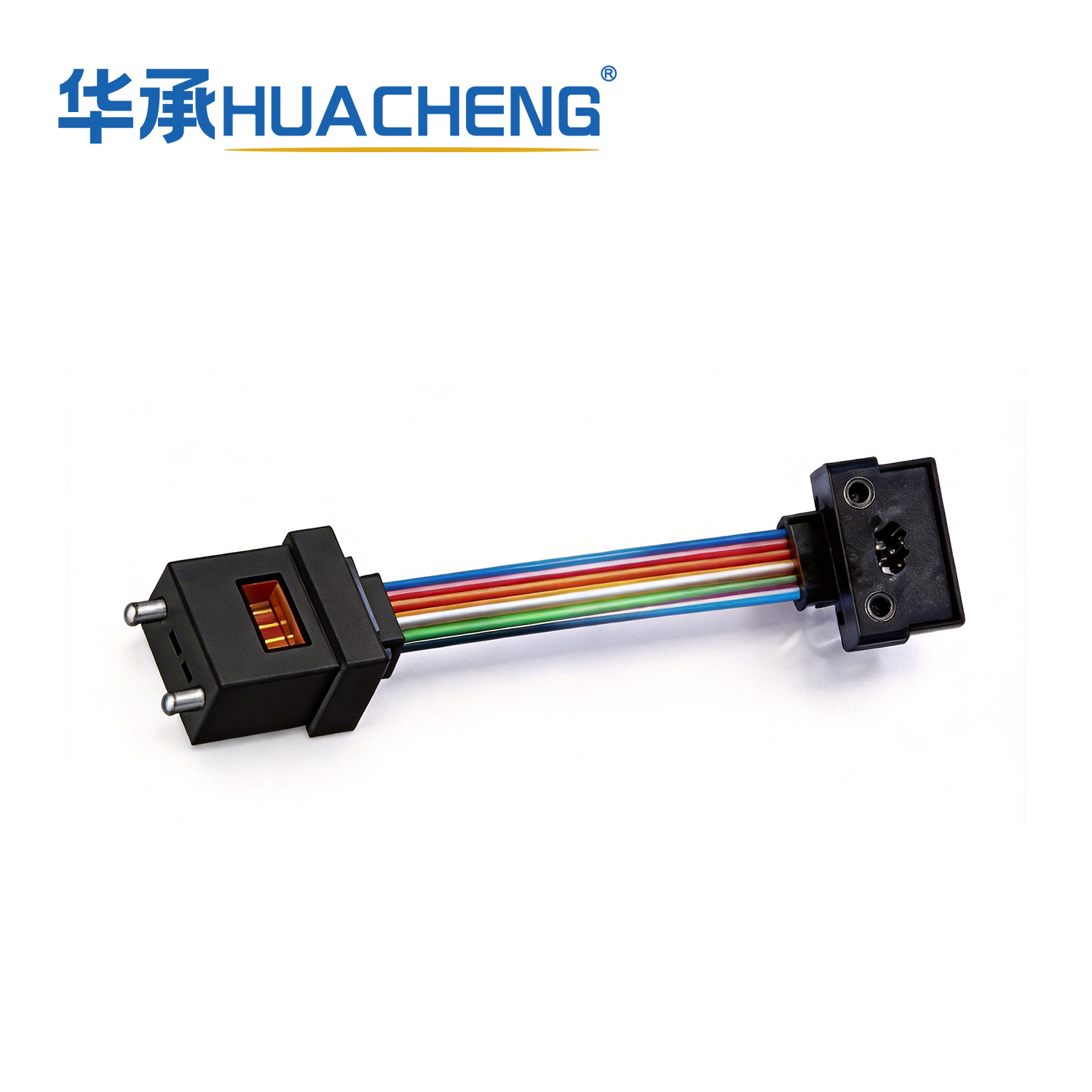

MT-MT FAU is a high-density multi-fiber interconnection jumper designed for high-speed optical communication systems and data centers. It features MT connectors at both ends, enabling low-loss, high-precision parallel optical transmission between MT-interfaced devices, optical modules, or fiber distribution frames.
Characteristics
- Supports 4/8/12/24-core configurations, maximizing port density in limited rack space.
- Typical insertion loss ≤0.35dB, with high return loss (≥60dB for APC polish), ensuring stable transmission for 40G/100G/400G/800G high-speed links.
- 100% factory-terminated and tested to guarantee consistent performance, eliminating on-site installation errors.
- MT connector core pitch accuracy up to ±0.5µm, ensuring reliable repeated mating and stable coupling.
- Meets IEC 61754, Telcordia GR-1435, and domestic industry standards (YD/T 778, GB 2423.17).
