HUACHENG TB Cable, Interconnect, Tight Buffered, 2F, OM3, Riser, 2.0

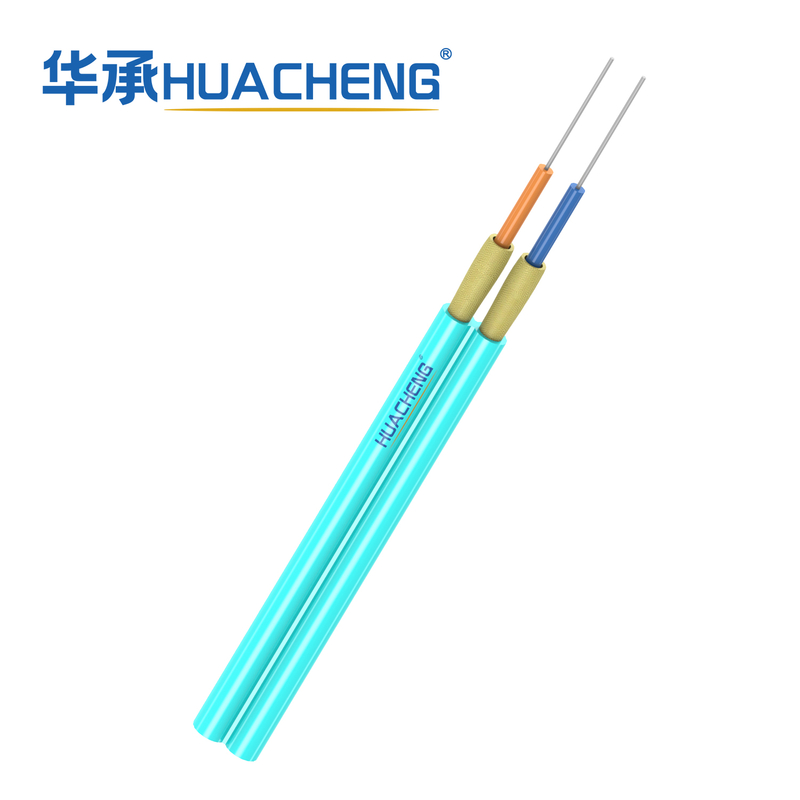

HUACHENG Interconnect single-fiber tight buffered cables are built with a single 900μm tight buffered optical fiber inside a fire-resistant outer sheath. This cable series comes with LSZH, Riser-rated and Plenum-rated types to meet different indoor fire safety and installation standards. The two-fiber duplex type adopts a common zipcord design. Besides the standard 900μm tight buffered fiber, 600μm tight buffered fiber is also available to fit different usage needs. Both single-mode and multimode fibers used in the cables are bend-resistant, which greatly reduces signal loss when the cable is bent or twisted during installation.
This tight buffered cable is easy to install and terminate with single-fiber connectors, enabling quick and stable network jumper connections for indoor cabling systems.

Availability:



Inquire Add to Basket

Model:
TB Cable
Brand:
HUACHENG
Gender:
Male
Fiber Type:
SM
Loss Type:
Standard Loss
Fiber Category:
OM3
Flame Rating:
Riser (OFNR)

Specification

Downloads

General

Cable Categories	Indoor
Cable Type	Tight Buffered, Non-armored
Fiber Type	Bend Insensetivie MultiMode, 50/250um, OM3
Fiber Count	2
Flame Rating	Riser (OFNR)
Application	Interconnect

Environmental Specifications

Operating Temperature	-20°C ~ 70°C
Installation Temperature	-10°C ~ 60°C
Storage and Shipping Temperature	-40°C ~ 70°C

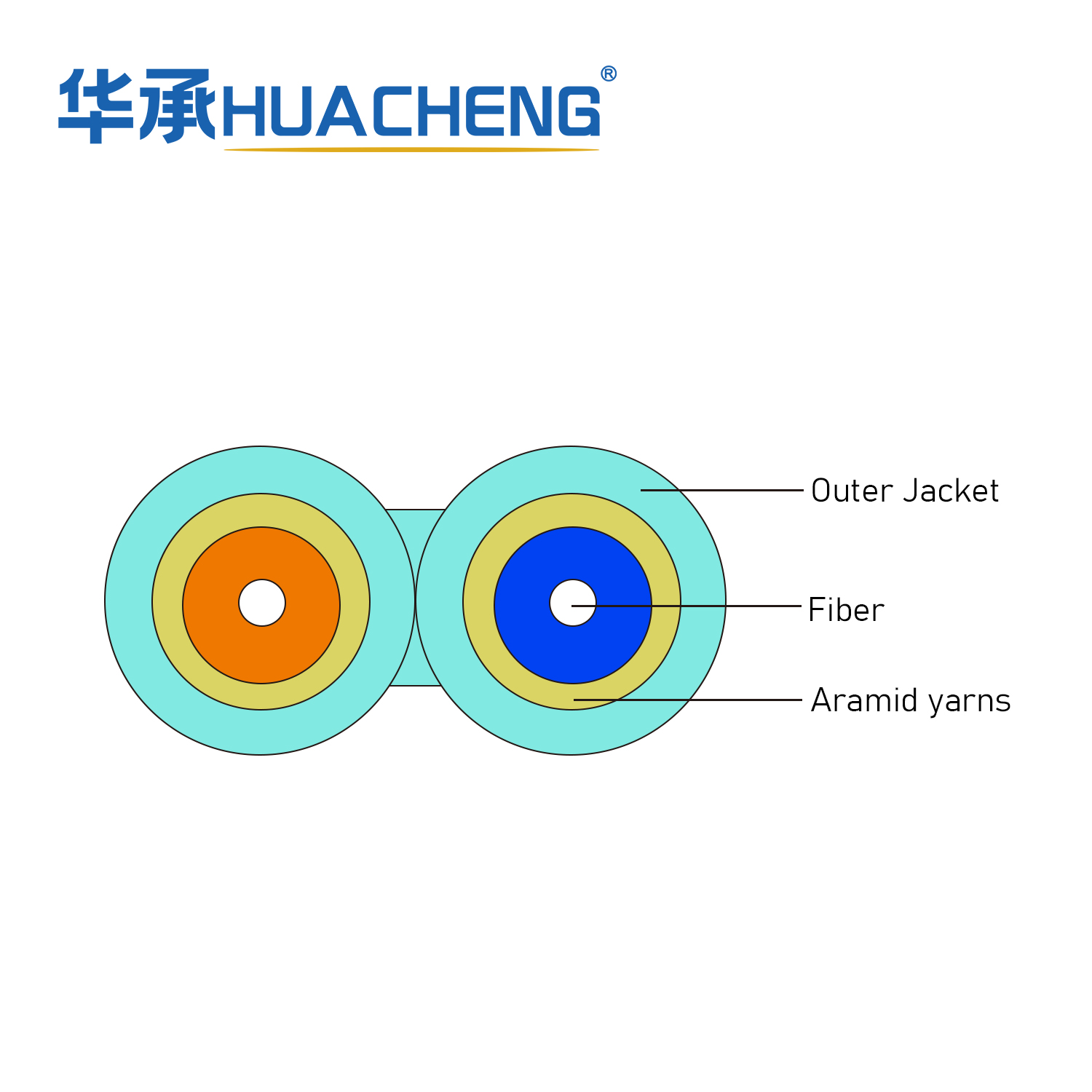

Cable Structure

Cable Type	900um, Tight Buffered, Zipcord
Outer Diameter, Jacket	2.0 mm*2
Color, Outer Jacket	Aqua
Tensile Strength Elements	Aramid Yarns

Mechanical Specifications

Max. Tensile Strength, Short-Term	100 N
Max. Tensile Strength, Long-Term	30 N
Max. Crush Strength, Short-Term	35 N/cm
Min. Bend Radius Installation	30 mm
Min. Bend Radius Operation	20 mm

Optical Specifications, Cabling

Maximum Attenuation	2.8 dB/km / 1.0 dB/km
Wavelengths	850 nm / 1300 nm
Fiber Compliance	IEC 60793-2-10
Minimum Effective Modal Bandwidth (EMB)	2000 MHz*km @850nm
Min. Overfilled Launch (OFL) Bandwidth	1500 MHz*km @850nm
Max. Macro Loss, 7.5mm Mandrel Radius, 2 Turn	0.2 dB @850nm (Uncabled)
Max. Macro Loss, 15mm Mandrel Radius, 2 Turn	0.1 dB @850nm (Uncabled)

Standards

Cable Qualification Standards	ANSI/ICEA S-83-596, Telcordia GR-409-CORE, IEC 60794-2-20
Flame Rating Standards	UL-1666
RoHS	Compliant with 2011/65/EU and (EU) 2015/863
