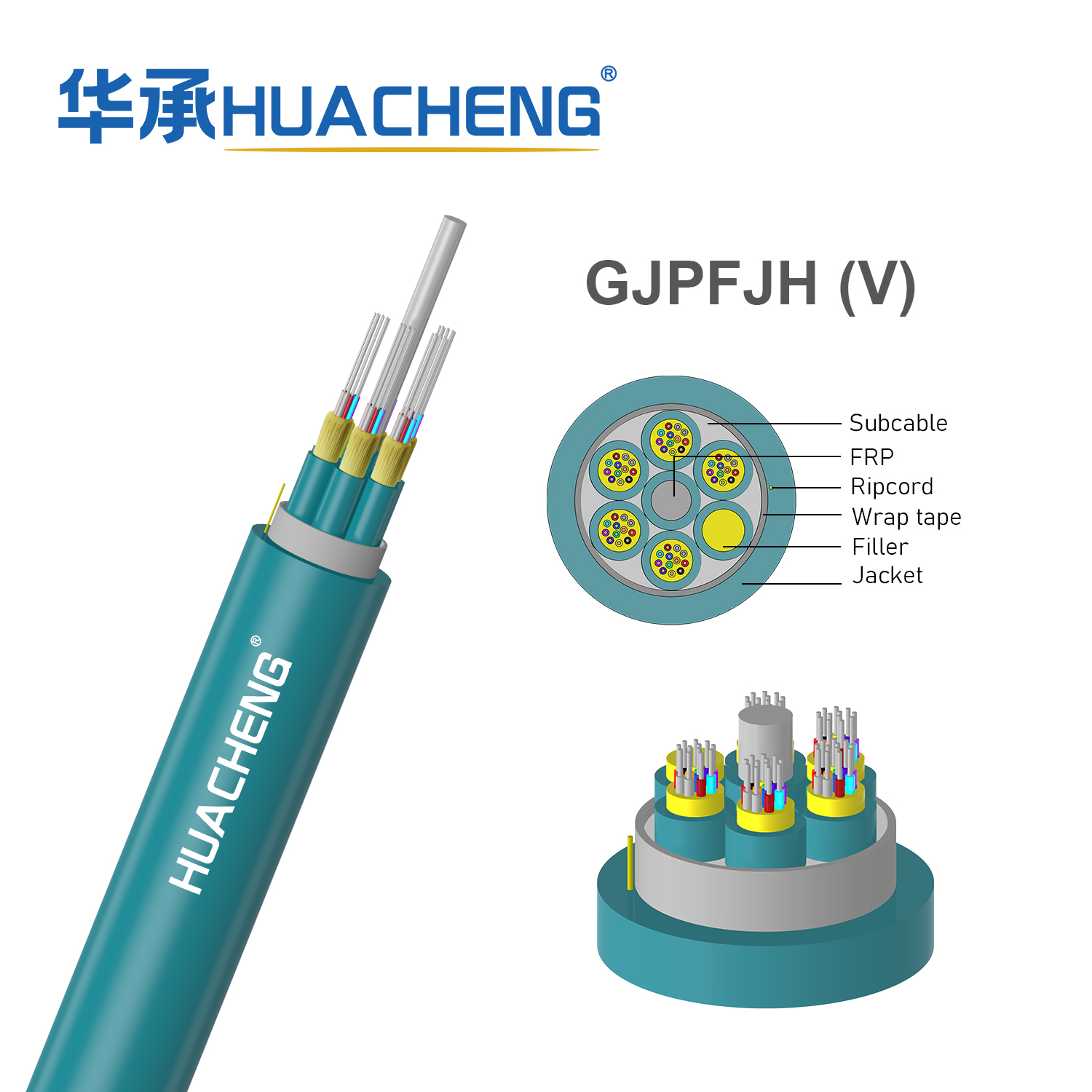

HUACHENG Multi-Core Layer Cabling Indoor Optical Cable

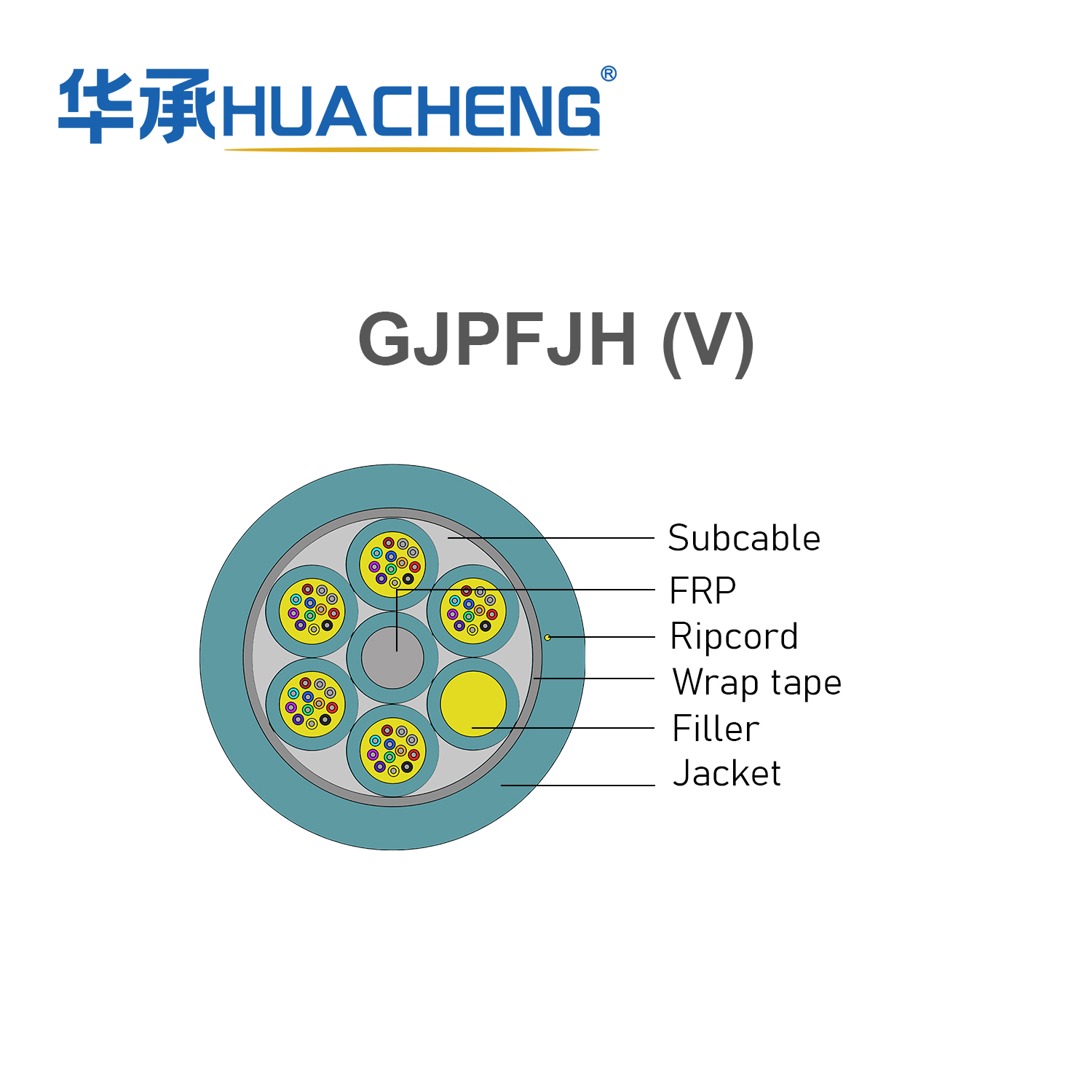

Huacheng multi-core (36~144)1ayer cabling indoor cable is composed of a number of non-dielectric reinforced materials and halogen-free flame
rrtardant outer sheath of 6 core or 12 core compact cable.this kind of cable is suitable for indoor wiring and optical transmission equipment inside and outside the link.
Characteristics
  • Adopting tight fitting optical fibers with good peelability
  • Good flame retardantperformance
  • Aramid reinforcement components provide excellent tensile strength to optical cables
  • External protection material corrosion resistance,waterproof,UV protection,flame retardant,environmental protection and other advantages
Sheath Color:
Yellow
Orange
Water Green OM3
Rose Red OM4
Green OM5
Availability:
Inquire Add to Basket

  • GJPFJH (V)

  • HUACHENG

Product Features

Fiber Optic Cable Performance Parameters

Tensile Strength Crush Strength Bending Radius
Long Term (N) Short Term (N) Long Term (N/100mm) Short Term (N/100mm) Dynamic Static
400 1320 300 1000 20D 10D


Fiber Optic Cable Structural Parameters

Cable code Nominal Weight (kg) Cable Diameter (mm) Wall Thickness (mm)
GJPFJH(V)-36Xn 139 13.4 1.2
GJPFJH(V)-48Xn 196 16.2 1.2
GJPFJH(V)-60Xn 229 16.5 1.2
GJPFJH(V)-72Xn 276 17.9 1.2
GJPFJH(V)-96Xn 393 21.0 1.2
GJPFJH(V)-144Xn 426 25.0 1.2


Product Features
