HUACHENG INDOOR BUNDLE CABLE

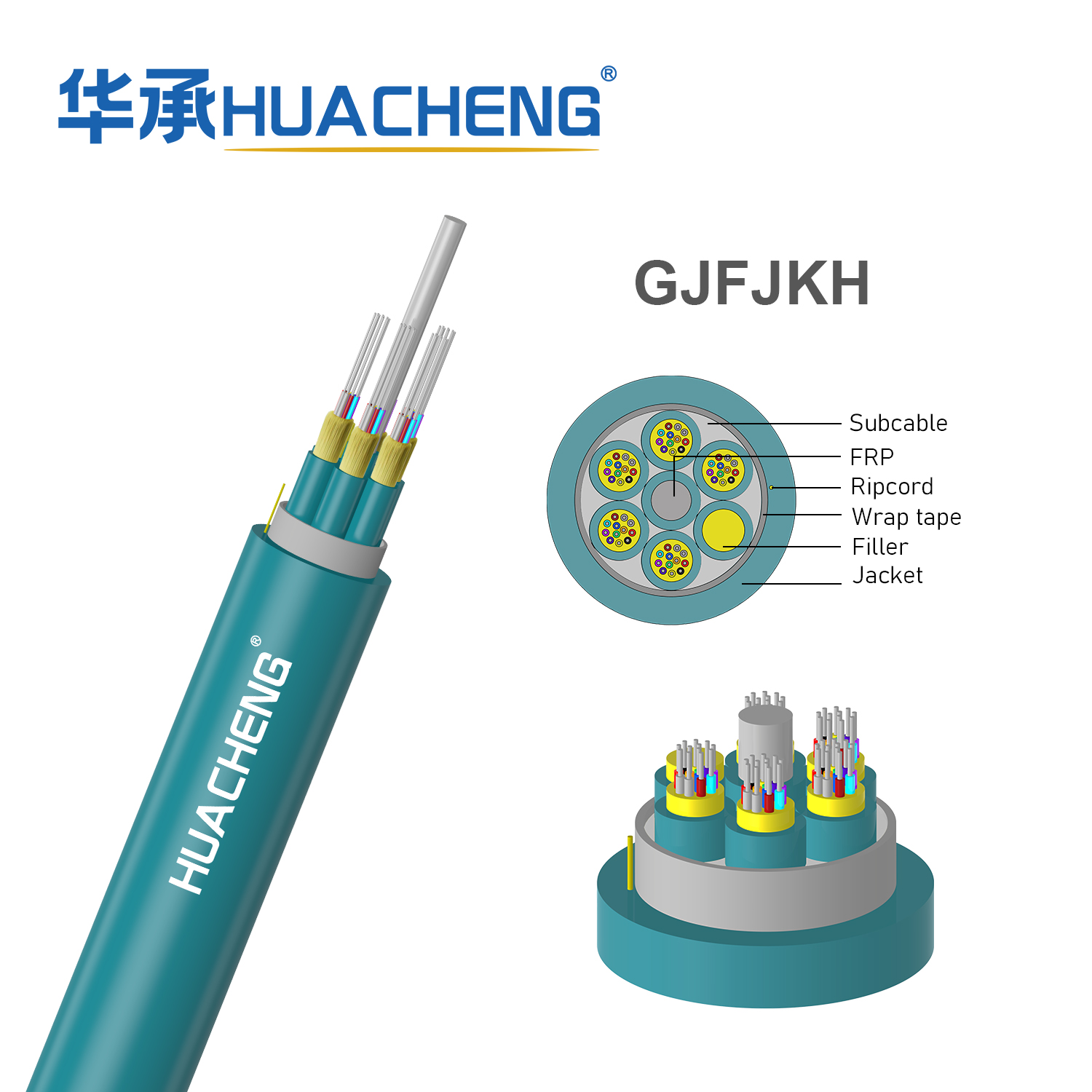

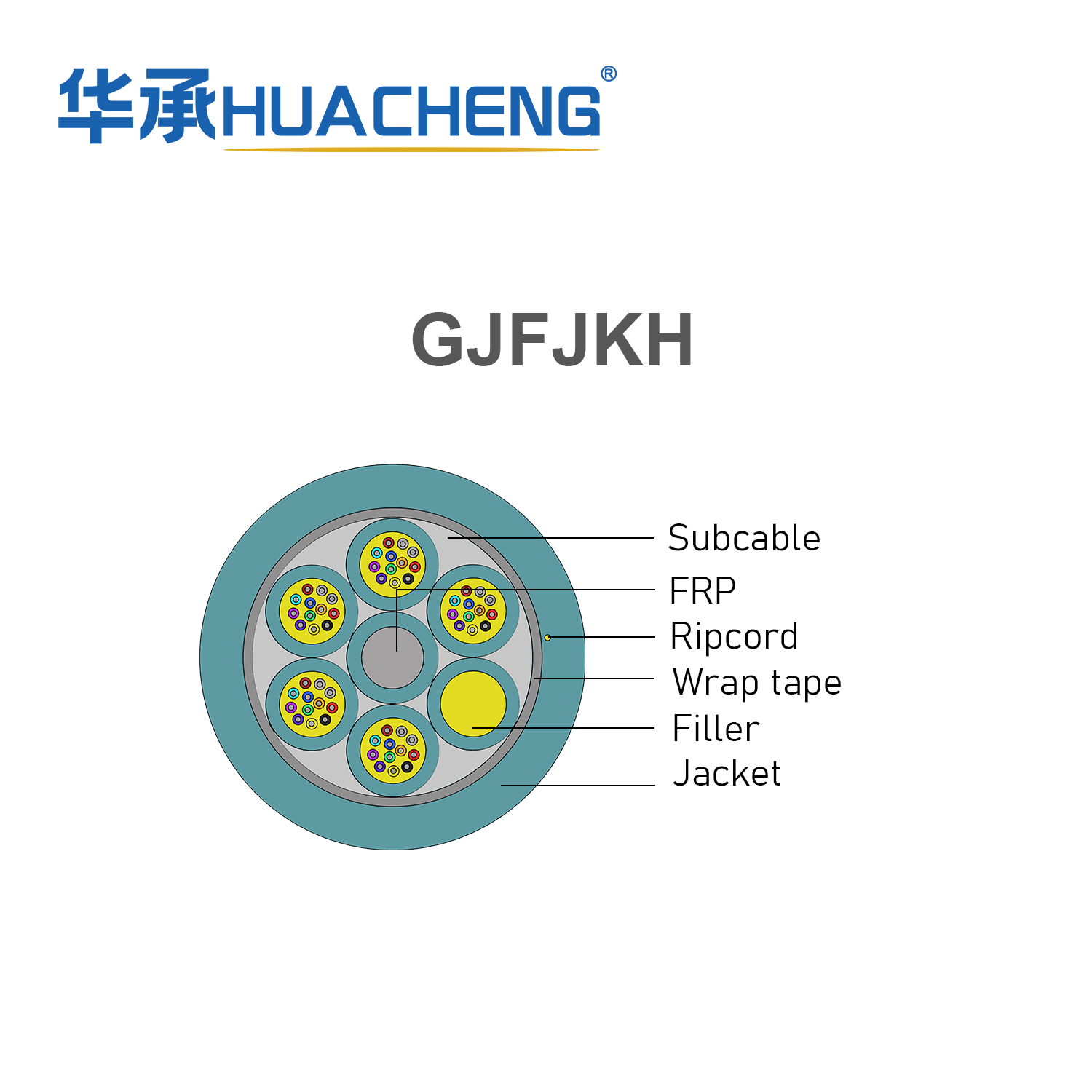

Huacheng indoor armored optical cable features low attenuation and stable signal transmission. It contains up to 12 cores of colored optical fibers, reinforced with a spiral stainless steel tube and water-resistant aramid yarn, and is sheathed in a flame-retardant, low-smoke, halogen-free jacket.
Characteristics
•Colored optical fibers for high integrationColored optical fibers for high integration
•Aramid fiber reinforcement provides the cable with excellent tensile performance
•Stainless steel spiral tube for crush resistance and rodent protection
•The outer sheath material offers corrosion resistance, waterproofing, UV protection, flame retardancy, and environmental friendliness
Sheath Color:
Yellow
Orange
Water Green OM3
Rose Red OM4
Green OM5
Availability:
Inquire Add to Basket

  • GJFJKH

  • HUACHENG

Product Features

Fiber Optic Cable Performance Parameters

Tensile Strength Crush Strength Bending Radius
Long Term (N) Short Term (N) Long Term (N/100mm) Short Term (N/100mm) Dynamic Static
120 440 1000 3000 20D 10D
120
 440 1000 3000 20D 10D


Fiber Optic Cable Structural Parameters

Cable code Nominal Weight (kg) Cable Diameter (mm) Wall Thickness (mm)
GJFJKH-2Xn 22 5 0.5
GJFJKH-4Xn 24 5.4 0.5


Product Features
Inquire
